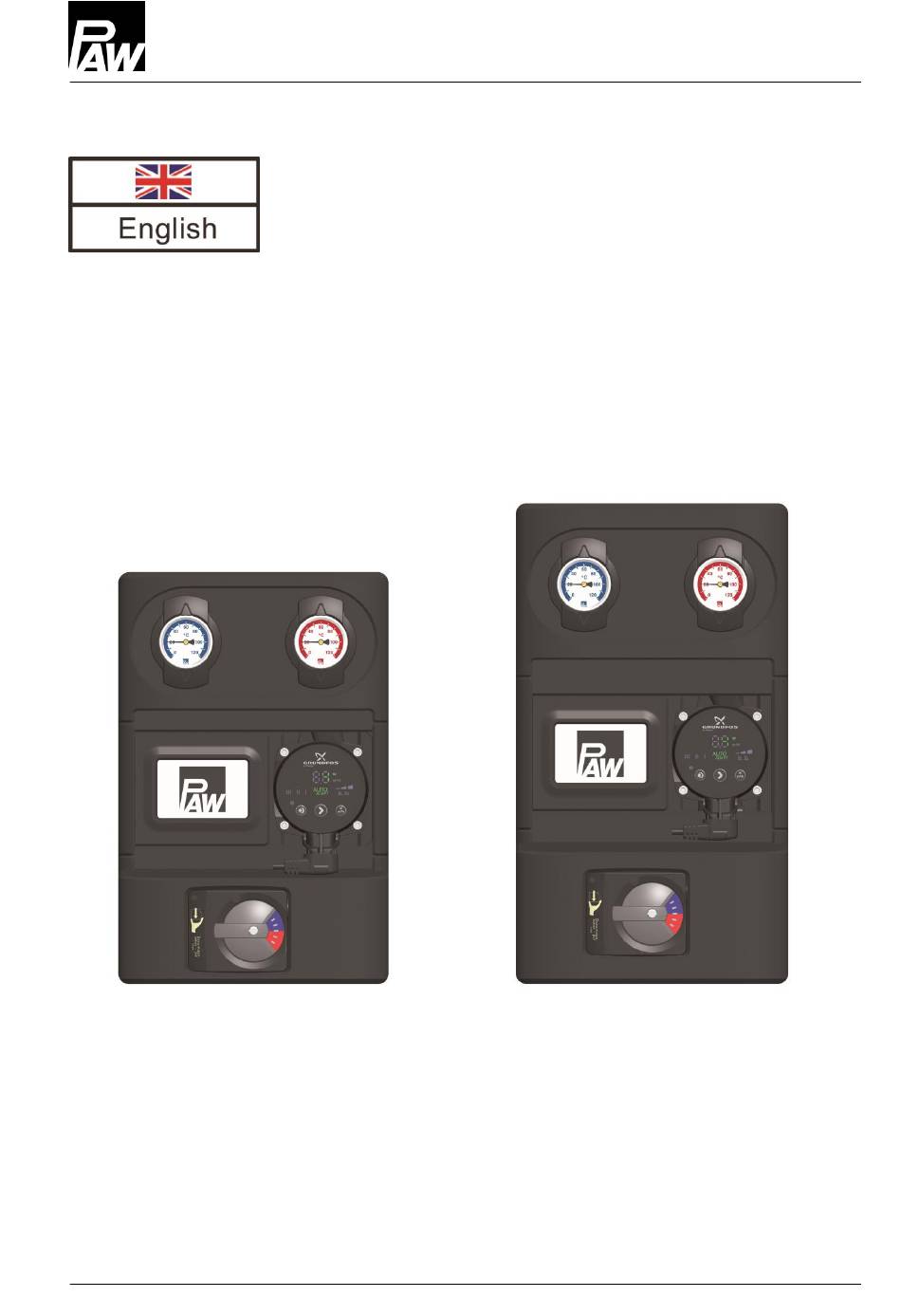

  • Page 1 PAW GmbH & Co. KG Böcklerstr. 11, D-31789 Hameln, Germany Phone: +49-5151-9856-0, Fax: +49-5151-9856-98 E-mail: info@paw.eu, Web: www.paw.eu Installation and Operation Instructions HeatBloC K34 DN 25 / DN 32 DN 25 DN 32 2017/01 993x063x-mub-en – V01...
  • Page 2 Translation of the original instructions PAW GmbH & Co. KG We reserve the right to make technical changes without notice! Böcklerstraße 11 Printed in Germany – Copyright by PAW GmbH & Co. KG 31789 Hameln, Germany 993x063x-mub-en – V01 2017/01...
  • Page 3: Table Of Contents

    1 General Information Contents General Information ......................4 Scope of these instructions ..................4 Designated use ......................4 Safety instructions ......................5 Product description ......................6 Equipment ........................6 Function ........................7 3.2.1 Check valve and non-return valve ................. 8 3.2.2 Pump [specialist] ....................
  • Page 4: General Information

    These instructions describe the installation, commissioning, function and the operation of the mixed HeatBloC K34 DN 25 and DN 32. For other components of the installation, such as the pump, the controller or the modular distribution manifold, please observe the instructions of the corresponding manufacturer.
  • Page 5: Safety Instructions

    2 Safety instructions 2 Safety instructions The installation and commissioning as well as the connection of electrical components require technical knowledge commensurate with a recognised vocational qualification as a fitter for plumbing, heating and air conditioning technology, or a profession requiring a comparable level of knowledge [specialist].
  • Page 6: Product Description

    The pump can thus be maintained easily without draining the heating circuit. The HeatBloC is designed such that it can be directly mounted onto a PAW distribution manifold or a mounting plate.
  • Page 7: Function

    3 Product description 3.2 Function K34 3-way mixing valve with bypass 0-50 % The flow temperature of the heating circuit is controlled by the integrated mixing valve. Hot water from the boiler and cold return water are mixed to obtain the desired flow temperature. The mixing valve is adjusted via an external controller in combination with the electric actuator.
  • Page 8: Check Valve And Non-Return Valve

    3 Product description 3.2.1 Check valve and non-return valve The HeatBloC is equipped with a check valve (D-1, opening pressure 200 mm wc) in the return pipe and with a non-return valve (C-3, opening pressure 50 mm wc) in the return of the mixing valve.
  • Page 9: Pump [Specialist]

    3 Product description 3.2.2 Pump [specialist] The pump can be completely isolated. It can be replaced and maintained without draining the heating installation. Isolation of the pump: 1. Disconnect the expansion tank from the installation. 2. Close the ball valves in the flow and the return (A-2, F-2). 3.
  • Page 10 3 Product description 1. During commissioning, determine the optimum bypass position for the operation of the installation through a trial-and-error process. If the slot of the bypass screw is in a vertical position, the bypass is closed. If the slot of the bypass screw is in a horizontal position, the bypass is completely open.
  • Page 11 3 Product description Change of the flow line [specialist] Dismounting the mixing valve 1. Take off the thermometer handles (A-2, F-2) and remove the insulating front shell. 2. Take the group of fittings out of the insulating back shell. 3. Dismount the mixing valve (C). Conversion of the mixing valve 1.
  • Page 12 Mixing valve with flow on the right Mixing valve with flow on the left 12. Turn the cover plate (4) such that the marking PAW is at the bottom and that the scale is positioned as shown on the figure above.
  • Page 13: Accessories: Actuator (Optional)

    3 Product description 3.3 Accessories: Actuator (optional) The PAW actuator for weather-compensated control is available as an accessory. For mixing valves with flow on the left, the scale must be turned by 180°. Fig. 1 Fig. 2 blue blue for mixing valve with flow on the right...
  • Page 14: Assembly And Installation [Specialist]

    4 Assembly and installation [specialist] 4 Assembly and installation [specialist] The HeatBloC K34 can be mounted on a PAW modular distribution manifold or on a wall bracket. The modular distribution manifold and the wall bracket are optional accessories and are thus not included in the scope of delivery.
  • Page 15 4 Assembly and installation [specialist] Option 2: Option 3:   on a mounting plate with directly on a wall bracket transition thread connections. Consumer circuit Flow Return Return Flow Return Flow Return Flow Heat generator Please observe the separate and respectively corresponding instructions regarding the installation of the distribution manifold, of the mounting plate and of the wall bracket.
  • Page 16 HeatBloC. 2. Unscrew the nuts on the lower connections of the HeatBloC and take out the sealing rings. If PAW modular distribution manifold or transition connection is used: 3. Put the two nuts over the flanges. Flange (side view) 4.
  • Page 17: Accessories: Cutting-Ring Compression Fitting (Not Included In The Scope Of Delivery)

    5 Scope of delivery [specialist] 4.2 Accessories: Cutting-ring compression fitting (not included in the scope of delivery) The connection to the heating installation can be carried out fast, pressure-proof and without soldering if you use the optionally available compression fittings. 1.
  • Page 18: Spare Parts Dn 25

    5 Scope of delivery [specialist] 5.1 Spare parts DN 25 Item no. heating circuit* Pump Item no. 36063(M)WY6 Wilo-Yonos PARA RS 25/6-RKA E1236046 < 0.20 36063(M)WY8 Wilo-Yonos PARA RS 25/7.5-RKA E1236048 < 0.21 36063(M)WH6 Wilo-Stratos PICO 25/1-6 E1239625 < 0.20 36063(M)GL9 Grundfos UPML 25-95 Auto E121394...
  • Page 19: Spare Parts Dn 32

    5 Scope of delivery [specialist] 5.2 Spare parts DN 32 Item no. heating circuit* Pump Item no. 39063(M)WY6 Wilo-Yonos PARA RS 30/6-RKA E1236056 < 0.20 39063(M)WH6 Wilo-Stratos PICO 30/1-6 E1239630 < 0.20 39063(M)WY10 Wilo-Yonos PARA HF 30/0.5-10 E12361510 < 0.20 39063(M)GM6 Grundfos UPM3 Auto L 32-70 PP3 E1212560...
  • Page 20: Technical Data

    6 Technical data 6 Technical data DN 25 (1") DN 32 (1¼" Dimensions Centre distance (1) 125 mm 125 mm Width insulation (2) 250 mm 250 mm Height insulation (3) 383 mm 441 mm Installation length (4) 340 mm 400 mm Connections Outlet (A-1, F-1) 1"...
  • Page 21: Pressure Drop And Pump Characteristic Curves Dn 25

    6 Technical data DN 25 (1") DN 32 (1¼") Hydraulics Maximum pressure 6 bars 6 bars Maximum temperature 110 °C 110 °C value [m 10.1 6.1 Pressure drop and pump characteristic curves DN 25 Flow rate [l/h] 6.2 Pressure drop and pump characteristic curves DN 32 Flow rate [l/h] 2017/01 993x063x-mub-en –...
  • Page 22 6 Technical data 993x063x-mub-en – V01 2017/01...
  • Page 23 6 Technical data 2017/01 993x063x-mub-en – V01...
  • Page 24 PAW GmbH & Co. KG www.paw.eu Böcklerstraße 11 Phone: +49 (0) 5151 9856 - 0 D-31789 Hameln, Germany Fax: +49 (0) 5151 9856 - 98 993x063x-mub-en – V01 2017/01...
