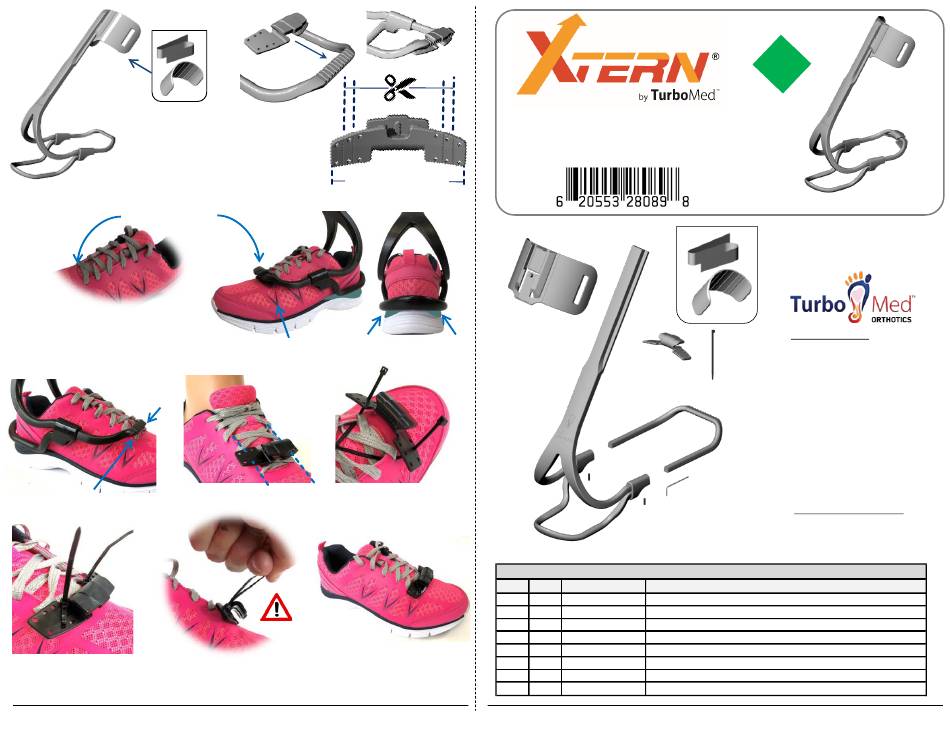

TurboMed XTERN Assembly & Instruction Manual

11
INSTALL CALF PAD & STRAP KIT
(INSTRUCTIONS IN THE BAG)
BRACE WIDTH CAN BE
ADJUSTED WIDER OR
NARROWER FOR BETTER LOOK
& FIT ON PATIENT SHOE.
(SEE THERMOFORMING GUIDELINE IF REQUIRED)
13
- EASY FITTING SHOES FOR FIRST TRIAL – SNEAKERS – TENNIS SHOES
ENOUGH EYELETS
WE RECOMMEND STABLE SHOES WITH FIRM
HEELCAP, ROBUST FABRIC AND FITTED WITH RIDGES
ON SOLE CONTOUR TO HOLD THE BRACE IN PLACE.
AVOID MINIMALIST SHOES WITH VERY LIGHT
FABRIC AND THIN SOLE.
14
ASK PATIENT TO DON THE SHOE
LOOK FOR EYELETS POSITION.
17
18
TIGHTEN TIE-WRAPS AT MAXIMUM
LOCK TIE-WRAPS IN REAR
VERY STRONG FIXATION IS IMPORTANT!
CORNERS OR BEST FIT POSITION.
PULL FIRMLY ON LACE CLIP AND VALIDATE IT'S
p.4
SOLIDLY ANCHORED AND BONDED TO THE SHOE.
www.turbomedorthotics.com
12
F
D
CUT IF REQUIRED
WIDE BOOTS – FULL WIDTH
-
ROBUST FABRIC BULKY SOLE+RIDGES
FOR HEEL FRICTION GRIP
15
INSTALL TIE-WRAPS IN EYELETS.
& SELECT WIDTH FOR HOLES. NEVER ATTACH AROUND THE LACES!
19
HOOK THE BRACE ON THE SHOE
AND YOU'RE READY FOR ACTION!
SEE LACE CLIP FITTING LEAFLET
FOR MORE FOOTWEAR OPTIONS.
(VIDEOS TUTORIALS AVAILABLE
ON YOUTUBE & OUR WEBSITE)
ASSEMBLY INSTRUCTIONS
XTERN SEMI-ASSEMBLED ORTHOTIC KIT
SIZE MEDIUM (100100-SA-M)
C
16
A
PARTS LIST - XTERN ORTHOTIC KIT, SIZE MEDIUM (100100-SA-M)
Item Qty
A 1 200000-BA0-M
B 1 200000-U00-ML
C 1 200000-C00-ML
D 5 200000-L00-ML
E 3 700000-SET-002
F 1 500301-K00-SML
G 20 700000-ZZZ-001
H 1 700000-HEX-001
www.turbomedorthotics.com
T: 1-888-778-8726
SHOE SIZE 7.5 US -> 10.5 US Men
F
D
G
B
E
H
E
PRODUCT CODE DESCRIPTION
MAIN BRACE BODY ASSEMBLY, SIZE MEDIUM
FRONT SHOE SECTION «U» SHAPE, SIZE MEDIUM-LARGE
PLASTIC CALF SECTION, SIZE MEDIUM-LARGE
LACE CLIP ATTACHMENT, SIZE MEDIUM-LARGE
SET SCREW 5-40 X 1/2"LONG. 18-8 STAINLESS STEEL
COMPLETE STRAP & CUSHIONS KIT
TIE-WRAP BLACK 18 LBS/4"LONG
HEX-L-KEY 1/16" (FOR 5-40 SET SCREW)
2018-04-10 – 100100-SA-M XTERN
SUGGESTED TOOLS
-POWERED DRILL (VARIABLE SPEED)
-DRILL BIT 7/64" (2.8 MM)
-HEX ALLEN KEY 1/16" (INCLUDED)
-METAL HAND SAW
-MEASURING CALIPER 300MM
OR MEASURING TAPE
-BENCH VISE WITH SOFT PAD JAW
(PLASTIC / LEATHER)
-TRAUTMAN SANDER AND CARVER
-CUTTER PLIER
-PROPANE BLOW TORCH
(IF THERMOFORMING REQUIRED)
-PROTECTIVE SAFETY GEAR:
SAFETY GOGGLES, GLOVES, DUST MASK
& ALL OTHER PROTECTION REQUIRED BY
YOUR HEALTH & SAFETY WORK POLICY
p.1
