- Page 1 Chameleon Labs Model 7720 Stereo Compressor Owner’s Manual 704 228 Avenue NE, # 826 Sammamish, WA 98074 206-264-7602 www.chameleonlabs.com Revision C - December, 2007...
- Page 2 Mounting The Model 7720 compressor is designed to be rack mounted. It is 1 RU (1.75 inches) high. Its depth is 10.75 inches, 14 inches including connectors. The unit does not require rack shelves, and it does not require additional space above or below for ventilation.

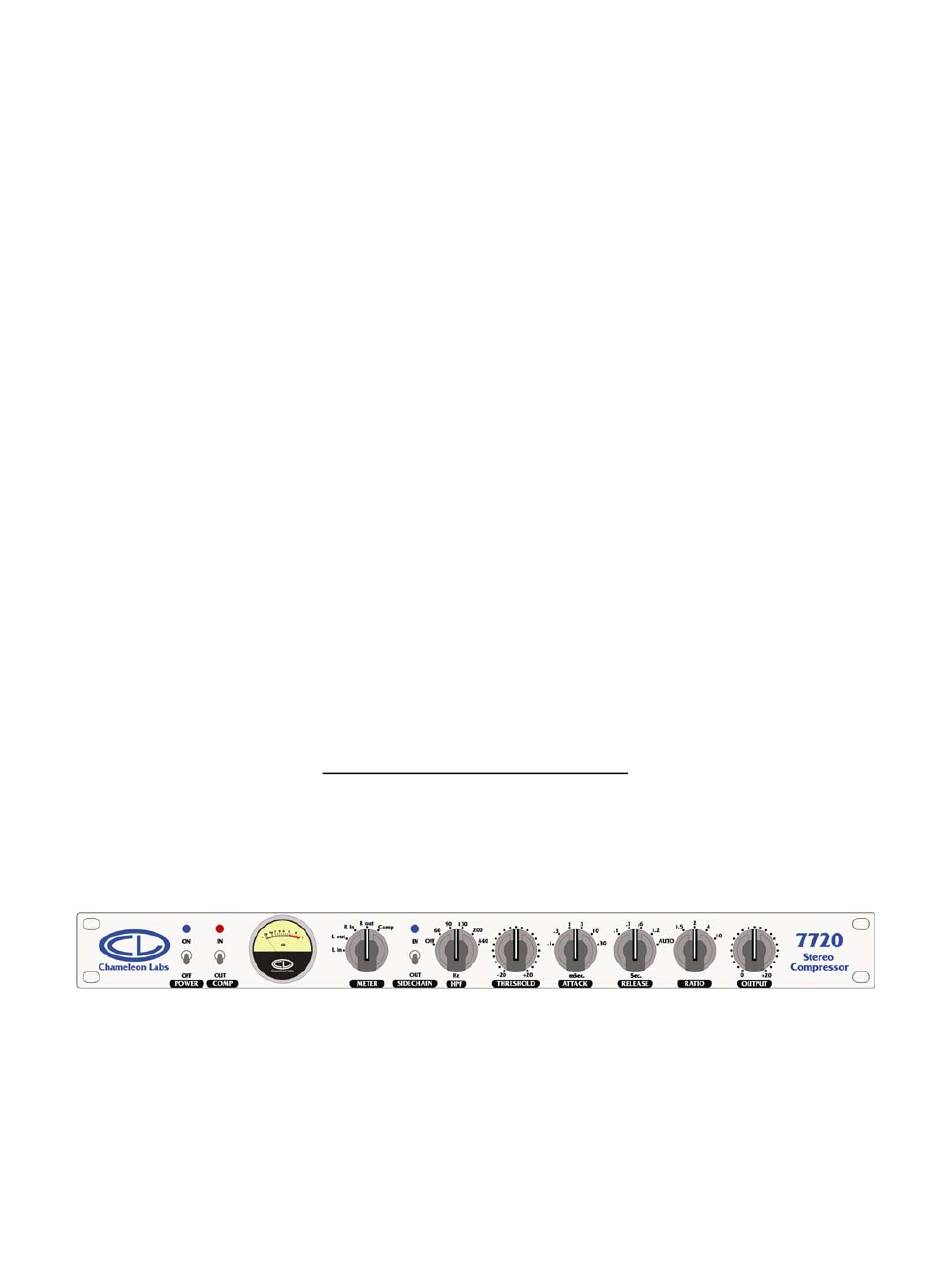

- Page 3 Front Panel Controls and Indicators Power: This switch turns power on and off. Power on is indicated by a blue LED. Comp: This switch allows the user to hear the processed signal or the unprocessed signal with the flip of a switch. When the switch is in the upper position the red LED is illuminated, indicting that the unit is in the circuit.
- Page 4 It has up to 20 dB gain, which can be used to raise the level of the compressed audio signal back to nominal levels. Non Stereo Application In order to use the Model 7720 as mono compressor, you need only use the left channel inputs and outputs. All functions are as normal. Maintenance A spare fuse is included with your optional CPS-24 power supply.
- Page 5 Net Weight: 6.6 pounds WARRANTY AND LIABILITY Your Chameleon Labs product is warranted to the original owner for a period of one year. Chameleon Labs guarantees this product to be free from electrical and mechanical defects and will repair or replace defective components, or replace the stereo compressor at Chameleon Lab’s option.
