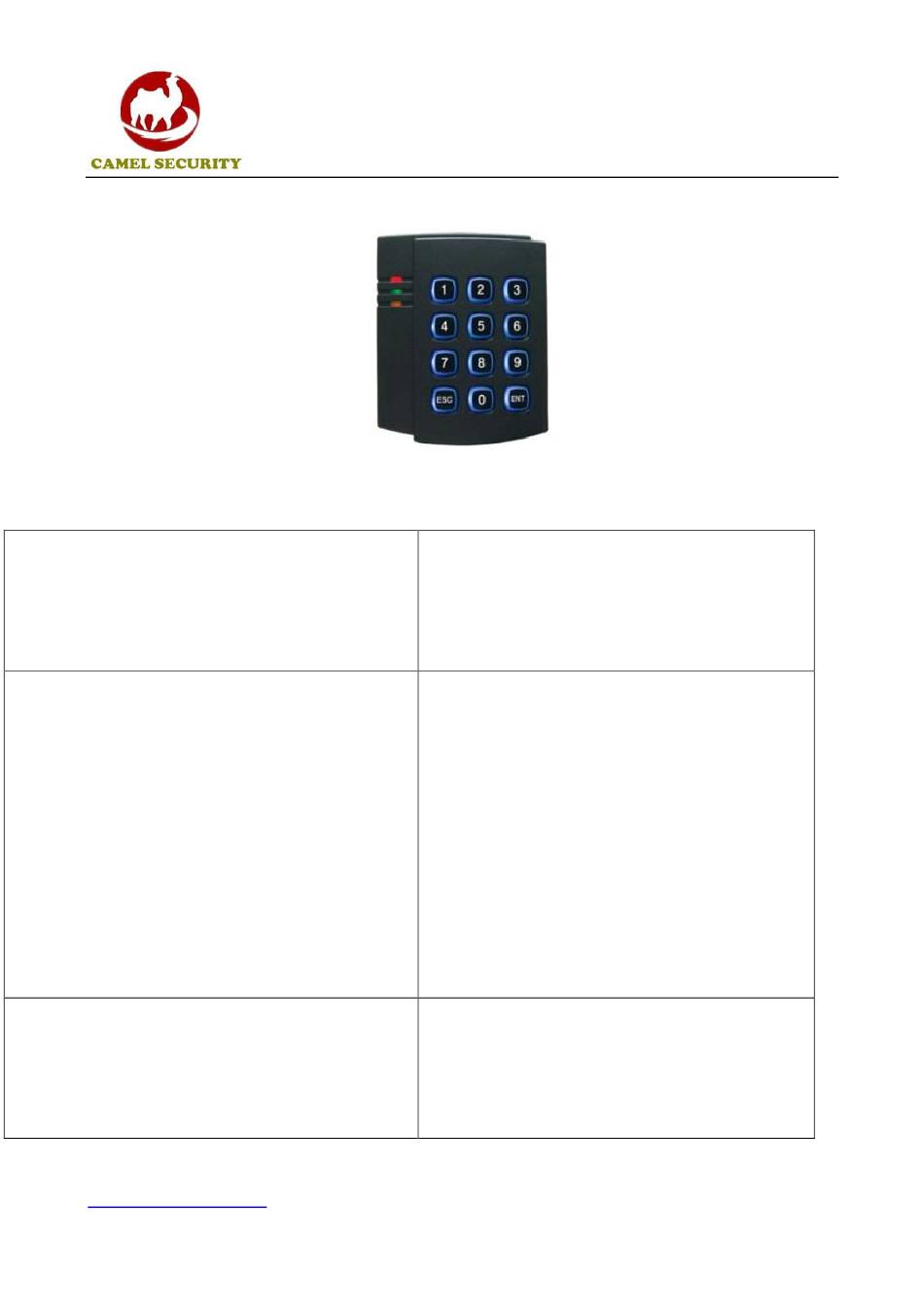

Camel Security ACS2 User Manual

FEATURES
Working environment:
Voltage: DC +8 V-+15 V (standard 12V)
Current: ≤ 70mA
Temperature: 0 ℃ -70 ℃
Humidity: 30% -90%
Wiring port definition and performance:
+12 V: power supply anode
GND: power supply cathode, public land
ALM: * ① alarm output and alarm output low level
ST: * ① STATUS door magnetism terminal
BT: BUTTON go button terminal, low-level unlock
DO: * ① Weigand 26 reader data lines (data 0)
D1: * ① Weigand 26 reader data lines (data 1)
NC: normally closed relay
NO: normally open relay
Indicator:
Red light: standby
Green light: active
Yellow light: yellow light flashing means waiting for
keyboard input, always yellow light open means
under the programming mode.
www.camelsecurity.com
SHENZHEN CAMEL SECURITY CO., LTD
ACS2 Access controller User Manual
5 kinds of open-door mode
card to open the door
Password to open the door
* ① card + password to open the door
* ① card + card to open the door
* ① password + password to open the door
Features:
* ② 500 people registered capacity, high cost
performance, digging every hardware resources.
Quick issuers mode, whether it is registered
general card or the card with a password can be
registered,
passwords input setup by cardholders their own
input in the first time
 ① door state detection, only after close
stable then start locking signal, preventing the
door in the swing when the latch, resulting in
on the impact of electric locking bolt.

* ① with door magnetism interface, with the
alarm when open the door violence.
