Dwyer Instruments HTDL-10 Installation And Operating Instruction Manual

High temperature data logger

Hide thumbs

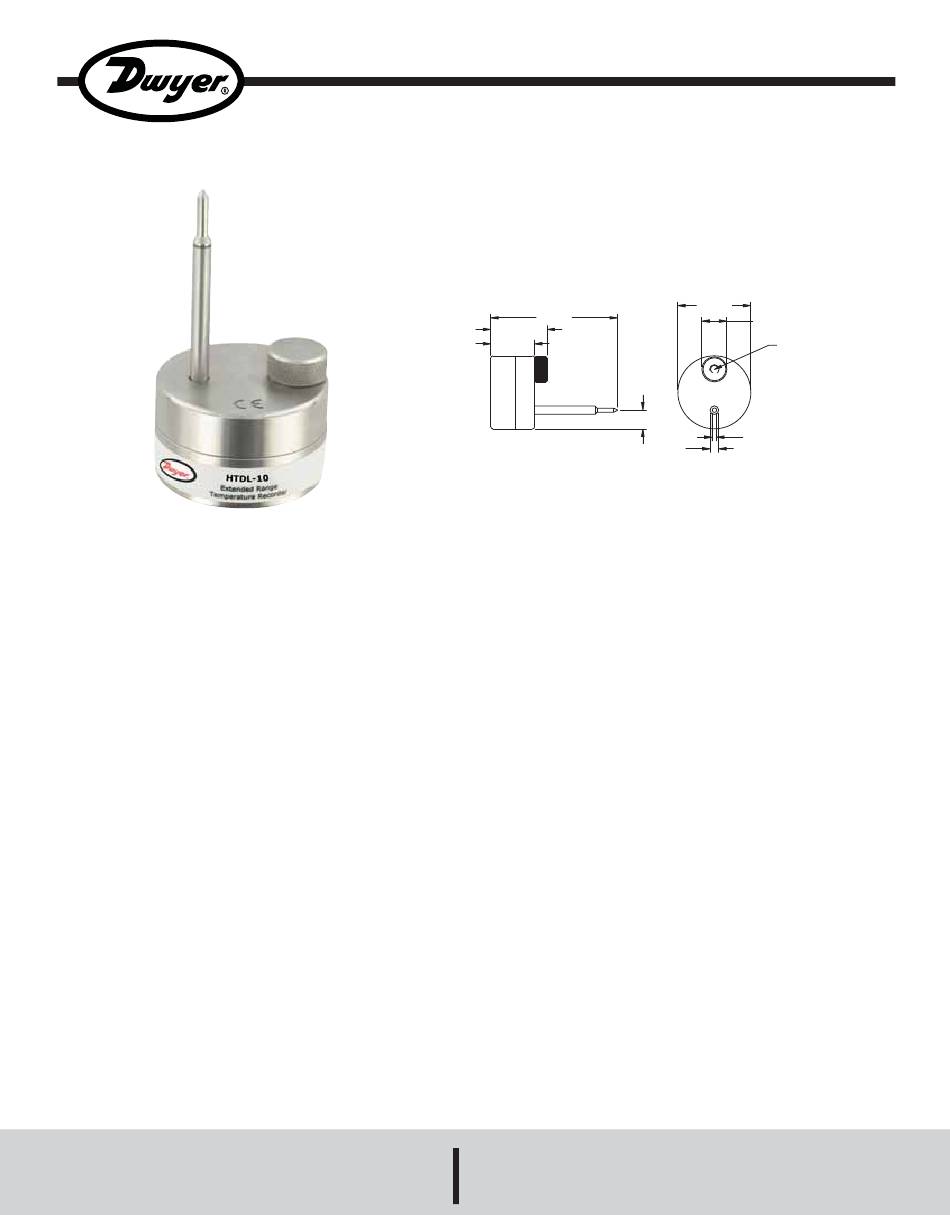

The Model HTDL-10 is a high temperature data logger that can

handle being placed in conditions of extreme heat of up to 302°F

(150°C). This submersible and portable data logger can record

over 32,000 measurements and has a 2 inch rigid external probe

to ensure fast and accurate temperature readings. The easy to use

DL700 software makes retrieving data simple. The HTDL-10 can

easily be started and stopped from a PC or delayed to start up to

six months in advance.

DWYER INSTRUMENTS, INC.

P.O. BOX 373 • MICHIGAN CITY, INDIANA 46361, U.S.A.

Model HTDL-10 High Temperature Data Logger

Specifications - Installation and Operating Instructions

1-11/32

[34.29]

1-3/64

[26.67]

Phone: 219/879-8000

Fax: 219/872-9057

3-3/64

[77.30]

29/64

[11.51]

Ø13/64

[5.25]

SPECIFICATIONS

Range: -40 to 302°F (-40 to 150°C).

Memory Size: 32,767 readings.

Accuracy: ±0.9°F (±0.5°C).

Resolution: 0.1°F (0.05°C).

Sampling Method: Stop on memory full or continuous

recording.

Sampling Rate: Selectable from 1 sec to 12 hrs.

Computer Requirements: Windows® 95, Windows® 98, Windows®

2000, Windows® ME, Windows NT®, and Windows® XP operating

system, one free USB port.

Power Requirements: Factory replaceable, 3.9 V high-

temperature lithium battery.

Battery Life: 1 year (approx).

Interface: USB port (interface cable required).

Material: 316 Stainless Steel.

Weight: 8 oz (227 g).

Agency Approvals: CE.

Windows® and Windows NT® are registered trademarks of Microsoft.

www.dwyer-inst.com

e-mail: info@dwyer-inst.com

Bulletin DA-HTDL-10

Ø1-3/4

[44.45]

Ø19/32

[15.24]

1/8˝ JACK FOR USB

INTERFACE CABLE

UNDER CAP

Ø7/64

[2.71]
