SportsPlay 902-958 Installation Instruction

Dual leg press station

Hide thumbs

Table Of Contents

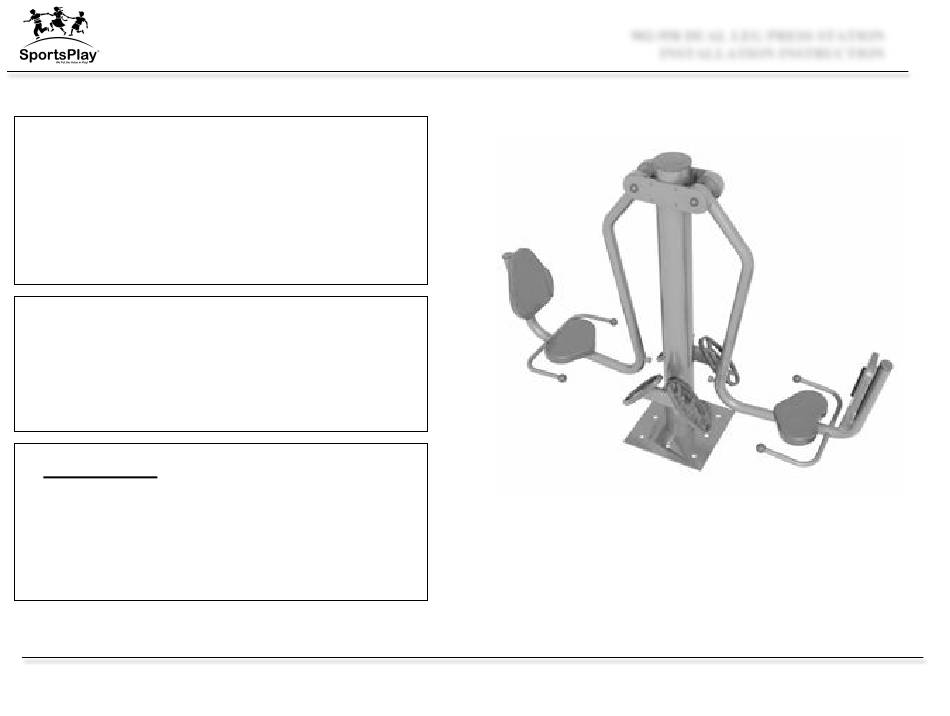

INSTALLATION DETAILS

! Recommended crew (Adult): 2

! Installation time: 2 hours (plus time for concrete to

cure)

! User age: 13 and up

Weight: 271 lbs

Maintenance:

! As the owner of the equipment you are responsible for

maintenance of the equipment and the surrounding area.

A maintenance schedule must be developed and the

equipment inspected frequently. A maintenance sheet is

included at the end of the installation instructions

WARNING

THIS EQUIPMENT IS

DESIGNED FOR ADULTS ONLY.

ONLY HEALTHY PEOPLE AGES 13

AND UP SHOULD USE THE

EQUIPMENT.

SEPTEMBER 21, 2010

902-958 DUAL LEG PRESS STATION

INSTALLATION INSTRUCTION

Table of Contents

Need help?

Do you have a question about the 902-958 and is the answer not in the manual?

Questions and answers

Summary of Contents for SportsPlay 902-958

Page 1 902-958 DUAL LEG PRESS STATION INSTALLATION INSTRUCTION INSTALLATION DETAILS ! Recommended crew (Adult): 2 ! Installation time: 2 hours (plus time for concrete to cure) ! User age: 13 and up Weight: 271 lbs MAINTENANCE: ! As the owner of the equipment you are responsible for maintenance of the equipment and the surrounding area.
Page 2 902-958 DUAL LEG PRESS STATION INSTALLATION INSTRUCTION PARTS LIST DESCRIPTION Dual Leg Press Footing Frame Mounting Cover (2 pieces) !” Hex Nuts 3/8” x 2” Button Head Bolt 3/8” Flat Washer 7/32” Allen NOTE: Keep a copy of these instructions on file to assist you...
Page 3 902-958 DUAL LEG PRESS STATION INSTALLATION INSTRUCTION FOOTING INFORMATION ! You must place the bottom of the footing frame on a suitable flat blocking material to prevent it from sinking further into the soil. We recommend you use a brick, block of wood or gravel.
Page 4 902-958 DUAL LEG PRESS STATION INSTALLATION INSTRUCTION SPECIFICATIONS INSTALLATION TIPS & TROUBLE SHOOTING ! Mounting cover – 3/8” walled rotationally molded LLDPE ! Installation of the equipment is easy since the equipment itself is already assembled. ! Paint – Electrostatically applied & oven cured powdercoat ! Always call local utilities before digging ! Hardware –...
Page 5 902-958 DUAL LEG PRESS STATION INSTALLATION INSTRUCTION INSTALLATION STEPS ! Once the footing has been dug place the frame in the hole. Level the top plate of the frame and poor concrete. Make sure the top of the top plate is flush with the surface of the concrete.
Page 6 902-958 DUAL LEG PRESS STATION INSTALLATION INSTRUCTION MAINTENANCE Welds ! Inspect all welds for cracks. If a ! THIS DOCUMENT WILL ACT AS crack is found block access to the YOUR ORIGINAL DOCUMENT playground and contact your AND COPIES SHALL BE MADE...
Page 7 902-958 DUAL LEG PRESS STATION INSTALLATION INSTRUCTION INSPECTION FORM ! MAKE COPIES OF THIS FORM TO USE FOR INSPECTION ! DOCUMENT ALL MAINTENANCE ACTIONS ON THE LIST AS WELL AS ANY NOT LISTED. ! INCLUDE DATES AND SIGNATURES Inspection Checklist...
