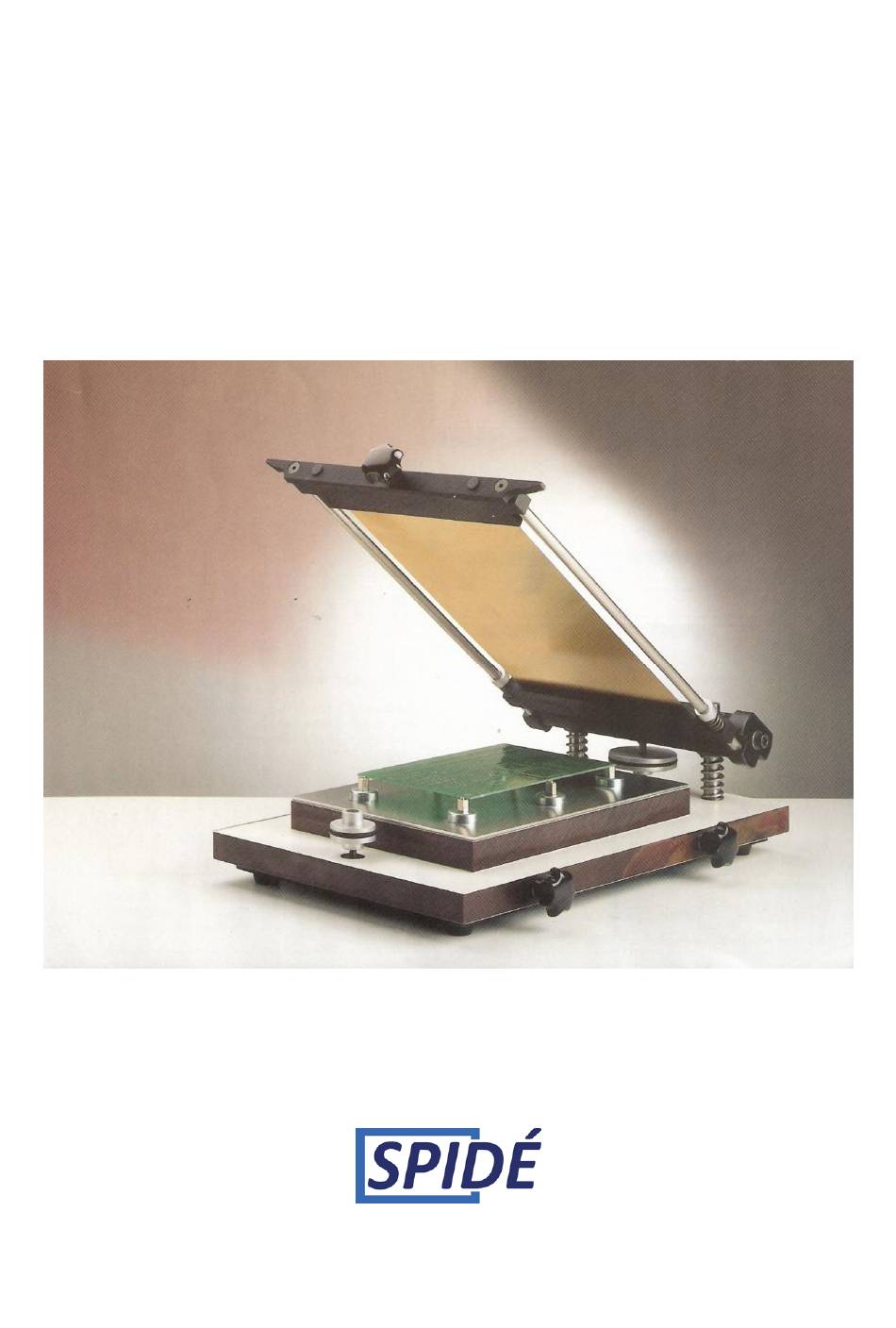

Page 1: User Manual
SP912 M1 STENCIL PRINTER User manual Version 2.10... -
Page 2: Table Of Contents
IMPORTANT SAFETY RULES ........................2 Introduction ............................. 2 Setting up the stencil printer ........................2 Placement of the stencil printer ......................3 The SP912 M1 overview .......................... 4 Getting started ............................5 Installing the stencil..........................5 Installing the first PCB ......................... 5 Operating the stencil printer ........................ -
Page 3: Introduction
They are meant to explain the printers’ use and function. The SP912 M1 stencil printer is designed to put solder paste on PBC’s with a “stencil”. A stencil is a thin metal sheet which has holes matching the position of the pads located on the PCBs. -
Page 4: Placement Of The Stencil Printer
Manual stencil printer SP912 M1 Rev.2.1 Carefully unpack the stencil printer and keep the original package in case you need to ship the unit. Please check to be sure the following items are included with your stencil printer: 1 stencil printer SP912 M1 •... -
Page 5: The Sp912 M1 Overview
Manual stencil printer SP912 M1 Rev.2.1 The SP912 M1 overview 1. Storage magnetic devices 2. Base plate 3. Stencil frame 4. Stencil 5. Stencil size adjustment 6. Top height adjustment of stencil 7. X-axis alignment and top rotation table 8. X-axis alignment and bottom rotation table 9. -
Page 6: Getting Started
Manual stencil printer SP912 M1 Rev.2.1 Getting started Installing the stencil 1. Loosen up the Y-axis alignment or stencil tensioner. (10) 2. Unscrew the eight screws of the stencil frame. (A) 3. Place the stencil in the first stencil holder. -
Page 7: Operating The Stencil Printer
6. For successive printing repeat from step 1. Maintenance and care Use the SP912 M1 only in a dry, clean location and strictly avoid aggressive environmental conditions such as etching equipment. Clean the machine after use with a solvent that only removes paste and has no aggressive elements in it that could affect the machine or the stencil. -
Page 8: Cleaning The Stencil Frame
7 Kg Warranty Like all of our other products the SP912 M1 has a one year warranty against faults in material or production. Any defective part under this warranty will be repaired or replaced at our cost. The part in question, or the whole unit, has to be returned to us, together with a detailed description of the fault.
