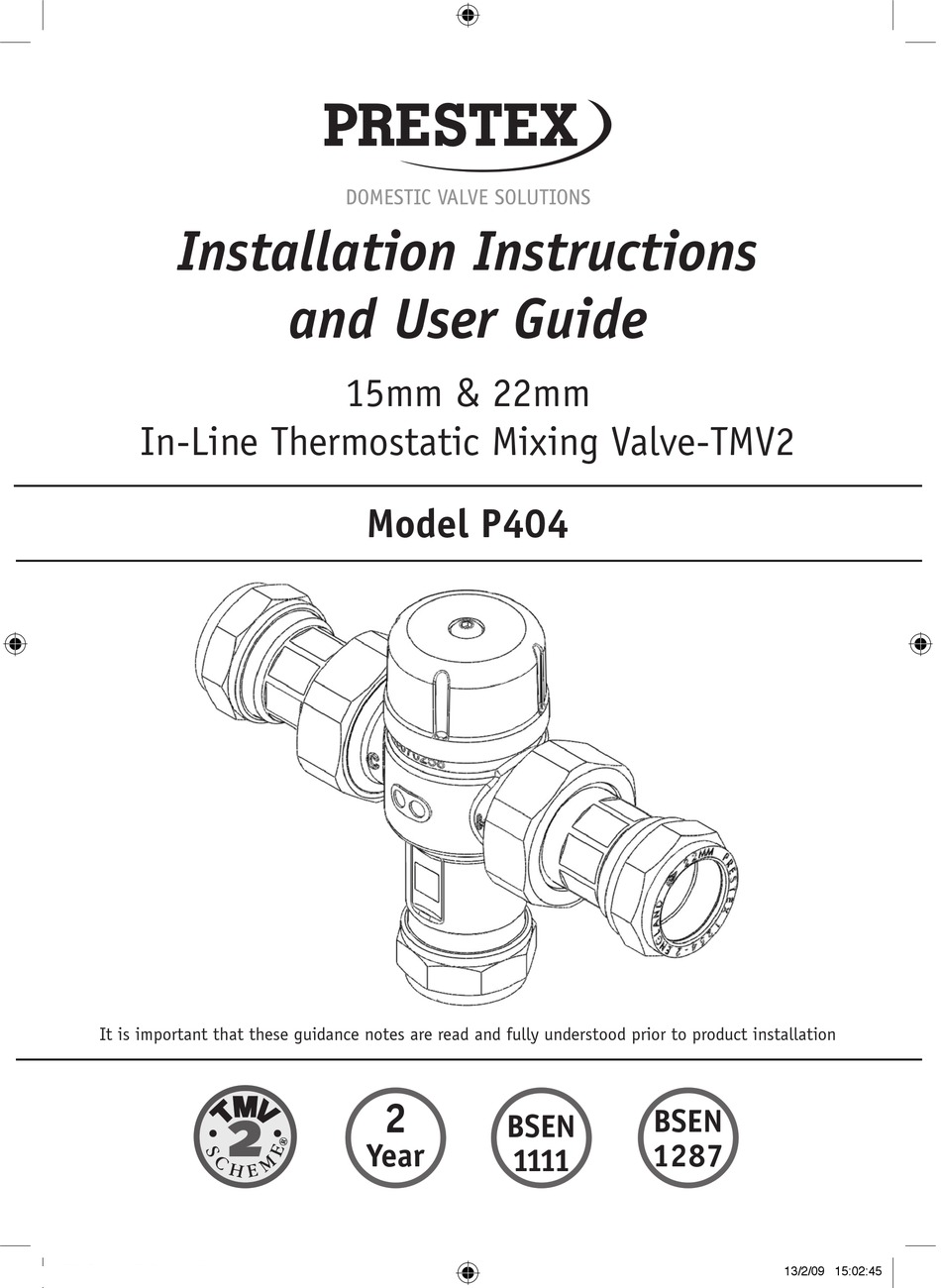

Installation Instructions and User Guide
Installation Instructions
In-Line Thermostatic Mixing Valve-TMV2
In-Line Thermostatic Mixing Valve-TMV2
It is important that these guidance notes are read and fully understood prior to product installation
TMV3 Model P404.indd 1
15mm & 22MM
and User Guide
15mm & 22mm
Model P404
Model P404
2
Year
BSEN
BSEN
1287
1111
13/2/09 15:02:45
Advertisement
Table of Contents
Summary of Contents for Prestex P404
- Page 1 In-Line Thermostatic Mixing Valve-TMV2 15mm & 22mm In-Line Thermostatic Mixing Valve-TMV2 Model P404 Model P404 It is important that these guidance notes are read and fully understood prior to product installation BSEN BSEN 1287 Year 1111 TMV3 Model P404.indd 1 13/2/09 15:02:45...
- Page 2 Type 2 valves. install Y-strainers on the hot and cold water The Pegler Model P404 mixing valve must be installed in accordance with the regulations of the local water company and the Water Supply(Water Fittings) Regulations 1999. supplies. The isolating valves and strainers...
- Page 3 • The valve must be so installed that it is readily accessible for commissioning and maintenance when being installed in accordance with TMV2. TMV3 Model P404.indd 3 13/2/09 15:02:46...
- Page 4 Exploded view of tailpiece assembly The Pegler Model P404 thermostatic mixing valve has been independently tested by WRc-NSF The assemblies comprise an integral full bore ball valve and in-line strainer in an angled housing.
- Page 5 If all these conditions are met, proceed to turning set the temperature as described below. counterclockwise. The Prestex thermostatic mixing valve is supplied factory set at 43°C but the valve may • Measure and record the temperature of the be simply adjusted after installation.
- Page 6 MAINTENANCE • The equipment used in these In-Service Tests should be RECORDED and should The Prestex Model P404 thermostatic mixing preferably be the same as that used at valve will provide satisfactory service and installation. a high level of protection, provided it is...
- Page 7 In order to ensure that the Model P404 thermostatic mixing valve continues to provide satisfactory service, only GENUINE Pegler spare parts must be used. • Remove the main spring and flow guide and carefully put to one side.
- Page 8 All brand names and logo styles are registered trademarks. Maintaining a policy of continual product development, Pegler Yorkshire reserves the right to change specifications, design and materials of products listed in this leaflet without prior notice. LUXURY TAP SOLUTIONS TMV3 Model P404.indd 8 13/2/09 15:02:49...
