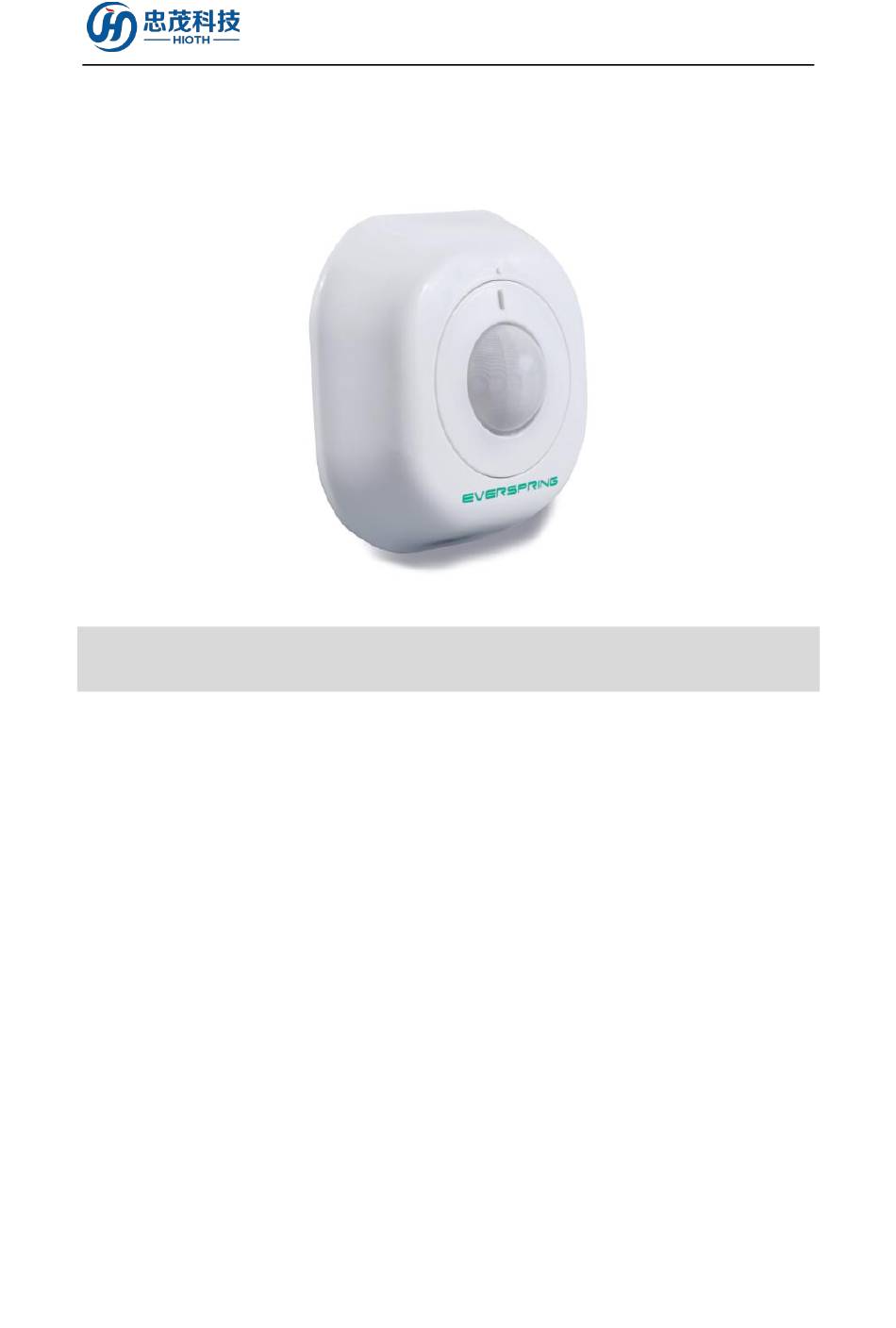

PIR MOTION DETECTOR
The Motion Detector is a Z-Wave enabled device which is fully compatible with any Z-Wave
enabled network. Z-Wave enabled devices displaying the Z-Wave logo can also be used with it
regardless of the manufacture, and ours can also be used in other manufacturer's networks, This
Motion Detector can control our modules via controller settings. Inclusion of this Motion Detector
on other manufacture's Wireless Controller menu allows remote turn on of connected modules w-
hen the detector is triggered.
The Motion Detector is designed with two d
and light sensor, in order to fulfill the purpose of security and home automation. Once night falls,
the percentage of ambient illumination is lower than preset value. If a person moves within or
across the device field of vision, a trigger radio signal will be transmitted so as to turn on the con-
nected lightings for better illumination.
HIOTH TECHNOLOGY CO.,LTD.
HIOTH
Introduction
etecting
sensors, Passive Infra Red (PIR) sensor
User Manual
CT-SMZW2004-ES
PIR Motion Detector
Advertisement
Table of Contents
Related Manuals for HIOTH TECHNOLOGY CO., LTD CT-SMZW2004-ES
Summary of Contents for HIOTH TECHNOLOGY CO., LTD CT-SMZW2004-ES
- Page 1 HIOTH User Manual PIR MOTION DETECTOR CT-SMZW2004-ES PIR Motion Detector Introduction The Motion Detector is a Z-Wave enabled device which is fully compatible with any Z-Wave enabled network. Z-Wave enabled devices displaying the Z-Wave logo can also be used with it regardless of the manufacture, and ours can also be used in other manufacturer’s networks, This...
- Page 2 HIOTH User Manual Technical Information Compatible with any Z-Wave network controller Battery powered and cost savings Support the scene control Specifications Radio protocol: Z-Wave 868.42MHz EU Power supply: DC 4.5V(1.5V AA*3) RF range：25m (in an open area of the wireless controller and the latest line-of-sight between Z-Wave receiving module) ...
- Page 3 HIOTH User Manual ⑤ Link Key Fig.1 Z-WAVE NETWORK INCLUSION In the rear casing, there is a link key which is used to carry out inclusion, exclusion, association or reset. When the detector is first powered up, the LED flashes on and off alternately and repeate dly at 2-second intervals.
- Page 4 HIOTH User Manual If the device can still be displayed (network exclusion failed), repeat steps 2-4. NOTE: If the device is online, directly perform steps 1-5, if the device is offline, need interruption of the device power supply first, and then perform step 1-5. MOTION DETECTOR RESET Reset procedure clears the modules’...
- Page 5 HIOTH User Manual Insert 3 AA-size 1.5V alkaline batteries to the battery compartment, ensuring correct polarity is put (Fig.3). Fig.3 Two ways of mounting are applicable to the detector. Decide the detector is to be wall-mounted (Fig.4) or ceiling-mounted (Fig.5). Hold the rear cover in position and mark the two mounting holes.
- Page 6 HIOTH User Manual Fig.5 Settings (Coverage Range Adjustments) Two types of lens covers are provided for the detector. Wall-lens cover (Fig.6a) is to be used when the detector is wall-mounted, whereas ceiling- lens cover (Fig.6b) is to be used when the detector is ceiling-mounted.
- Page 7 HIOTH User Manual cap to a suitable size and place it onto the ceiling-lens cover (Fig.6d). The remaining segments are used for blanking off an undesirable detection area. Fig.6c Fig.6d Simply turn the cover anticlockwise to remove the wall-lens cover from the detector. Once the wall-lens cover is removed, reload the detector with ceiling-lens cover and turn it clockwise, ensure the mark on the cover is pointing towards and aligned with the mark on the detector.
