Summary of Contents for Auxiescope OPX-1600

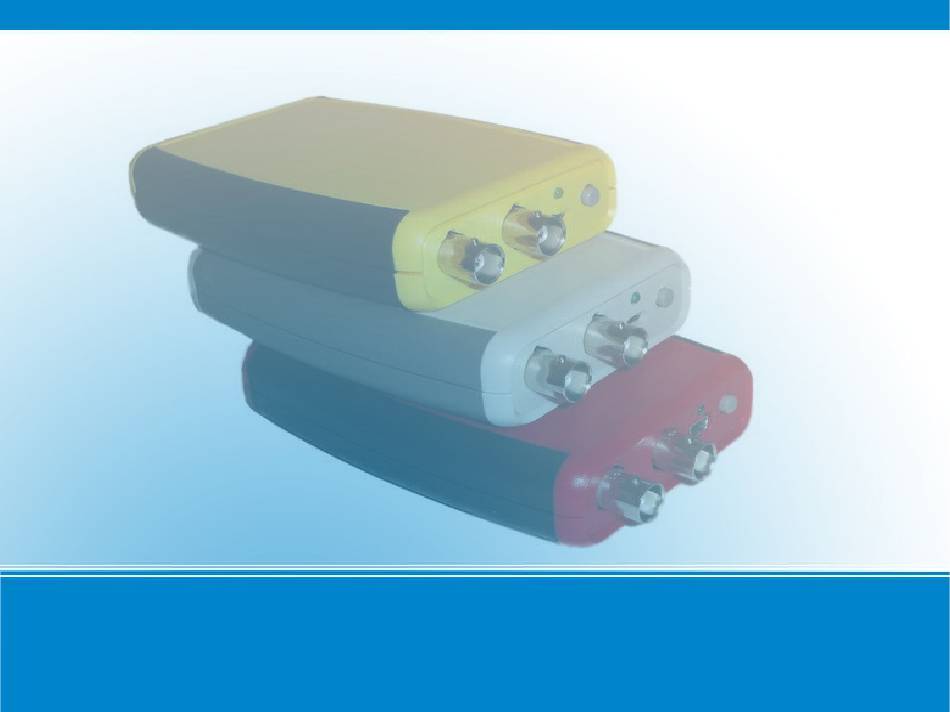

- Page 1 Auxiescope OPX-1600 User's Guide...
- Page 2 Number of channels: Auto measure: Vmax, Vmin, Vamp, Freq, Period ● ● Analog bandwidth: 12 MHz Cursors: Period, Voltage ● ● ADC Resolution: 8 bit Trigger modes: Normal, Auto, Single, Scan ● ● Sample rate: 50 MS/s (each channel) Trigger slope: Raising, Falling ●...
- Page 3 Status LED Communication Modes: Bluetooth connection wait Flashes once per second Bluetooth connection active Flashes every 300 ms Charger Modes (power off) Charging Flashes once per 3 seconds Charging completed Stays Solid Channel 1 Power button – press and hold 2 seconds Channel 2 Micro USB charger port –...
- Page 4 ● On Android device go to System settings->Bluetooth. Enable bluetooth and activate devices search ● OPX-1600 oscilloscope shows up as BTSCOPE SNXXXXX. Pair with it using pin 1234. ● Download and install AR Oscilloscope app from Play Store. Open it.
- Page 5 Settings Signal Run/Stop Horizontal Trigger mode – tap to menu menu trigger open trigger settings menu Vertical position control – drag to move channel up/down. Tap to toggle signal On/Off CH1 – tap on it to make it active for automatic measurements (channel will...
- Page 6 Zoom tool – Cursor Cursors multitouch to zoom measurements tool in/out Voltage Cursor 1 Voltage Cursor 2 Time Time Cursor 1 Cursor 2 Android app advanced controls...
