DMtex D9000 SR Installation And Operation

ISO 9001:2008 Certified Company
Installation and operation conventional fire detectors
Nom.№
Type
1001 D9000 SR
1002 D9000 T /
A1R
1003 D9000 T /
A1S
1004 D9000 MSR
Caution : Read this manual before attempting to install the detector.
1. Technical specifications
–
Supply voltage
–
Power consumption in Duty condition
–
Consumption in " Fire " condition
–
limiting resistor output
–
Degree of protection
–
Cross section of the connecting wire
–
Operating temperature range
–
Humidity
–
Dimensions with base
–
Weight
–

Mounting the detector

–
Choose the place (according to the plans of the project) for the installation of the detector ;
–
Mount the base with appropriate fixings ;
–
Connect the electrical cables according to the attached diagram ( Figure 1)
–
Place the detector base and rotate clockwise till matching
–
If you want to lock detector

Pre remove the key from the base ( Figure 2).

Break the plastic at the specified location on the bottom of the sensor ( Figure 3
D9000 series
Characteristics

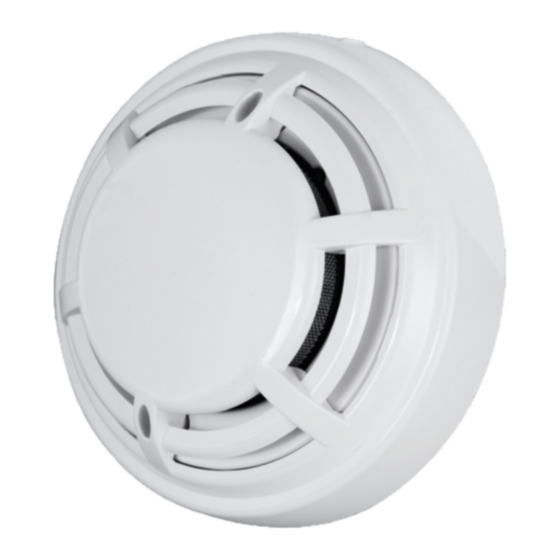

Optical smoke detector
Rate of rise heat detector
Fixed temerature heat detector
Combines optical smoke and heat detector
::
9-30 V DC
≤ 130 µА
20 mА/ 24V DC
2kΩ
IP 40
0,4÷2,0 mm2
10ºС ÷ 50ºС
(93 ± 3)% при 25ºС
f 100mm h ≤ 52mm
≤ 100g
Fig.1
markers;
Tel./Fax: 064 801 597
e-mail: office@dm-teh.com
web: www.dm-teh.com
Address: Pleven, Bulgaria 5800
ул."Ген.л-т Ат. Стефанов"
Sensitivity / Class
EN 54-7
A1R, EN 54-5
A1S, EN 54-5
A1R, EN 54-5 / EN 54-7
;);
).
