Epicamera Epicam E17S Quick Start Manual

w w w . e p i c a m e r a . c o m
Epicam E17S
Smart Camera
Quick Start Guide
©
2018 Timetec Cloud Sdn Bhd. All rights reserved • 042018

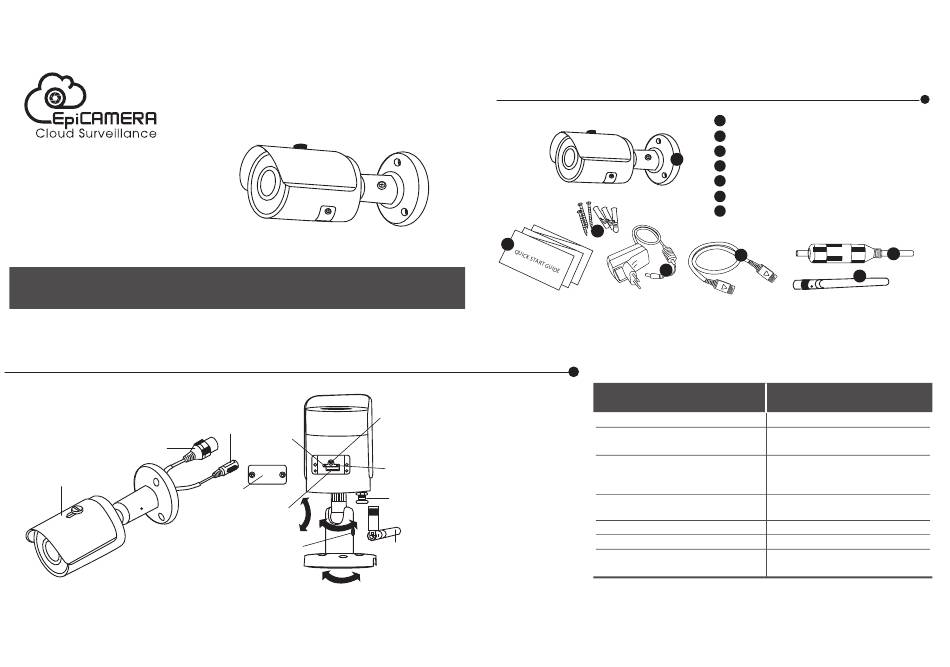

PRODUCT APPEARANCE

Please refer to the following pictures for
more details regarding each port.
Ethernet port
Unit device
Reset/ WPS
button
Power port
Indicator
(WiFi Protected Setup)
light 1
Lower
cover
Micro SD
card slot
Locking screw
CAMERA & ACCESSORIES
2
NOTE:
1. For PoE model device,
please DO NOT apply
PoE power and DC
power to the device at
the same time. Use
Indicator
only ONE power
light 2
source at a time.
2. For WiFi model device,
Waterproof ring
please apply only DC
(WiFi Protected Setup)
power to the device.
3. To reset, long press for
8 seconds until light
WiFi antenna
off; For WPS (WiFi
(for WiFi model only)
Protected Setup), a
quick press will suffice.
1
Device ×1
2
Quick Start Guide ×1
3
Screw Packet ×1
1
4
Power Adapter ×1
5
Network Cable ×1
6
Waterproof Connector ×1
7
WiFi Antenna x 1
3
5
4
Please refer to the following table for more details about indicator light status.
INDICATOR LIGHT STATUS
Red light stably on
Green light slow flashing
Green light quick flashing
Green light stably on
Red and green lights flash alternately
Red light slow flashing
Red light quick flashing
(for WiFi model only)
6
7
DEVICE STATUS
Booting
Booting completed, awaiting WiFi
config, enter smart config status;
WiFi smart config in progress,
including WPS (WiFi Protected
Setup), management frame, etc.
WiFi connection succeeded,
operating normally.
Device upgrade
Network disconnected
Device fail to boot up; alarm or SD
card does not work
