S-5! S-5-R465 Installation Instructions

Installation Instructions

S-5!® Warning! Please use these products responsibly! Visit our website or
contact your S-5! distributor for available load test results. The user and/or
installer of these parts is responsible for all necessary engineering and design
to ensure the S-5-R465 has been properly spaced and configured.
Notice to S-5! users: Due to the many variables involved with specific panel
products, climates, snow melt phenomena, and job particulars, the
manufacturer cannot and does not express any opinions as to the suitability
of any S-5! assembly for any specific application and assumes no liability
with respect thereto. S-5! products are tested for ultimate holding strength
on various profile types and materials. This information is available from the
S-5! website: www.S-5.com. This document is an installation guide only and
the photographs and drawings herein are for the purpose of illustrating
installation, tools and techniques, not system designs. Information
contained within is intended to apply to the document as a whole.

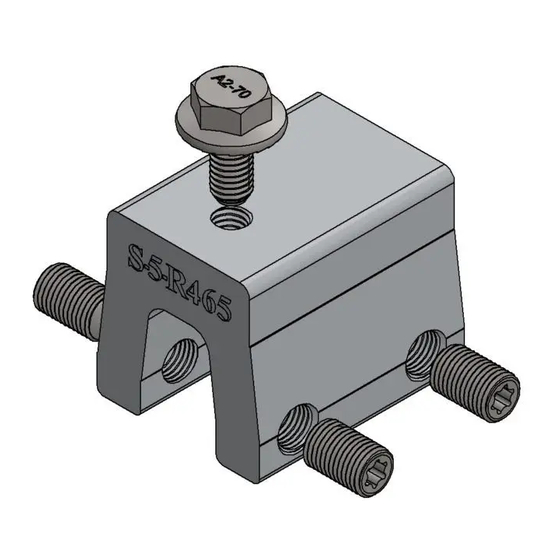

The S-5-R465 and S-5-R465 Mini clamps are designed to fit the
Zambelli RIB-ROOF 465, McElroy Metal's Mirage II, Rib Roof Metal
Systems' Rib Roof, and similar roof profiles.

Tools Needed

• Screw Gun*
• 3/16" Allen Bit Tip (provided)

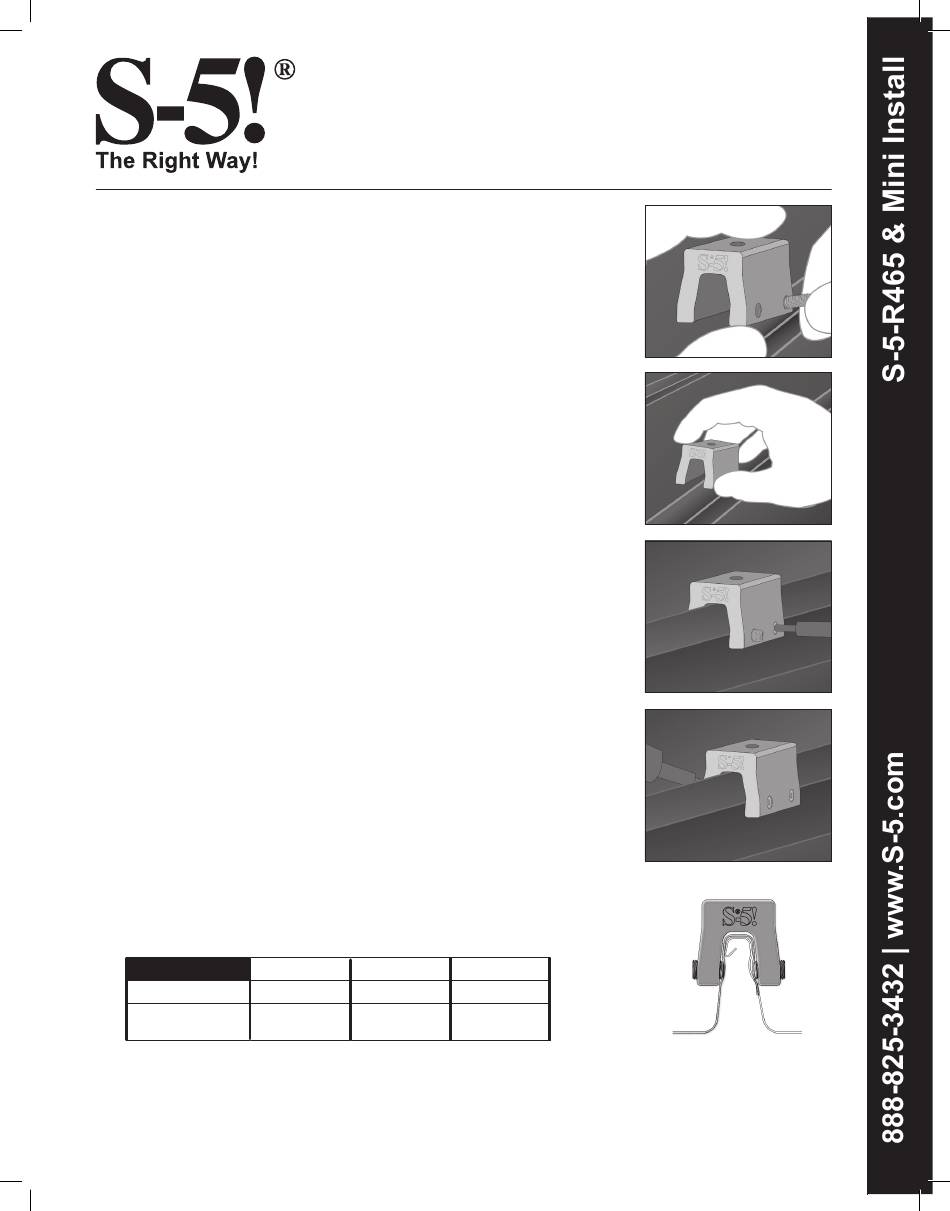

To Install S-5-R465
1. Partially thread all four round-point setscrews into the clamp by hand.
2. Position the clamp at desired location along the seam with the bolt hole
in the correct (upslope or downslope) orientation.
3. Use a screw gun* and the included bit tip to tighten the two upslope
setscrews until flush with seam wall. Next, tighten the two downslope
setscrews until flush with seam wall.
4. Finally, tension and re-tension each of the four setscrews as the seam
material compresses, i.e. tighten the first setscrew, then the second; then
repeat until each setscrew achieves the recommended torque. When
relying on published load values, setscrew tension should be verified
using a calibrated torque wrench as indicated below to ensure the tool is
consistently achieving the proper torque range.
* For time-saving tool recommendations, call S-5!
Specified Torque Inch Pounds
22ga steel 160–180
24ga steel and
130–150
all other metals
Once installed correctly, these clamps require no maintenance or re-
inspection for the life of the roof.
For critical attachment applications, tighten the included M8-1.25 X 16 mm Hex Flange Bolt to 160 inch pounds (13
foot pounds).
These instructions are for use by those experienced in the trade. Always follow appropriate safety precautions and use appropriate tools.
The right way to attach almost anything to metal roofs!
