Cloud Gateway Instruction Manual
For the cloud gateway device to function there must also be an RA/RTC/WA/WTC Bridge
installed. The Bridge should have an up to date project file for the system loaded into it.
1) Remove the two screws at the base of the lid.
2) Remove the lid.

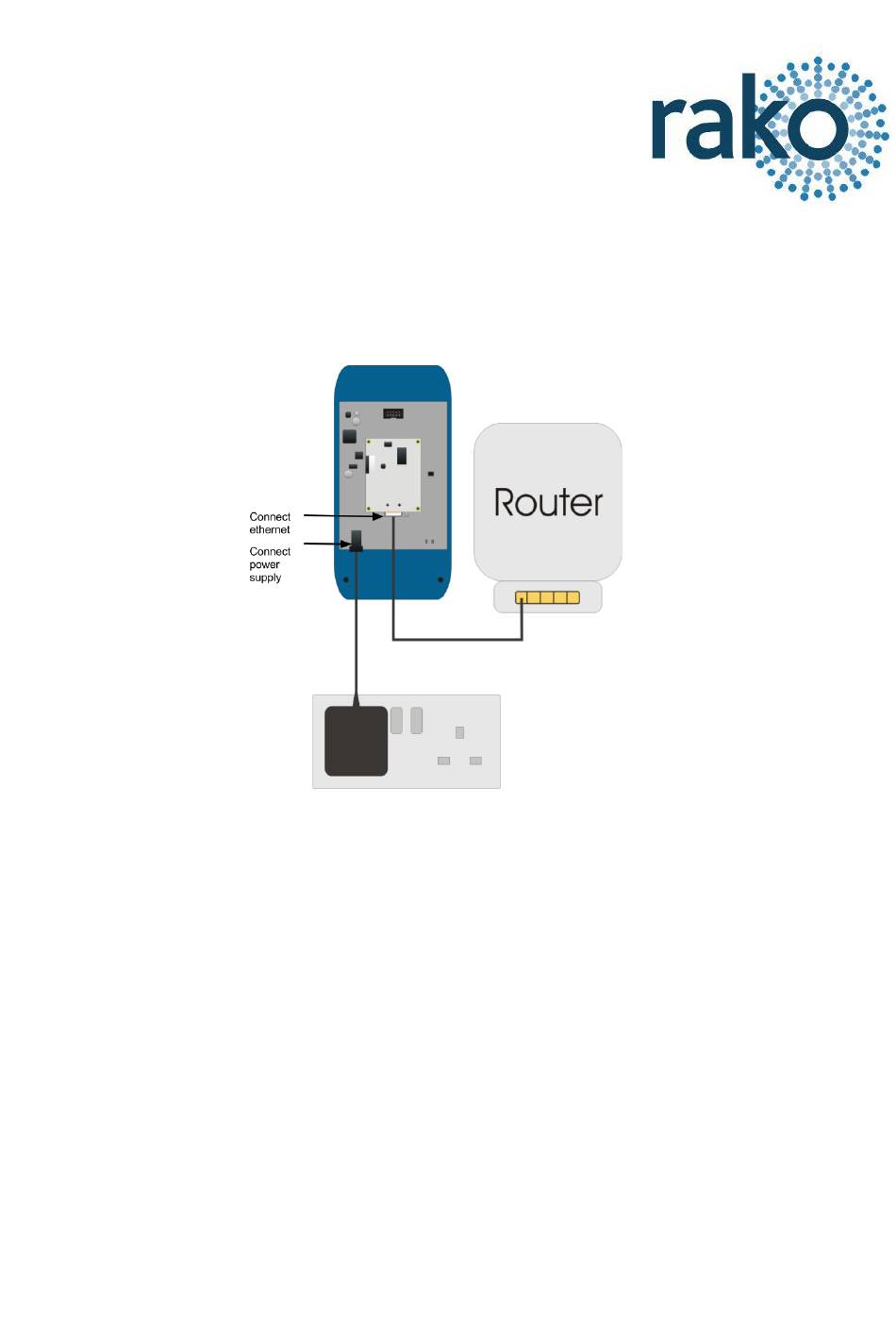

3) Connect the ethernet cable into the centre of the Cloud Gateway circuit board and
plug the other end into the router.
4) Plug the power supply provided into the socket on the left hand side of the circuit
board and plug the other end into a power socket.
Cloud Gateway
Manual Version 1.0.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Cloud Gateway and is the answer not in the manual?

Questions and answers

Summary of Contents for rako Cloud Gateway

  • Page 1 1) Remove the two screws at the base of the lid. 2) Remove the lid. 3) Connect the ethernet cable into the centre of the Cloud Gateway circuit board and plug the other end into the router. 4) Plug the power supply provided into the socket on the left hand side of the circuit board and plug the other end into a power socket.
  • Page 2 3) Once the account is verified return to my.rakocontrols.com. Select “Link device” on the homepage. 4) A Link code is required to set-up the Cloud Gateway. This is read from the display on the Cloud Gateway device itself: press “tick” to show link code.
