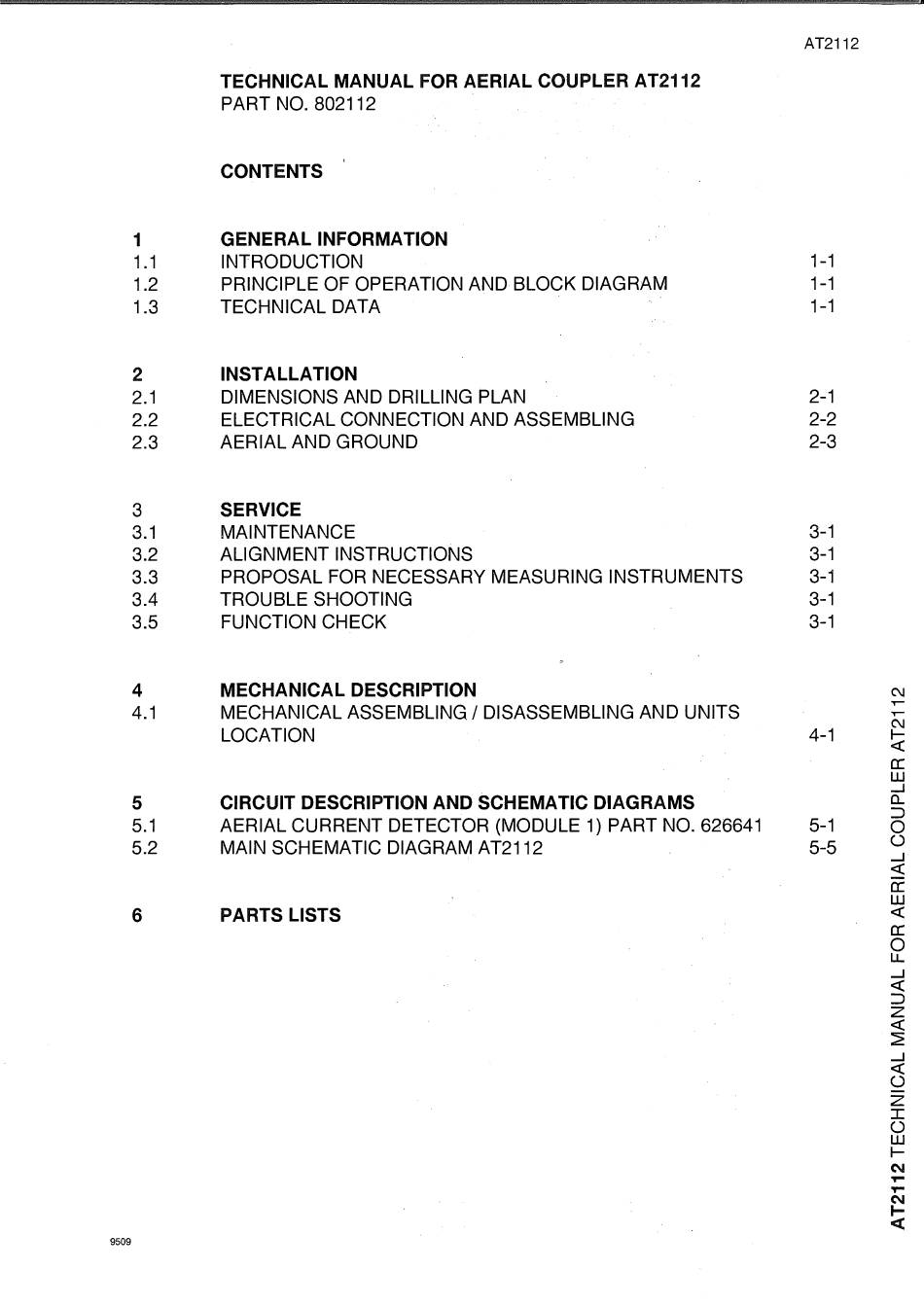

TECHNICAL MANUAL FOR AERIAL COUPLER AT2112
PART NO. 802112
CONTENTS
GENERAL INFORMATION
INTRODUCTION
PRINCIPLE OF OPERATION ANDBLOCK DIAGRAM
TECHNICAL DATA
INSTALLATION
DIMENSIONS AND DRILLING PLAN
ELECTRICAL CONNECTION AND ASSEMBLING
AERIAL AND GROUND
SERVICE
MAINTENANCE
ALIGNMENT INSTRUCTIONS
PROPOSAL FOR NECESSARY MEASURING INSTRUMENTS
TROUBLE SHOOTING
FUNCTION CHECK
MECHANICAL DESCRIPTION
MECHANICAL ASSEMBLING./ DISASSEMBLING AND UNITS
LOCATION
CIRCUIT DESCRIPTION AND SCHEMATIC DIAGRAMS
AERIAL CURRENT DETECTOR (MODULE 1) PART NO. 626641
MAIN SCHEMATIC DIAGRAM AT2112
PARTS LISTS
