Wellclima PLUS Instruction Manual

Instruction Manual

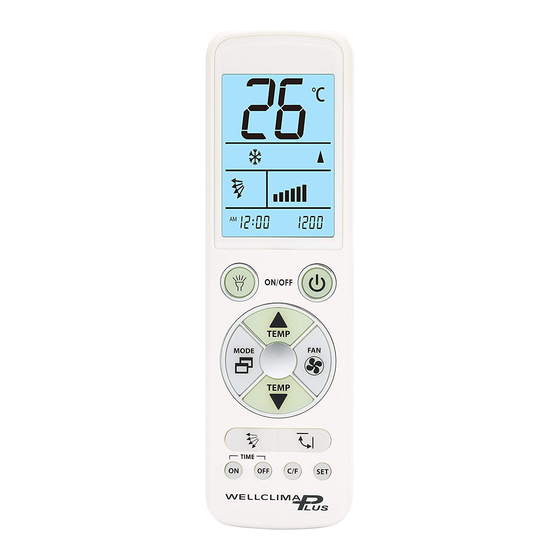

UNIVERSAL A/C REMOTE CONTROL

SETTING OF THE REMOTE CONTROL

The remote control can be set to 3 different modes. Choose mode A if the brand of your
air conditioner is among those in the image below, or modes B or C for all other brands.

A) Point-to-point quick search (only for major brands)

1. Aim the remote control towards the air conditioner receiver window.
2. Press and hold the appropriate code button corresponding to your A/C
brand (for example ▲ button for LG and Samsung brand) until the air
conditioner turns on and you hear a 'beep' sound; release the button
and the setting is completed.
3. Check the button functions. If the buttons work correctly, the code setting is
effective. If not, please repeat steps 2 and 3.
HEAT
CHIGO/TCL
CHUNLAN
AUX
FAN
DAIKIN
CARRIER

B) Manual Code Input

1. Connected to www.wellclima.com website, find air conditioner brand in the
'CODE LIST' of PLUS model and check the first set of codes.
2. Press and hold SET button, then press POWER button and hold them down.
Release both buttons when the symbol '---' flashes on the screen window. Press
'TEMP▲' or 'TEMP▼' until the code found in Step 1 appears on the screen window
(you can keep the TEMP keys pressed to scroll the codes faster).
3. Press the SET button to exit, check the button functions. If the device respond cor-
rectly the setting is finished, if not, please repeat steps 2 and 3 with next set of codes.
LOOK OUT: when the codes are separated by a - sign it means all the numbers betwe-
en the first and the last (es LG 600-609 you have to test codes 600, 601, 602.....>609).
If none of the codes work with your air conditoner or if your brand is not in the
list don't worry, proceed with the Automatic Code Search

C) Automatic Code Search for applicable model

1. Aim the remote towards the air conditioner receiver window.
2. Press and hold SET button, about 6 seconds later the model code '---' starts to
flash, do not release the button until the air conditioner switches on automatically.
3. Release the SET button immediately when the conditioner turns on and check the
button functions. If the buttons work correctly, the code setting is effective. If not,
please repeat steps 2 and 3.
4. A complete scan of all codes takes about 30 minutes. Do not stop the search before,
or before the air conditioner switches on.
Brand Code Button Table
COOL
MIDEA
CHANGHONG
B
C
HAIER
MITSUBISHI
MODE
GREE
HUALING
wellclima PLUS
E.A.Heating
FRESTECH HISENSE
YAIR KELON
▲ ▼
TEMP
LG SHINCO
SAMSUNG AUCMA
Manual
Wind
HITACHI SHARP
PANASONIC SANYO
K-209ES
A
TEMP
Auto
Wind
