Davies Craig 10" Thermatic Fan Installation Instructions

Davies, Craig Thermatic
SUITABLE FOR DAVIES, CRAIG 8", 9", 10", 12", 14", 14HP", 16" FANS
BEFORE COMMENCING INSTALLATION, PLEASE READ THESE INSTRUCTIONS THOROUGHLY.
All Davies, Craig Thermatic
All Davies, Craig Thermatic
assembled to be mounted Upstream.

Changing Airflow Direction:

Remove the clip or undo the hex nut, depending on model, from the
centre of the fan blade.
Remove the fan blade from the motor shaft, turn it over and replace. In
every case the instruction, printed on the blade, 'This side must face
front of vehicle' and 'this side must face rear of vehicle' must be
followed.
Re-secure the fan blade.
Before mounting the fan to the face of the radiator/condenser, note the
direction of the arrow on the fan blade. The fan must rotate in the
indicated direction.

Mounting Instructions:

Take the 4 mounting feet supplied and install them onto the Fan
Shroud in the desired locations around the perimeter of the shroud.
Position the Fan against the radiator or air conditioning condenser.
If using Parts #1000, #1001, #1002 or #1003 use the provided
hardware to mount the fan to the core as per the instructions provided.
When installing the fan to the core don't use excessive force as this
can result in damage to the radiator or condenser core.
Your fan MUST rotate in the direction indicated by the arrow on
the blade and the instruction on the hub of the fan blade "This
side must face front of vehicle" must be complied with in all cases.
Davies, Craig recommends the use of a Thermal Switch to control your
®
Thermatic Fan. A Thermatic
Davies, Craig has a full range of Thermatic
Switches (#0444 & #0455).

Wiring Instructions:

It is recommended you disconnect the battery before installing your Thermatic fan.
®
When using a Thermatic Switch, follow the installation instructions provided with your product.

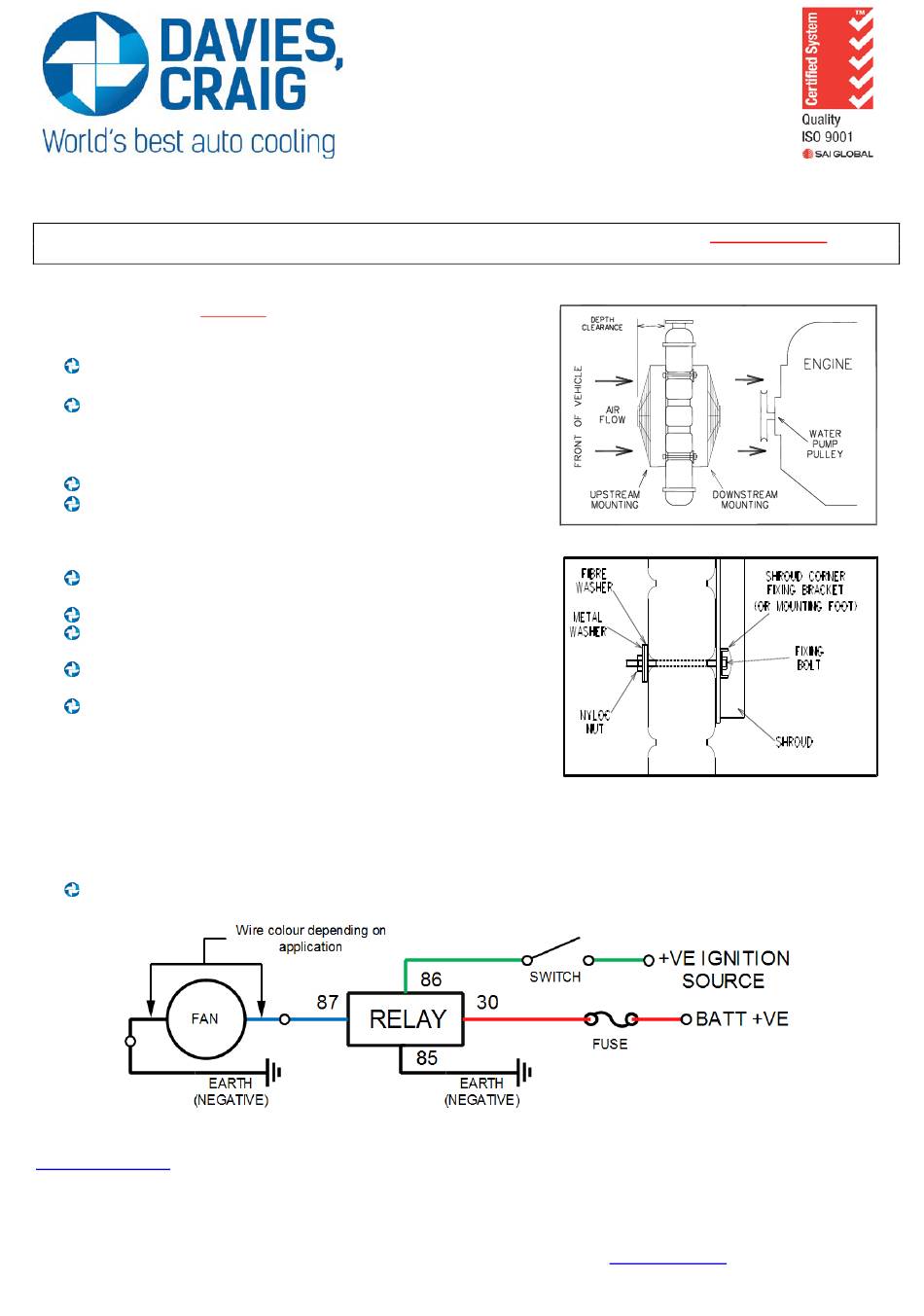

The wiring diagram below is for basic fan operation. The switch can be a manual or a Thermal Switch.
Make a temporary connection of the two wires from the motor to power and earth. Run the fan, if it turns in the direction of
the arrow, make the connections permanent, if not swap the motor leads and make the connections permanent.
These installation instructions may suit most applications but there are circumstances surrounding some engine designs, environments, and the nature of the
system involved, which may require other installation arrangements not outlined here. Frequently Asked Questions (FAQ) are listed on our website:
www.daviescraig.com.au. Emails can be directed to info@daviescraig.com.au or Telephone +61 (0) 3 9369 1234 during business hours.
Davies, Craig Pty Ltd warrants for a period of two years or 2000 hours continuous running (whichever is the lesser) from the date of purchase. Davies, Craig shall
carry out, free of cost, any repairs that are reasonably necessary to correct any fault in the operation of your Davies, Craig product provided that such a fault is directly
attributable to a defect in the workmanship or materials used in the manufacture of the part(s) and is not due to installation other than described in these instructions.
Labour and consequential costs are excluded. DAVIES, CRAIG PTY. LTD
Thermatic Fan Kit Instructions. Part #10954
FAILURE TO COMPLY MAY VIOD YOUR WARRANTY
®
Fans include 4 mounting feet. (Mounting Hardware, wiring and Thermal Switch not included.)
®
Fans are designed for both UPSTREAM and DOWNSTREAM applications.
®
Switch will provide the most effective cooling.
®
Switches available in both mechanical (#0401, #0404 & #0400) and Digital Thermatic
®
Fan Installation Instructions

WARRANTY

REGISTER YOUR WARRANTY AT:
77 Taras Avenue
P.O. Box 363
Altona North
Vic 3025 Australia
Phone: +61(0)3 9369 1234
Fax: +61(0)3 9369 3456
info@daviescraig.com.au
www.daviescraig.com.au
They are factory
www.daviescraig.com.au under the support tab.
®
07/05/2018
