Supplies for the Speedy Stitcher
Waxed Polyester Thread (Tan)
No. 150 Coarse
No. 140 Coarse
No. 160 Fine
30 Yd. Skein
180 Yd. Tube
IMPORTANT – Fine sewing requires FINE THREAD and the 130-#4
NEEDLE. Both are pictured above. If these supplies are not available from
your dealer, we will be pleased to help you locate a supplier.
Visit: www.speedystitcher.com or send postcard to:
Stewart Manufacturing, Inc.
70A Overocker Road • Poughkeepsie, N.Y. 12603-2035
Needles
No.130 - #4
No. 130A
No. 170 Fine
-#8S
180 Yd. Tube
No. 130B - #8C
Dept. S
STEWART MFG. INC.
70A Overocker Road
Poughkeepsie, N.Y. 12603
Instruction
Guide
AN INDISPENSABLE TOOL FOR SEWING
AWNINGS
TENTS
UPHOLSTERY
SHOES
ALL TYPES OF SPORTING EQUIPMENT
NEEDLE
FERRULE
CHUCK
THREADED
LOCK
POST
for the

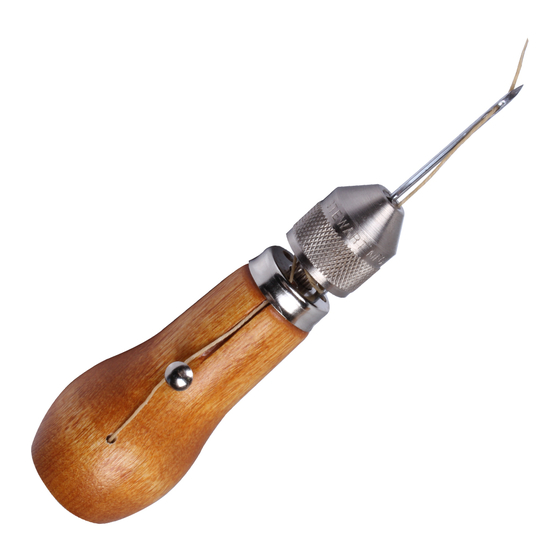

Speedy Stitcher
Sewing Awl
SAILS
AUTO TOPS
SADDLES
HANDBAGS
THREADED
GROOVE
TENSION
BOBBIN
POST
END
CAP

Advertisement

loading
Need help?

Need help?

Do you have a question about the Speedy Stitcher Sewing Awl and is the answer not in the manual?

Questions and answers

Summary of Contents for Speedy Stitcher Speedy Stitcher Sewing Awl

  • Page 1 Instruction Supplies for the Speedy Stitcher Needles No.130 - #4 Waxed Polyester Thread (Tan) Guide No. 130A No. 150 Coarse No. 170 Fine for the -#8S No. 140 Coarse Speedy Stitcher No. 160 Fine Sewing Awl 30 Yd. Skein 180 Yd. Tube 180 Yd.
  • Page 2 TO SET UP • Unscrew chuck lock to find needles • Pull end of thread from bobbin through hole in handle • Loop thread around tension post as shown in Detail ‘A’. • Continue thread along handle groove and through ferrule hole as illustrated.
