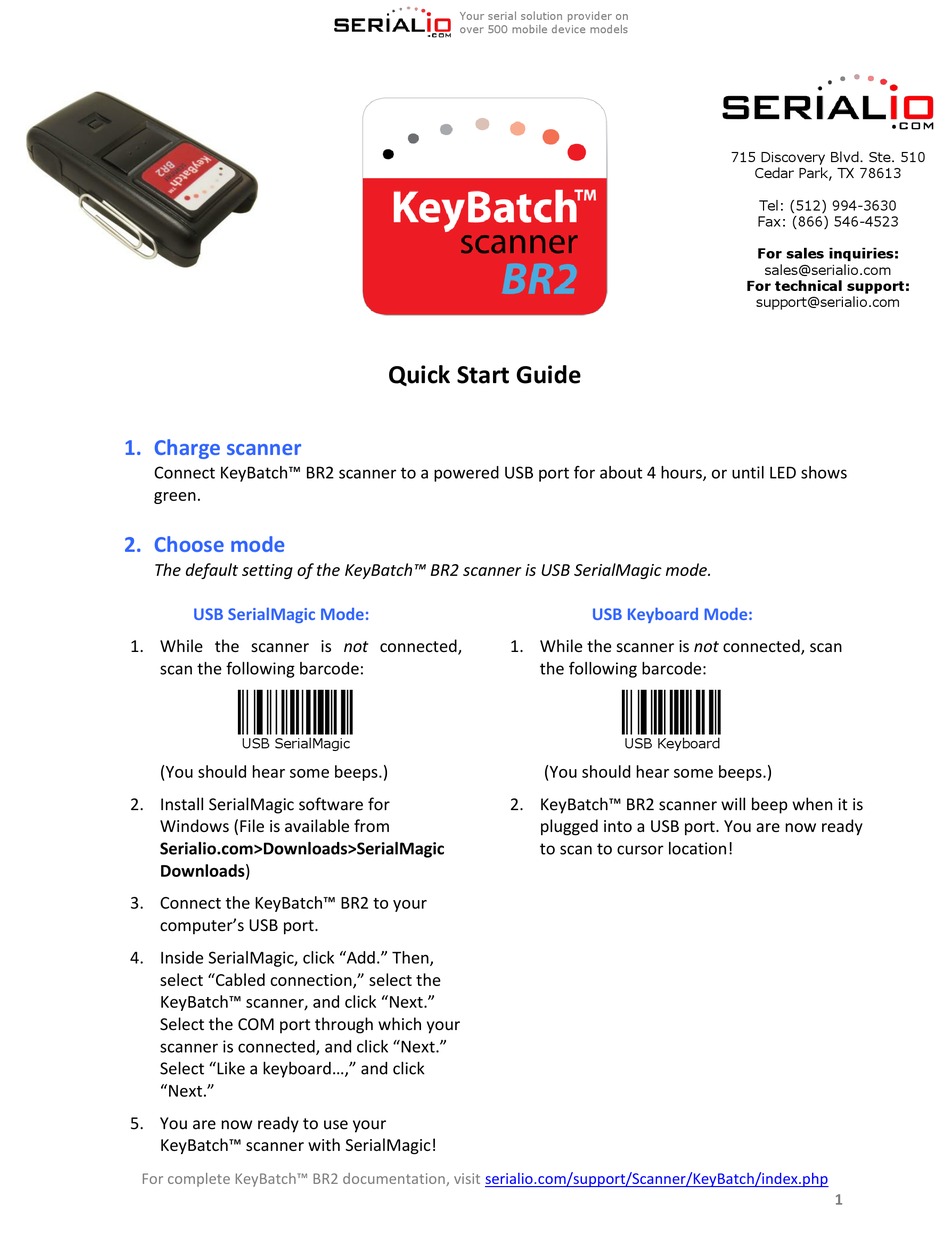

Serialio KeyBatch BR2 Quick Start Manual

1. Charge scanner
Connect KeyBatch™ BR2 scanner to a powered USB port for about 4 hours, or until LED shows
green.
2. Choose mode
The default setting of the KeyBatch™ BR2 scanner is USB SerialMagic mode.
USB SerialMagic Mode:
1. While the scanner is not connected,
scan the following barcode:
ÉÁC01mËÍ
USB SerialMagic
(You should hear some beeps.)
2. Install SerialMagic software for
Windows (File is available from
Serialio.com>Downloads>SerialMagic
Downloads)
3. Connect the KeyBatch™ BR2 to your
computer's USB port.
4. Inside SerialMagic, click "Add." Then,
select "Cabled connection," select the
KeyBatch™ scanner, and click "Next."
Select the COM port through which your
scanner is connected, and click "Next."
Select "Like a keyboard...," and click
"Next."
5. You are now ready to use your
KeyBatch™ scanner with SerialMagic!
For complete KeyBatch™ BR2 documentation, visit
Your serial solution provider on
over 500 mobile device models
Quick Start Guide
1. While the scanner is not connected, scan
the following barcode:
(You should hear some beeps.)
2. KeyBatch™ BR2 scanner will beep when it is
plugged into a USB port. You are now ready
to scan to cursor location!
serialio.com/support/Scanner/KeyBatch/index.php
715 Discovery Blvd. Ste. 510
Cedar Park, TX 78613
Tel: (512) 994-3630
Fax: (866) 546-4523
For sales inquiries:
sales@serialio.com
For technical support:
support@serialio.com
USB Keyboard Mode:
ÉÁSUQËÍ
USB Keyboard
