Hydrel TPS RGB SERIES Installation Instructions

INSTALLATION INSTRUCTIONS
p
!
WARNING
Lamp information is found inside luminaire. Removing the reflector may be necessary to view lamp information.
LES FILS D'ALIMENTATION DOIVENT CONVENIR POUR 90°C
1. Please refer to ABL General Warnings Form no. 503.204 and 503.203.
2. Be sure the power is off at the supply source.
Mount the Fixture Yoke to mounting accessory, using the SS3/8-16 fastener (D) provided.
3.
(Mounting accessories sold separately)
Route fixture cord and data cord through cord seals provided with Hydrel mounting accessory
4.
(except wall plates, those require remote junction boxes by others - see page 2). Tighten the cord
seal outer nut and then thread the cord seals into the mounting accessory. Make all wiring
connections to the fixture within the mounting accessory. Note: Make sure that there is enough
cord left free for aiming of the fixture.
CAUTION: DMX data cord comes insulated, it is not recommended that this be cut in the field or it will expose the bare metal shield wire which
can then short to ground causing data transmission issues up to complete fixture failure. Cutting the data cable in the field will void warranty.
©2016 Acuity Brands Lighting, Inc.
6/27/2017
INS-TPS_RGB
TPS RGB SERIES
ATTENTION: DISCONNECT POWER BEFORE SERVICING
- TO REDUCE RISK OF FIRE, USE APPROPRIATE LAMP
SUITABLE FOR WET LOCATION
MINIMUM 90°C SUPPLY CONDUCTORS
Fixture comes standard with 10' of STW cable
and 10' of DMX data cable.
NOTE: Hydrel Reserves The Right To Modify Specification Without Notice.
Any dimension on this sheet is to be assumed as a reference dimension:
"Used for information purposes only. It does not govern manufacturing or
inspection requirements." (ANSI Y14.5-1973)
Installation should be performed by a qualified
electrician in accordance with the National Electrical Code

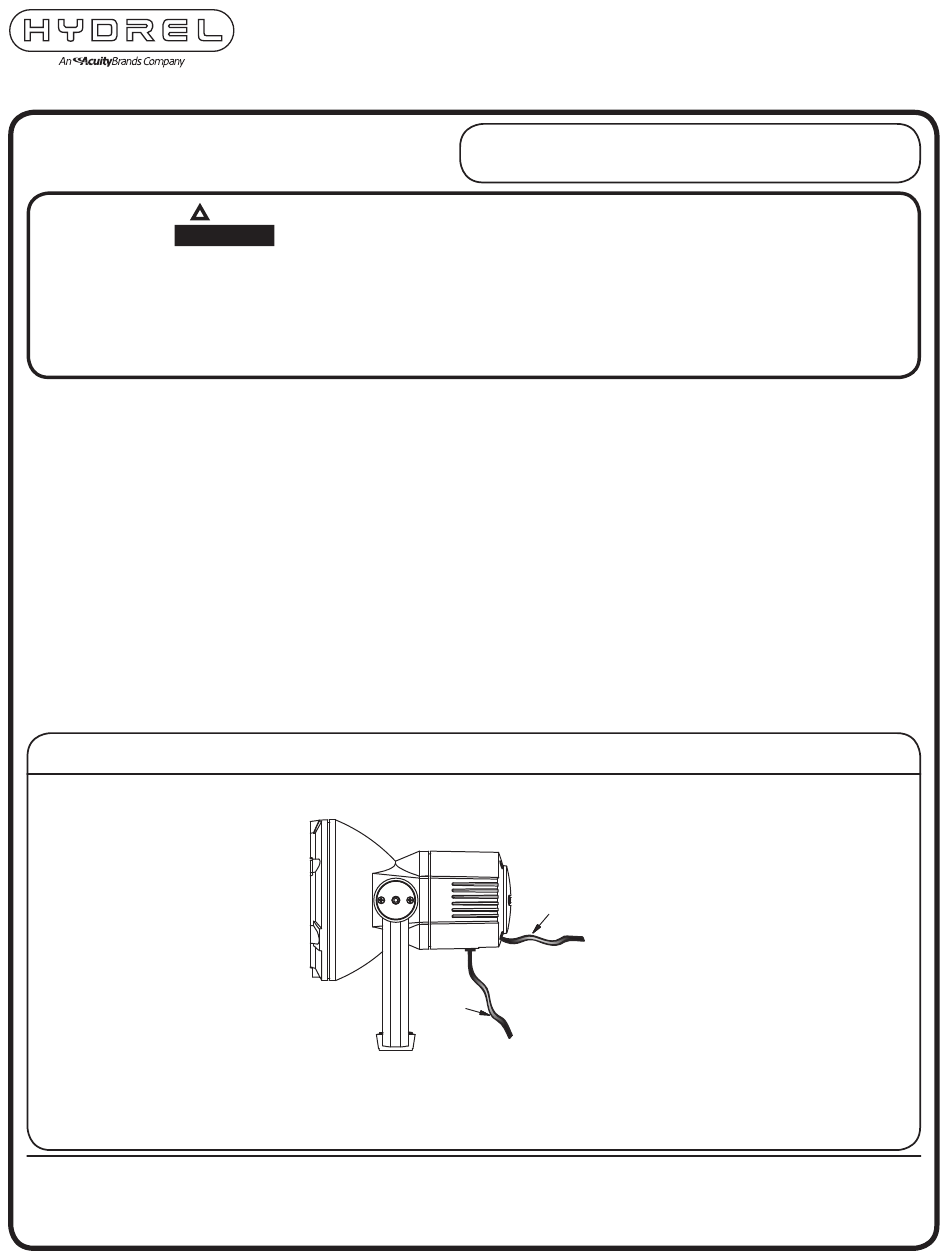

LINE
DMX
YOKE MOUNT
and relevant local codes.
