NOTE:
This Calibrator is suitable to confirm the accuracy of tachometers only. A separate test unit is
required to verify that Tachometers will work at a specified distance from a target
WARNING This equipment is class I and must be earthed.

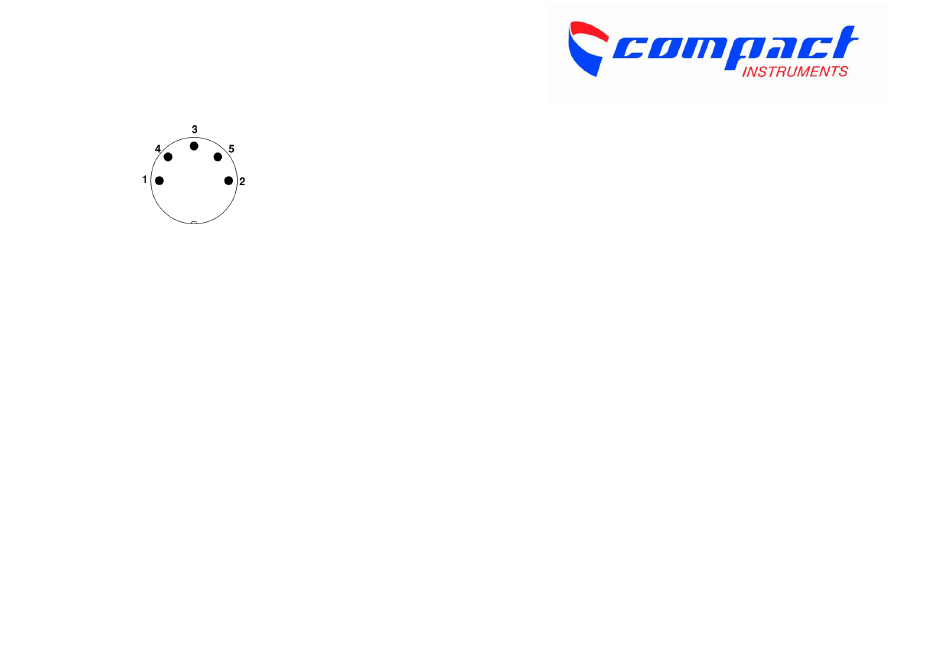

Output Din Connector (front view)
Pin 1
LED Drive (-ve)
Pin 2
Pulse Out ( 0 -– 2.5v)
Pin 3
5v in from "CT" (drives internal LED if present)
Pin 4
LED Drive (+ve)
Pin 5
Ov from "CT" (drives internal LED if present)
MT/EXT
Green = 0v
Yellow = open collector pulse output
©
Compact Instruments Ltd November 1998
www.compactinstruments.co.uk
email: sales@compactinstruments.co.uk
Document No: 13713 Iss 3
Operating Instruction
Model MT2013
Tachometer Calibrator
Phone: (0044)
0 1204-532544
Fax
: (0044)
0 1204-522285
Advertisement
Table of Contents
Summary of Contents for Compact Instruments MT2013
- Page 1 LED Drive (+ve) Pin 5 Ov from "CT" (drives internal LED if present) MT/EXT Green = 0v Yellow = open collector pulse output © Compact Instruments Ltd November 1998 www.compactinstruments.co.uk Phone: (0044) 0 1204-532544 email: sales@compactinstruments.co.uk : (0044) 0 1204-522285...
- Page 2 (13740) to the DIN Output socket and connect the jack plug to the Remote Sensor Socket on the The MT2013 Tachometer Calibrator has all the features required to calibrate any optical tachometer. In addition the unit receiving Tachometer.
