Plasmatronics Dingo DRC User Manual

Dingo Series Remote Control

Description

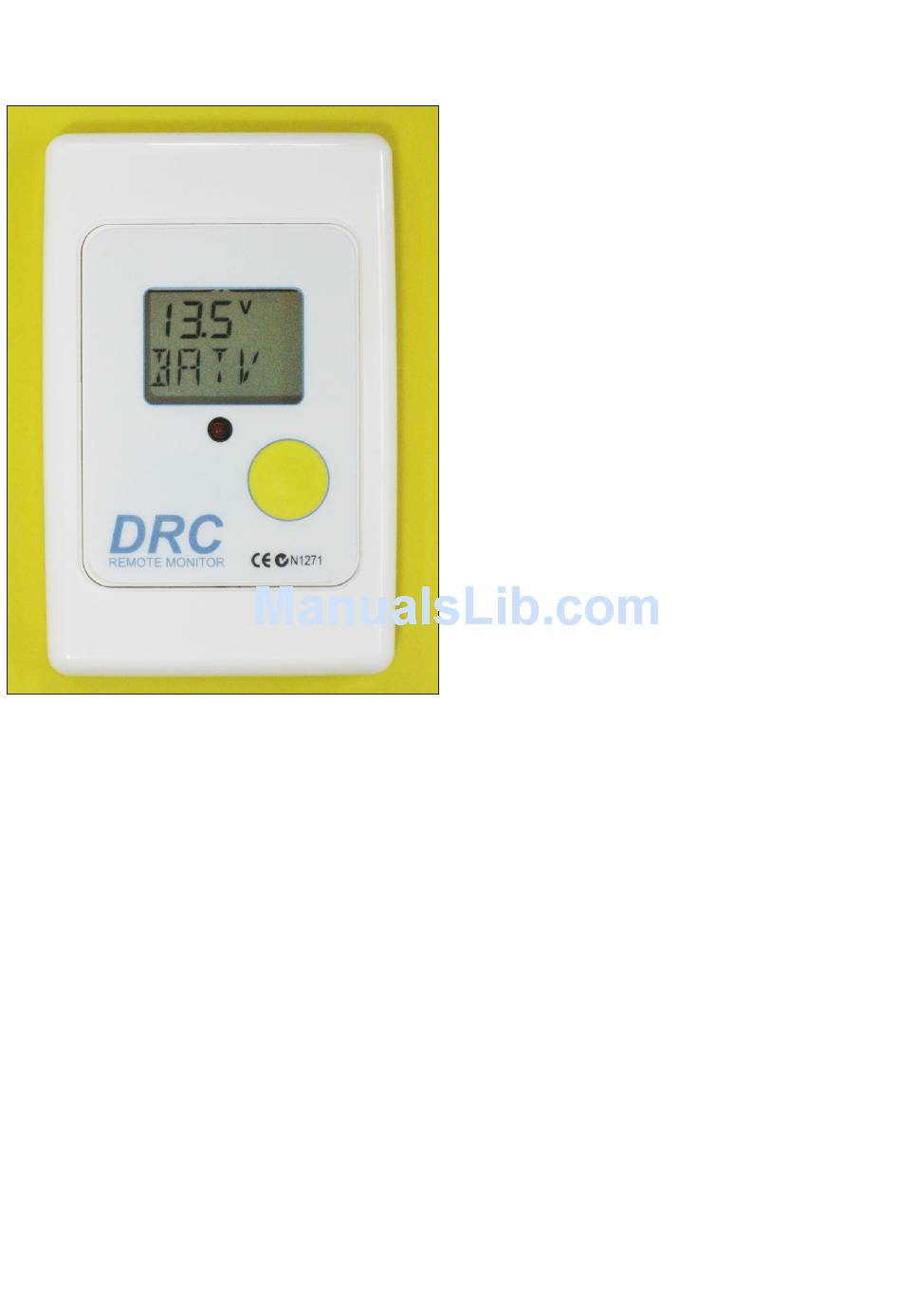

The Dingo Remote Control (DRC) is a device
which allows remote user access to a Dingo
series charge controller.
It displays exactly the same information as the
Dingo screen, and the DRC button behaves
in exactly the same way as the button on the
Dingo controller.
This means you can use the DRC for everything
you would normally do at the Dingo itself, only
in a more convenient location. You can access
all the information and adjust all the settings just
as you can on the Dingo itself.

New Features

The DRC has two additional features to those
on the Dingo.These are automatic LED back-
lighting and an audible Alarm.

LED Back-lighting

The DRC display is back lit with yellow LED
light. The back-light will turn off if you have not
pushed the button for 5 minutes.
If the display is off, then the first button push will
turn the display back on, but not do anything
else. Subsequent button pushes work as nor-
mal.

Audible Alarm

The DRC has an audible alarm which is acti-
vated by outputs from the Dingo.
The alarm will be activated when the red led is
on or flashing. This mirrors the alarm led on the
Dingo. To avoid false alarms, the alarm condi-
tion must be present for 30 seconds before the
audible alarm activates.
The alarm will be on if:
a. The battery voltage is below the alarm setting
or
b. The load has been disconnected or is in the
process of disconnecting or reconnecting.
The alarm can be silenced by pressing the
button.
Once the alarm has rung, then it will not reac-
tivate unless the alarm condition has first been
removed by the Dingo for a least 30 seconds.

Enabling alarm operation.

As shipped, the audible alarm is not activated.
The alarm can be activated by pressing the
button and holding it down for 10 seconds. This
can be done in any screen (And the the display
may change during this time). After 10 seconds,
the screen will change to show 'ALMT 0 min'.
The number on the screen is the number of
minutes that the alarm will be allowed to sound.
If set to 0, then the audible alarm is disabled.

Setting alarm time

To adjust the time, do a long push to start the
number flashing. Then use short pushes to
adjust the number. Then a long push to save the
change. The change is saved to the DRC mem-
ory and is not lost if the DRC is disconnected.
When finished, short push to return to normal
operation. The maximum alarm time that can be
selected is 8 minutes.

Installation

The DRC is packaged in a modified CLIPSAL®
2000 series switch plate. This is a standard
electrical fitting and is mounted in the same way
as light switches or power points.
The screws supplied can be used to mount the
