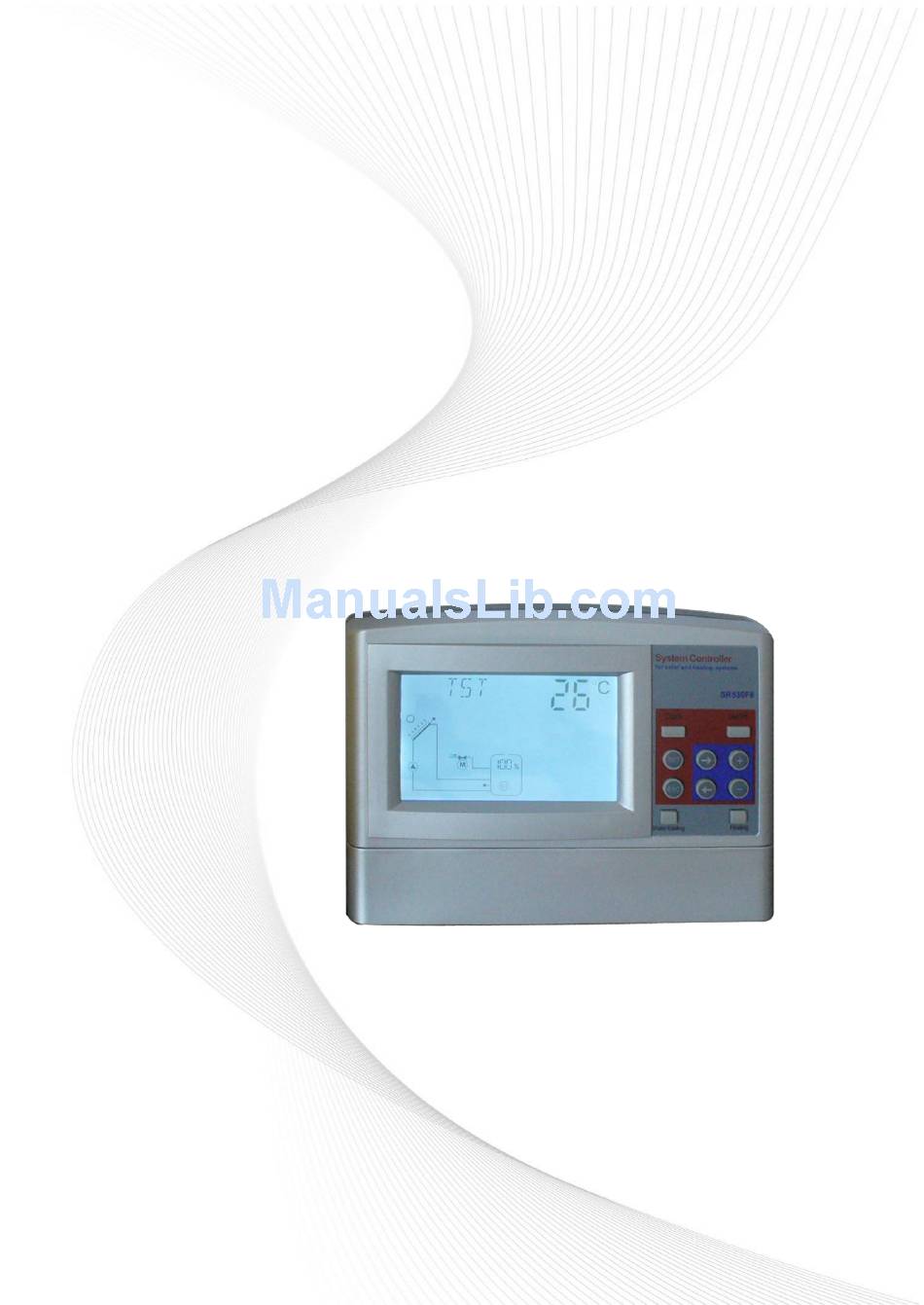

- Page 1 Controller for Solar Hot Water Project Installation and Operating Manual SR530F8 User Manual Please read this manual carefully before using!
-
Page 2: Table Of Contents
SR530F8 user manual Content 1. Safety information ........................3 1.1 Installation and commissioning ..................3 1.2 About this manual ........................ 3 1.3 Liability waiver ........................3 1.4 Description of symbols ....................... 4 2. Controller Installation ......................4 2.1 Installing controller ......................4 2.2 Wire arrangement ........................ - Page 3 SR530F8 user manual 5.5.2 WMOD Water loading mode..................21 5.5.3 STYP selecting the type of the water level sensor............ 22 5.5.4 OVER anti overflow protection function (optional) ............ 23 5.5.5 AUX Temperature difference control function for floor heating ....... 23 5.5.6 AHEA Switch-on/off control of back-up heating system ...........
-
Page 4: Safety Information
SR530F8 user manual 1. Safety information 1.1 Installation and commissioning When laying cables, please ensure that no damage occurs to any of the constructional fire safety measures presented in the building. The controller must not be installed in rooms where easily inflammable gas mixtures are present or may occur. -
Page 5: Description Of Symbols
SR530F8 user manual accidentally placed into operation. 1.4 Description of symbols Safety instruction: The safety instructions in the manual are marked with a warning triangle. They indicate measures, which can lead to personal injury and safety risks. Operation steps: small triangle “►”is used to indicate operation step. -
Page 6: Installing The Pressure Water Level Transmitter
SR530F8 user manual Cable comes from the below hole: Cut the left and right plastic flaps using an appropriate tool (e.g. knife) and break them out of the case. Notes: the flexible wire must be fixed on the case using the clamps ⑥ provided with controller. -
Page 7: Installing Electropolar Water Level Transmitter
SR530F8 user manual Using Honeywell water level transmitter in the controlling system. (Red wire connected on “+”polarity, blue wire connected on “-”polarity). 2.4 Installing electropolar water level transmitter Connection the electropolar water level Electropolar water level sensor transmitter： Red wire of the three wires – connect L2 port 1 White wire of the three wires –... -
Page 8: Advice Regarding The Installation Of Temperature Sensors
SR530F8 user manual Port 1：Connect the red wire Port 2：Connect the white wire Port 3: connect the black wire Communication Port ： Remote control wires connects with A 、 B 、 GND correspondingly. Output ports 1) For power connection:"L" is live wire,"N" is naught wire. -
Page 9: Commissioning
SR530F8 user manual If external inductive effects are existed, e.g. from heavy current cables, overhead train cables, transformer substations, radio and television devices, amateur radio stations, microwave devices etc, then the cables to the sensors must be adequately shielded. -
Page 10: Menu Structure
SR530F8 user manual 3.2 Menu structure Submenu: Through submenu, user can set the parameter as desired value, please check it carefully. - 9 -... -
Page 11: Menu Description
SR530F8 user manual 3.3 Menu description Code Code Code （Main Menu Description (Submenu) (Submenu) menu） DT O Switch-on temperature difference DT F Switch-off temperature difference HIGH TAK1 Water height setting of storage 1 TEMP For set relevant temperatures Frost protection of collector... -
Page 12: System Description
SR530F8 user manual 4 System description System description: Controller compares the temperature between collector （T1）and storage（T2）( bottom part), if the temperature ） difference（DT）rises up to the preset switch-on DT（DT or is over it, circuit pump R1 is triggered ; and storage is ) or when the storage temperature （T3）... -
Page 13: 5．Function Description And Parameters Setup
SR530F8 user manual Inputs and outputs definition： Output Sensor Description Description relay Sensor on the collector For solar circuit pump 1 Sensor on the bottom part of storage 1 For floor heating output Sensor on the upper part of storage... -
Page 14: Dt Temperature Difference
SR530F8 user manual four times to access main menu. 5.2 DT Temperature difference Description: Solar circuit pump R1 is triggered by the temperature difference function, so long as the temperature difference between collector and storage reaches the switch-on DT, solar circuit pump is triggered. -
Page 15: High High、Middle、Low Water Position Level Setup
SR530F8 user manual 5.3 HIGH High、Middle、Low water position level setup Description: This menu is designed for pressure transmitter and used to set the high, middle, low water level, and with it to control the water level in tank. If you use electrode-type sensor, then menu “HIGH”... -
Page 16: Cfr Frost Protection Of Collector
SR530F8 user manual integrated into the entire solar system. But these parameters can also be set individually to cater the special requirements, please carefully observe the operation data of system components after setting. Following submenu can be access though TEMP main menu. -
Page 17: Smx1 Maximum Temperature Of Storage
SR530F8 user manual ►Press “SET” button, default value “04 C” blinks. ►Repress “SET” button to deactivate or activate this function. ►Press “+/-” button to adjust the temperature of frost protection function, adjustable range is （-10 C～10 C） , after function is activated, default set is 4 ►... -
Page 18: Cmn Low Temperature Protection Of Collector
SR530F8 user manual SMX signal displays on screen, it indicates that this function is in activated. 5.4.3 CMN low temperature protection of collector Description: When the actual temperature of collector is below the preset CMN temperature, solar circuit pump is ceased, even when the temperature difference between collector and storage exceeds switch-on temperature difference, solar pump doesn’t work yet. -
Page 19: Max1 Maximum Switch Off Temperature Of Floor Heating
SR530F8 user manual pump is triggered, water is pumped into storage and T3 temperature drops, when T3 is 5 below the preset load temperature, loading pump is ceased. If the storage temperature T3 is always higher than load temperature, then when water level rises up to the highest position, load pump is ceased. -
Page 20: Min1 Minimum Switch On Temperature Of Storage
SR530F8 user manual Setup steps: To access main menu TEMP, then select submenu MAX1, “MAX1 60 C” displays on the screen. ►Press “SET” button, default value “60 C” blinks on the screen. ►Press “+/-”button to adjust the maximal switch-off C ～95... -
Page 21: Fun Auxiliary Function
SR530F8 user manual T7 temperature drops to 2 C， self heating tape is switched-on, when T7 rises up to 5 C， then switch-off the self heating tape. Setup steps: To access main menu TEMP, then select submenu AH1O, “AH1O --” displays on the screen, default set is switch-off this function. -
Page 22: Wmod Water Loading Mode
SR530F8 user manual function needs an extra hot water circulation pump (connect output port R3) and a sensor, which is installed on the return pipe of hot water (connect input port T6). When the temperature signal of sensor T6 is less than the preset turning on temperature of DHW pump, the hot water circulation pump (R3) triggers and works till the temperature exceeds the turning off temperature. -
Page 23: Styp Selecting The Type Of The Water Level Sensor
SR530F8 user manual ►Press “+/-” button, to select the loading mode. ► Press “ESC” button to exit the menu or wait for 20 seconds to exit automatically, parameters are saved automatically. 5.5.3 STYP selecting the type of the water level sensor... -
Page 24: Over Anti Overflow Protection Function (Optional)
SR530F8 user manual 5.5.4 OVER anti overflow protection function (optional) Description: A extra floating device can be installed on the top of solar tank ( connect terminal port “K”), when water level rises to the position of this floating device, then the contact switch of floating device is open to stop the water filling pump. -
Page 25: Ahea Switch-On/Off Control Of Back-Up Heating System
SR530F8 user manual ►Press “SET” button, default “AUX OFF” blinks on the screen. ►Repress “SET” button, to activate this function, “AUX ON” displays on the screen. ► Press “ESC” button to exit the menu or wait for 20 seconds to exit automatically, parameters are saved automatically. -
Page 26: Thea Timing Heating
SR530F8 user manual heater, gas or oil boiler etc, this controller can control to trigger those devices, when the temperature of upper part of storage is lower than the default switch-on temperature , the back-up heating devices will be triggered, and when the temperature of upper part of storage rises up to the default switch-off temperature, the back-up heating devices is ceased to heat. - Page 27 SR530F8 user manual this time section, switch-on temperature is 40 C; switch-off temperature is 45 The second schedule: from 10:00 to 10:00 am, it means there is no back-up heating in this time. The third schedule: back-up heating function starts at 17:00 and ends at 22:00 pm. Within this time section, the switch-on temperature is 50 C;...
- Page 28 SR530F8 user manual ►Repress “SET” button, temperature “40℃” blinks on screen ►Press “+”“-” button, to set the switch-on temperature of heating ►Then, Press “ESC” to exit this set ►Press button “+”, “tH 1F 05:00” displays on screen, the switch-off time and temperature for the first schedule of heating function can be set.
-
Page 29: Twat Timing Water Loading
SR530F8 user manual ►Repress “SET” button, temperature “55℃” blinks on screen ►Press “+”“-” button, to set switch-off temperature of heating ►Press “ESC” to exit this set program, or wait for 20 seconds to exit automatically, parameters are saved automatically. ------------------------------------------------------------------- ►Press button “+”, “tH 3O 17:00”... - Page 30 SR530F8 user manual - If pressure transmitter is selected to measure the water level, then the “CM” is used as the measure unit of water level in menu. - If electrode sensor is selected to measure the water level, then “%” is used as the measure unit in the menu like 25%, 50%, 75%, 100% etc.
- Page 31 SR530F8 user manual ►Press button “+”, “tW3 00:00” displays on the screen, the switch-on time and water level for the third schedule of water loading function can be set. ► Press “SET” button, “00” of hour time blinks on the screen ►Press “+”“-”...
-
Page 32: Tcyc Time Or Temperature Controlled Dhw Pump
SR530F8 user manual ► Press “SET” button, “00” of hour time blinks on the screen ►Press “+”“-” button to adjust hour of time ► Press “SET” button, “00” of minute time blinks on the screen ►Press “+”“-” button to adjust minute of time ►... - Page 33 SR530F8 user manual The sixth time section: pump works at 10:00 and stops at 00:00. If user wants to switch-off any time section, then just set the start time and close time with same time, e.g. starts at 10:00 and close also at 10:00.
- Page 34 SR530F8 user manual ►Repress “SET” button, time“15MIN” blinks on screen ►Press “+”“-” button, to set the interval time of DHW pump. ►Press “ESC” to exit this set program, or wait for 20 seconds to exit automatically, parameters are saved automatically ------------------------------------------------------------------------------------------------------------------------- ►Press button “+”, “tC 2O 10:00”...
- Page 35 SR530F8 user manual ►Press “+”“-” button, to set the running time of DHW pump. ►Press “ESC” to exit this set program ►Press button “+”, “tC 3F 22:00”displays on screen, the switch-off time for the third schedule of DHW pump function can be set.
- Page 36 SR530F8 user manual parameters are saved automatically ------------------------------------------------------------------------------------------------------------------------- ►Press button “+”, “tC 5O 00:00” displays on screen, the switch-on time for the fifth schedule of DHW pump function can be set. ►Press “SET” button, “00” of hour time blinks on screen.
-
Page 37: Timo Timer Function
SR530F8 user manual switch-off time for the sixth schedule of DHW pump function can be set. ►Press “SET” button, “00” of hour time blinks on screen. ►Press “+”“-” button to adjust hour of time ►Repress “SET” button, “00” of minute time blinks on screen ►Press “+”“-”... - Page 38 SR530F8 user manual ►Press “+”“-” button to adjust minute of time ►Then, Press “ESC” to exit this set, or wait for 20 seconds to exit automatically, parameters are saved automatically. ------------------------------------------------------------------------------------------------------------------------- ►Press button “+”, “tM2O 00:00” displays on the screen, the switch-on time for the second schedule of R7 output can be set.
-
Page 39: Hnd Manual Mode
SR530F8 user manual ►Press “+”“-” button to adjust minute of time ►Then, Press “ESC” to exit this set, 5.10 HND Manual mode When using this controller first time or when debugging this controller, output of this controller （R1，R2，R3，R4，R5,R6,R7,）can be triggered manually. Manually “On, OFF”... -
Page 40: Pass Password Setting
SR530F8 user manual ________________________________________________________________________ ►Press “+” button, “HND5 off” displays on the screen, R5 output manually set ►Press “SET” button, “HND5 on” displays on the screen, R5 output is switched-on ►Repress “SET” again, “HND5 off” displays, R5 output is switched-off ►Press “ESC”... -
Page 41: Rset Recovery Factory Setting
SR530F8 user manual ►Press “+”“-” button to enter the fourth digital ►Press “SET” button, “PWDN 0000” displays on the screen, ask for entering a new password, doing like above to enter the new password ►Press “SET” button, “PWDG 0000” displays on the screen, ask for reentering the new password, doing like above to reenter the new password, “PWOK”... -
Page 42: Manual Heating
SR530F8 user manual 5.14 Manual heating Description: Electrical heater, gas or oil boiler can be as back-up devices in a solar system, this controller can achieve constant temperature controlling, when controller gets temperature signal of top part tank (T3) is 5 C below the preset temperature, back-up heating will be triggered. -
Page 43: Temperature Check
SR530F8 user manual After 20 seconds, this function is activated, signal displays on the screen, ►Press “water loading” button again, to switch-off manual water loading function. Note: manual water loading is one time function. After manual water loading is triggered, when water level rises up to the preset level, manual water loading ceases, and manual water loading function will be deactivated automatically. -
Page 44: Pt1000/Ntc10K Resistance Value
SR530F8 user manual Error message on Meaning Cause of error Error rectification LCD screen T1 sensor problem Open or short circuit Check resistance value, replace T2 sensor problem Open or short circuit Check resistance value, replace T4 sensor problem Open or short circuit... -
Page 45: Quality Guarantee
SR530F8 user manual NTC 10K B=3950 resistance value ℃ Ω 33620 20174 12535 8037 5301 3588 2486 1759 1270 8. Quality Guarantee Manufacturer provides following quality responsibilities to end-users: within the period of quality responsibilities, manufacturer will exclude the failure caused by production and material selection. -
Page 46: Delivery Scope
SR530F8 user manual 10. Delivery scope Description Quantity Controller Operation manual PT1000 sensor (size：φ6*50mm,cable length1.5m） NTC10K（size：φ6*50mm,cable length 3 m） Thermal well (1/2’) Electro polar water level sensor Pressure water level transmitter ( optional) Grundfos pressure sensor ( optional) Appendix1: （SR530F8 type B）...
