SyncMaster 220TN
Install driver
Install programs

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SyncMaster 220TN and is the answer not in the manual?

Questions and answers

Related Manuals for Samsung SyncMaster 220TN

Summary of Contents for Samsung SyncMaster 220TN

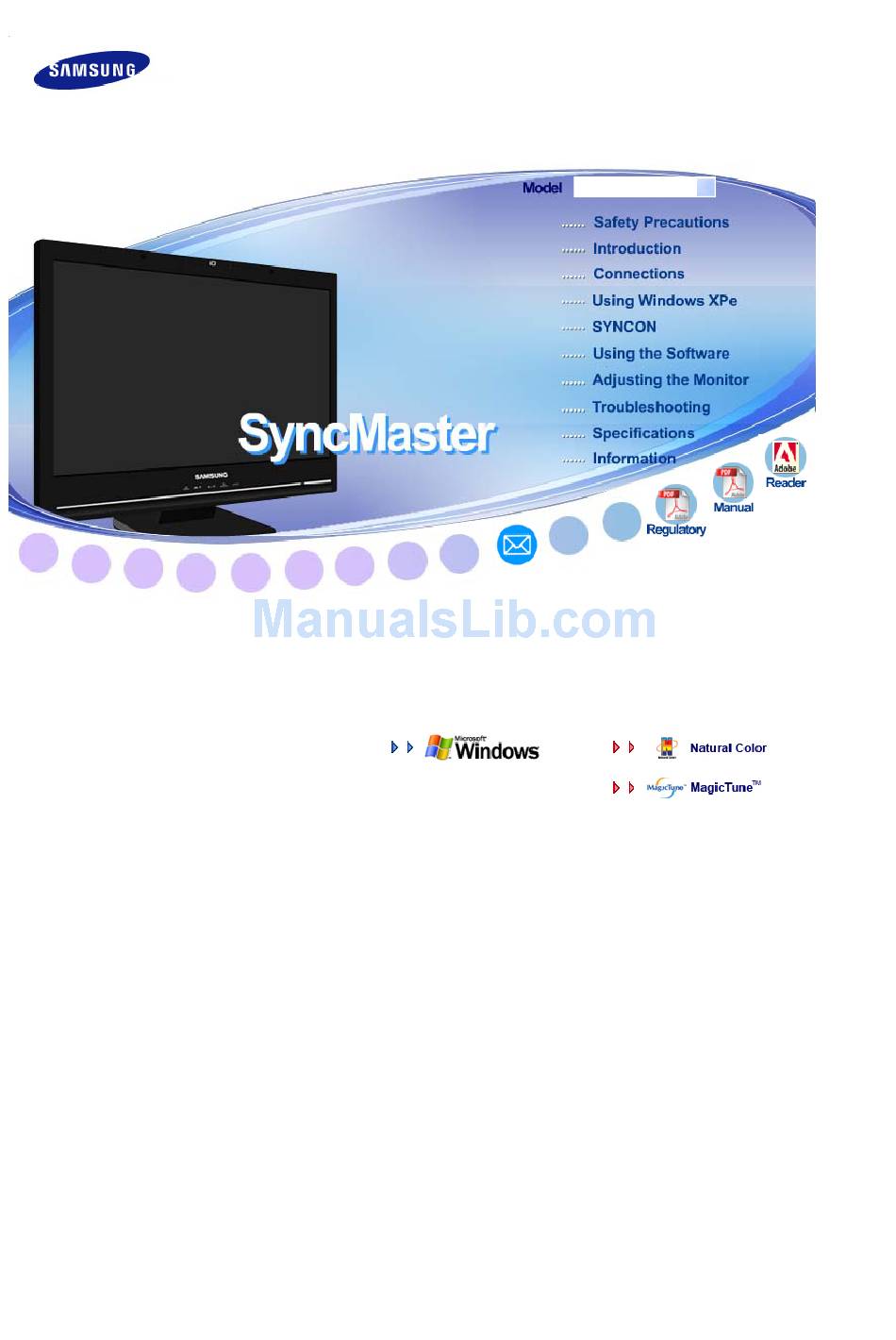

  • Page 1 SyncMaster 220TN Install driver Install programs...
  • Page 2 Notation Failure to follow directions noted by this symbol could result in bodily harm or damage to the equipment. Prohibited Do not disassemble Do not touch Power When not used for extended period of time, set your computer to DPM. If using a screen saver, set it to active screen mode.
  • Page 3 This may cause electric shock or fire. Do not pull the plug out by the wire nor touch the plug with wet hands. This may cause electric shock or fire. Use only a properly grounded plug and receptacle. An improper ground may cause electric shock or equipment damage. ( Class l Equipment only.) Insert the power plug firmly so that it does not come loose.
  • Page 4 To disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the mains plug shall be readily operable. This may cause electric shock or fire. Installation Be sure to contact with heavy dust, high or low temperatures, high humidity, and exposed to chemical substances and where it will be operated for 24 hours such as at airports, train stations etc.
  • Page 5 Otherwise, this may cause fire. Keep any heating devices away from the power cable. A melted coating may cause electric shock or fire. Do not install the product in places with poor ventilation, for instance, a bookshelf, closet, etc. Any increase in the internal temperature may cause fire. Put down the monitor carefully.

  • Page 6: Cleaning And Using

    Cleaning and Using When cleaning the monitor case or the surface of the TFT-LCD screen, wipe with a slightly moistened, soft fabric. Do not spray water or detergent directly onto the monitor. This may cause damage, electric shock or fire. Use the recommended detergent with a smooth cloth.
  • Page 7 Do not remove the cover (or back). This may cause electric shock or fire. Refer to a qualified servicing company. If your monitor does not operate normally - in particular, if there is any unusual sound or smell coming from the monitor- unplug it immediately and contact an authorized dealer or the Service Center.
  • Page 8 Do not place water containers, chemical products or small metal objects on the monitor. This may cause a malfunction, electric shock or fire. If a foreign substance enters the monitor, unplug the power cord and contact the Service Center. Keep the product away from combustible chemical sprays or inflammable substances.
  • Page 9 To ease eye strain, take at least a five-minute break after every hour of using the monitor. Do not install the product on an unstable, uneven surface or a location prone to vibrations. Dropping the product may cause damage to the product or the person carrying it. Using the product in a location prone to vibrations may shorten the lifetime of the product or may cause the product to catch fire.
  • Page 10 Correct Disposal of This Product (Waste Electrical & Electronic Equipment) - Europe only (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life.

  • Page 11: Product Information (Image Retention Free)

    PRODUCT INFORMATION (Image Retention Free) LCD Monitors and TVs may have an image retention when switching from one image to another especially after displaying a stationary image for a long time. This guide is to demonstrate a correct usage of LCD products in order to protect them from Image retention.
  • Page 12 The best way to protect your monitor from Image retention is to set your PC or System to operate a Screen Saver program when you are not using it. Image retention may not occur when a LCD panel is operated under normal conditions. Normal conditions are defined as continuously changing video patterns.

  • Page 13: Package Contents

    Features What is a network monitor? A network monitor can be used for the same purposes as a common monitor. It also provides the functionalities of most computers, such as an Internet connection, creating documents, editing images, via a connection to the host PC over the LAN. In addition, it allows you to connect an external device (DSC, MP3, external storage media) to the USB port and play music, movies and games.
  • Page 14 Contact a local dealer Unpacking Without Stand With Stand Manual Quick Setup Guide (Not available in all locations) Cable Power Cord Sold separately to buy optional items. Monitor Monitor & Simple stand User's Guide, Monitor Driver, Warranty Card MagicTune RGB-IN Cable Natural Color, software USB Cable...

  • Page 15: Your Monitor

    Keyboard (USB) Others Cleaning Cloth This is an accessory that can be added depending on the model. Your Monitor Front Touch a button lightly with your finger. Opens the OSD menu. MENU button [ Also use to exit the OSD menu or return to the previous menu. Adjust buttons [ These buttons allow you to adjust items in the menu.
  • Page 16 buttons. 1) Custom Although the values are carefully chosen by our engineers, the pre- configured values may not be comfortable to your eyes depending on your taste. If this is the case, adjust the brightness and contrast by using the OSD menu. 2) Text For documentations or works involving heavy text.
  • Page 17 Rear The configuration at the back of the monitor may vary from product to product. POWER RGB OUT LAN (LAN Connection Terminal) POWER : Connect the power cord for your monitor to the POWER on the back of the monitor. Connect when using it as a monitor.
  • Page 18 RGB IN AUDIO IN / MIC/ Kensington Lock Connecting Cables for further information regarding cable connections. Connect when using it as a monitor. RGB IN :Connect the signal cable to the 15-pin, D-sub port on the back of your monitor. AUDIO IN : Connect the audio cable for your monitor to the audio port on the back of your computer.

  • Page 19: Connecting Cables

    Connecting Cables Connect to the host PC using a LAN cable Host PC Connect the power cord to the power terminal at the back of the monitor. Connect the mouse and the keyboard to the USB ports. Connect the LAN port on the back of the monitor and the hub. Connect the hub and the LAN port of the host PC.
  • Page 20 Connect the power cord for your monitor to the POWER port on the back of the monitor. Plug the power cord for the monitor into a nearby outlet. Use a connection appropriate for your computer. Using the D-sub (Analog) connector on the video card. - Connect the D-Sub Cable to the RGB IN port on the back of your monitor.

  • Page 21: Connecting Usb

    (LAN Connection Terminal) Connecting USB Connecting USB Turn on your monitor and PC. If you connect the cable to the connector of your PC, the installation programs related to microphone and camcorder are performed automatically. You can use a USB device such as a mouse, keyboard, Memory Stick, or external hard disk drive by connecting them to the port of the monitor without connecting them to the PC.

  • Page 22: Using The Stand

    You can connect and use a keyboard and mouse. You can play a file from a media device. (Examples of media devices: MP3, digital camera, etc.) You can run, move, copy or delete the files on the storage device. (Examples of storage devices: external memory, memory card, memory reader, HDD-type MP3 player, etc.) You can use other USB devices that can be connected to a computer.
  • Page 23 Samsung is not liable for these kinds of accidents. Samsung is not liable for product damage or personal injury when a non-VESA or non- specified wall mount is used or the consumer fails to follow the product installation instructions.
  • Page 24 What is XPe Client? An Microsoft Windows XP Embedded(XPe) client uses the Microsoft Windows XP Embedded operating system. When an XPe client is connected to a Citrix ICA server or another server that can provide the Microsoft RDP service, data for the keyboard, mouse, audio/video and display are transmitted through the network between the client and the server.
  • Page 25 Windows XP Embedded Desktop User When a user logs in, the User Desktop appears, as shown in the figure below. The default icons that appear on the User Desktop are Citrix Program Neighborhood, Remote Desktop Connection and Internet Explorer. You can also run this connection from the Start menu. The audio volume icon, VNC server icon and system time are displayed on the User Taskbar.
  • Page 26 Programs - XPe Client is a client/server-based computing platform. On this platform, the client accesses the server each time it needs a program and it only receives the user interface screens from the server. Hence, various programs, such as ICA, RDP, and VNC, which are installed on a XPe Client, are used to help the client access the server and perform user tasks.
  • Page 27 2. Type the connection name and the server name (IP address or DNS name). 3. Configure the degree of compression for the data to be sent and received, and the degree of reliability for sessions. 4. To login to the server automatically, enter your username, password and domain. If you do not enter them now, you will be prompted to enter them whenever you connect to the server.
  • Page 28 5. You can specify the color and size of the window to be displayed. 6. If a connection succeeds, the server’s desktop appears on the client. In this step, you can make an application run automatically. 7. Click Finish to complete creating the new connection.
  • Page 29 For more information on the ICA Client Program, visit the The Remote Desktop Connection You can control a running terminal server or another computer (Windows 95 or later) remotely through a remote desktop connection. Remote Desktop - Windows XP Professional or Windows 2000/2003 Server must be installed on the computer to be controlled remotely.
  • Page 30 Start a Remote Desktop Session on the Client Once you have enabled your host computer to allow remote connections and installed the client software on a Windows-based client computer, you are ready to start a Remote Desktop session. You must first establish a virtual private network connection or remote access service connection from your client computer to your host computer.
  • Page 31 - Display: The Remote Desktop Connection sends and receives compressed screen data. If you set the resolution and color quality to the high option, the speed may become slow. - Local Resource: Specify whether to use the hard disks and ports.
  • Page 32 - Programs: Specify whether to display the Desktop or run an application whenever you are connected. The default is ‘Desktop’. - Experience: You can select your connection speed, and select and share environmental options.
  • Page 33 4. Click Connect. The Log On to Windows dialog box appears. 5. In the “Log On to Windows” dialog box, type your username, password, and domain (if required), and then click OK. The Remote Desktop window will open and you will see the desktop settings, files, and programs that are on the host computer.
  • Page 34 Internet Explorer A XPe Client includes Internet Explorer. This program is permitted for all users. For more information on Internet Explorer, visit the Microsoft Enhanced Write Filter Enhanced Write Filter (EWF) protects a flash volume from write access and consequently, preserves the durability of the flash device.

  • Page 35: Control Panel

    enabled. After restarting your computer, the configurations and file system information for the client are written to a cache. You can also perform this operation by entering “ewfmgr.exe c: - enable” at the command prompt and restarting your computer. Disable disk write protection and restart your computer - This item is activated when the EWF is running.

  • Page 36: Recover The System

    The C drive is used for the system. If there is less than 3MB of free space available, the client OS cannot operate. Therefore, always ensure that there is a sufficient amount of free space available. EWF can help maintain available space by preventing the C drive being written to directly. D Drive If the size of the flash memory is larger than 1 GB, the D drive (that is, the flash memory) is used as temporary file storage.
  • Page 37 The XPe Client provides a recovery function which allows you to revert to a backed up system when encountering a serious problem. You can back up an OS image which is working normally to USB memory or the PXE server. You can revert to a backed up image when your client has one of these problems: When a system file is deleted accidentally or is corrupted When the client computer is unstable or there is a problem with a device driver...

  • Page 38: Configuring Your Network

    What is SYNCON? List of Features A thin client (computer) with an integrated LCD monitor which has the embedded VoIP(Voice Over Internet Protocol) video call function. - A webcam (web camera), microphone, and speaker integrated into one device SYNCON function - Office document and content sharing during a call - PIP function - Address book and call history management...
  • Page 39 3. In the Local Area Connection Properties window, select Internet Protocol (TCP/IP) and click on Properties. 4. Select Use the following IP address and Use the following DNS server addresses in the General tab in the Internet Protocol (TCP/IP) Properties, enter an IP address and click the OK button as shown below.
  • Page 40 1. Click Start and Run. 2. In the Run window, type 'cmd' and click OK. 3. If the following screen appears, type 'ipconfig' and press the Enter key on the keyboard. The current IP address of your PC will be displayed. If the network connection is unstable or the LAN cable is disconnected, the IP address of the PC will not be displayed.
  • Page 41 1. The main menu allows you to navigate the basic functions of SYNCON sequentially. (In addition, you can right-click the opposite party or group to start a conversation and use the functions available in the displayed menu.) 2. Displays the username for the Instant Message and Call functions. 3.
  • Page 42 Call History Screen 1. Displays the outgoing, incoming, and missed calls. They are sorted in the order of the time that the call was made. 2. Displays the time of calls made. (Outgoing calls) 3. Displays the time of missed calls. (Missed calls) 4.
  • Page 43 Mute - Using this function, you can mute the audio data of a video call. (You can suspend a video call depending on your requirements.) Disconnect - Disconnects an existing call. Call - Makes a call to the opposite party. Send Instant Message - Sends a message to the opposite party.
  • Page 44 Delete All - Deletes all Call history entries. Settings You can configure the basic SYNCON environment using the Tools > Settings menu item. General 1. General Settings 2. When checked, SynCon starts automatically when Windows starts. 3. When checked, your password is entered automatically in the Login screen. 4.
  • Page 45 User Info 1. User Information Settings 2. This sets the name that appears when you are using the nstant Message or Call function. 3. You can check the IP address of your PC. Video 1. Video Settings 2. Set the video size. 3.
  • Page 46 Camera/MIC 1. Camera/MIC Settings 2. Set the transmission type. 3. Set the brightness and contrast for the camera. 4. PIP Screen Location: Set the location of the PIP screen. (PIP Screen Off, Top Left, Top Right, Bottom Left, Bottom Right) Some functions of the Camera/MIC Settings may be restricted depending on whether the current mode is Server or Non-Server mode.

  • Page 47: Making A Video Call

    Call Control 1. Call Control Settings 2. When checked, call waiting is enabled. 3. When the person being called cannot answer the phone, it enables the call to be forwarded to another user. If you click the checkbox, the Browse item will be activated. 4.
  • Page 48 3. Fix Ratio Button You can fix the aspect ratio of the video window when resizing it using this button. 4. PIP (Picture In Picture) Button You can set up PIP (Picture In Picture) using this button. 5. AV Mute Button Using this button, you can mute the audio of a call.
  • Page 49 and select Call from the displayed menu. 3.Select the person to video call and select Call from the Actions menu in the SYNCON main screen. If the opposite party does not accept the call or is not connected to SYNCON, you cannot hold a video call.
  • Page 50 1. Select 2 or more users to talk to in the SYNCON Phonebook screen by dragging the users with the mouse. Right-click over them and select Conference Call to make a conference call with 2 or more users. 2. You can make a conference call by selecting 2 or more users to talk to by dragging the users with the mouse and selecting [Actions] >...
  • Page 51 3. The Office Sharing window as shown in the figure below is displayed until the opposite party accepts sharing the office file. If you click Cancel, sharing the office file is cancelled. File sharing can be activated by selecting Office Sharing from the Actions menu in the SYNCON main screen when a video call is connected to the opposite party.
  • Page 52 Exiting Office Viewer 1. Click the Close button of the Office Viewer. 2. The Disconnect window is displayed as shown in the figure below. Click OK. The user who shared the file can exit Office Viewer. Managing Persons and Groups Adding and Deleting a Person or Group Entry Adding a Person Entry...
  • Page 53 1. Select Add Person from the Tools menu. 2. In the Add Person window, enter the information for the person you wish to call and click OK. 3. You can check that the person is added to the phonebook.
  • Page 54 You can add a person using the menu displayed when right-clicking on the Phonebook screen. Adding a Group Entry 1. Select Add Group from the Tools menu. 2. In the Add Group window, enter a group name and click OK.
  • Page 55 3. You can check that the group is added to the phonebook. You can add a group using the menu displayed when right-clicking on the Phonebook screen. Deleting a Person Entry...
  • Page 56 1. Select and right-click the entry you wish to delete and select Delete from the displayed menu. 2. Click OK. You can delete an entry by clicking on it and selecting Delete from the Tools menu. Deleting a Group...
  • Page 57 1. Select and right-click the group entry you wish to delete and select Delete Group from the displayed menu. 2. Click OK. You can delete a group entry by clicking on it and selecting Delete Group from the Tools menu. Editing/Viewing the Information for a Person Editing the Information for a Person...
  • Page 58 1. Select and right-click the entry you wish to edit and select Edit from the displayed menu. 2. In the Edit Person window, change the information and click OK. You can edit an entry by clicking on it and selecting Edit from the Tools menu. Renaming a Group 1.
  • Page 59 menu. 2. Change the group name and click OK. 3 . The group's name is changed. You can rename a group entry by clicking on it and selecting Edit Group from the Tools menu. Viewing the Information for a Person 1.
  • Page 60 2. The Info window displays the information for the selected person. You can view the information for a person by clicking on that entry and selecting Info from the Tools menu.

  • Page 61: Monitor Driver

    Choose your monitor model in the model list, then click the "OK" button. If you can see following message window, then click the "Continue Anyway" button. Then click the ® "OK" button (Microsoft Windows :http://www.samsung.com/ (Worldwide) http://www.samsung.com/monitor (U.S.A) http://www.sec.co.kr/monitor (Korea) http://www.samsungmonitor.com.cn/...
  • Page 62 This monitor driver is under certifying MS logo, and this installation doesn't damage your system. The certified driver will be posted on Samsung Monitor homepage http://www.samsung.com/ Monitor driver installation is completed. Installing the Monitor Driver (Manual) Windows Vista Windows XP Windows 2000 Microsoft®...
  • Page 63 This monitor driver is under certifying MS logo, and this installation doesn't damage your system. The certified driver will be posted on Samsung Monitor homepage http://www.samsung.com/ Click "Update Driver…" in the "Driver" tab. Check the "Browse my computer for driver software" checkbox and click "Let me pick from a list of device drivers on my computer".
  • Page 64 Click "Close"→ "Close" → "OK" → "OK" on the following screens displayed in sequence. ® ® Microsoft Windows XP Operating System Insert the CD into the CD-ROM drive. Click "Start" → "Control Panel" then click the "Appearance and Themes" icon. Click "Display"...
  • Page 65 Click the "Properties" button on the "Monitor" tab and select "Driver" tab. Click "Update Driver." and select "Install from a list or." then click the "Next" button. Select "Don't search ,I will." then click "Next" and then click "Have disk". Click the "Browse"...
  • Page 66 "OK" button. This monitor driver is under certifying MS logo, and this installation doesn't damage your system. The certified driver will be posted on Samsung Monitor homepage http://www.samsung.com/ Click the "Close" button then click the "OK" button continually. Monitor driver installation is completed.
  • Page 67 How to install Click "Start," "Setting," and then "Control Panel." Double click the "Display" icon. Select the "Settings" tab and click the "Advanced Properties" button. Choose "Monitor." Case1 : If the "Properties" button is inactive, it means your monitor is properly configured. Please stop installation Case2 : If the "Properties"...

  • Page 68: Natural Color

    Samsung Electronics in association with Korea Electronics & Telecommunications Research Institute (ETRI). This is only available for Samsung monitors and ensures that the color of the images on the monitor are the same as the printed or scanned images.
  • Page 69 8. The "Installation Status" window appears. 9. Click "Finish." 10. When the installation is complete, the MagicTune™ executable icon appears on your desktop. Double-click the icon to start the program. MagicTune™ execution icon may not appear depending on specification of computer system or monitor. If that happens, press F5 Key.
  • Page 70 Visit the MagicTune™ website for technical support for MagicTune™, FAQs (questions and answers) and software upgrades.

  • Page 71: Control Buttons

    Control Buttons Opens the OSD menu. Also use to exit the OSD menu or return to the previous menu. These buttons allow you to adjust items in the menu. Press this button to activate a highlighted menu item. When the 'AUTO' button is pressed, the Auto Adjustment screen appears as shown in the [AUTO] animated screen on the center.
  • Page 72 Menu When the 'AUTO' button is pressed, the Auto Adjustment screen appears as shown in the animated screen on the center. Auto adjustment allows the monitor to self-adjust to the incoming Analog signal. The values of fine, coarse and position are adjusted automatically. (Available in Analog mode only) To make the automatic adjustment function sharper, execute the 'AUTO' function AUTO...
  • Page 73 When pressing the MENU button after locking the OSD Menu This is the function that locks the OSD in order to keep the current states of settings or prevent others from adjusting the current settings. Locked : Hold down the menu button for more than five seconds to activate the OSD adjustment lock function.
  • Page 74 Menu Push the MagicBright™ button to circle through available preconfigured modes. MagicBright™ - Six different modes (Custom/Text/Internet/Game/Sport/Movie/) Volume Menu Volume When OSD is not on the screen, push the button to adjust volume. SOURCE Description Description...

  • Page 75: Osd Function

    Menu SOURCE Selects the Video signal while the OSD is off. (Analog/Client) OSD Function Picture Brightness MagicColor Color Image Coarse Language Setup SynCon Information Picture Description Contrast Color Tone Color Control Gamma Fine Sharpness H-Position H-Position V-Position Transparency Image Reset Color Reset V-Position Display Time...
  • Page 76 Menu You can use the on-screen menus to change the brightness according to personal preference. Brightness MENU → → You can use the on-screen menus to change the contrast according to personal preference. Contrast → → MENU Color Menu Description →...
  • Page 77 MagicColor is a new technology that Samsung has exclusively developed to improve digital image and to display natural color more clearly without disturbing image quality. Returns to the original mode. Demo The screen before applying MagicColor appears MagicColor on the right and the screen after applying MagicColor appears on the left.
  • Page 78 MENU → → Removes noise such as horizontal stripes. If the noise persists even after fine tuning, repeat it after adjusting the frequency (clock speed). Fine (Available in analog mode only) MENU → → Changes the clearance of image. Sharpness MENU →...
  • Page 79 You can change the vertical position where the OSD menu appears on your monitor. V-Position MENU → → Change the transparency of the background of the OSD. Transparency MENU → → The menu will be automatically turned off if no adjustments are made for a certain time period.
  • Page 80 Menu Description Shows a video source, display mode on the OSD screen. Information MENU →...

  • Page 81: Check List

    Check List Before calling for service, check the information in this section to see if you can remedy any problems yourself. If you do need assistance, please call the Symptom Check List No images on the Is the power cord screen.
  • Page 82 I cannot see the On Have you locked Screen Display. the On Screen Display (OSD) Menu to prevent changes? The screen shows Is the screen strange colors or just displaying only one black and white. color as if looking at the screen through a cellophane paper? Have the screen...
  • Page 83 Some graphic cards may not support your monitor. When you have a problem with the graphic card, visit our website to check the compatible graphic card list provided. http://www.samsung.com/monitor/magictune Download the latest program. The program can be downloaded http://www.samsung.com/monitor/magictune Reboot the computer after installing the program for the first time.
  • Page 84 Internet in the that indicates that the LAN connection is disconnected. In this case, connect Client screen. using another LAN cable. 2) Check if the settings of the 'Network' tab of 'Settings' have been properly set up. The default setting is "DHCP". If your network uses a static IP address, select 'Use the following IP address' and then enter the appropriate IP address information.
  • Page 85 How can I set the Power Saving function? How can I clean the outer case/LCD Panel? Self-Test Self-Test Feature Check Warning Messages Your monitor provides a self test feature that allows you to check whether your monitor is functioning properly. Self-Test Feature Check Turn off both your computer and the monitor.
  • Page 86 Environment The location and the position of the monitor may influence the quality and other features of the monitor. If there are any sub woofer speakers near the monitor, unplug and relocate the woofer to another room. Remove all electronic devices such as radios, fans, clocks and telephones that are within 3 feet (one meter) of the monitor.

  • Page 87: Specifications

    Specifications General Model Name SyncMaster 220TN LCD Panel Size 22 inch (55 cm) Display area 473.76 (H) x 296.1 (V) Pixel Pitch 0.282 (H) x 0.282 (V) Synchronization Horizontal 30 kHz ~ 81 kHz Vertical 56 Hz ~ 75 Hz Display Color 16.7 M Resolution...
  • Page 88 Signal Cable 15pin-to-15pin D-sub cable, Detachable Dimensions (W x H x D) / Weight 520.0 X 399.0 X 68.5 mm / 20.5 X 15.7 X 2.7 inch (Without Stand) 520.0 X 452.0 X 202.0 mm / 20.5 X 17.8 X 8.0 inch / 7.9 kg / 17.4 Ibs(With stand) VESA Mounting Interface 100 x 100 mm (For use with Specialty(Arm) Mounting hardware.) Environmental considerations...

  • Page 89: Preset Timing Modes

    PowerSaver (When used as a Network monitor) This monitor has a built-in power management system called PowerSaver. This system saves energy by switching your monitor into a low-power mode when it has not been used for a certain amount of time.
  • Page 90 VESA. 1024 x 768 60.023 VESA, 1280 x 768 60.289 VESA. 1280 x 960 60.000 VESA. 1280 x 63.981 1024 VESA. 1280 x 79.976 1024 VESA.1680 x 1050 64.674 Horizontal Frequency The time to scan one line connecting the right edge to the left edge of the screen horizontally is called Horizontal Cycle and the inverse number of the Horizontal Cycle is called Horizontal Frequency.
  • Page 91 Contact SAMSUNG WORLDWIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center. North America U.S.A 1-800-SAMSUNG (726-7864) CANADA 1-800-SAMSUNG (726-7864) MEXICO 01-800-SAMSUNG (726-7864) Latin America ARGENTINE 0800-333-3733 0800-124-421 BRAZIL 4004-0000 CHILE...
  • Page 92 AUSTRIA 0800-SAMSUNG(726-7864) BELGIUM 0032 (0)2 201 24 18 CZECH REPUBLIC 844 000 844 DENMARK 70 70 19 70 FINLAND 030-6227 515 3260 SAMSUNG(726-7864) FRANCE 08 25 08 65 65 (€ 0,15/Min) 01805-SAMSUNG(726-7864) GERMANY (€ 0,14/Min) HUNGARY 06-80-SAMSUNG(726-7864) ITALIA 800-SAMSUNG(726-7864) LUXEMBURG...
  • Page 93 THAILAND 1800-29-3232, 02-689-3232 TAIWAN 0800-329-999 VIETNAM 1 800 588 889 Middle East & Africa SOUTH AFRICA 0860-SAMSUNG(726-7864 ) TURKEY 444 77 11 800-SAMSUNG (726-7864) U.A.E 8000-4726 Terms Dot Pitch The image on a monitor is composed of red, green and blue dots. The closer the dots, the higher the resolution.

  • Page 94: For Better Display

    Reproduction in any manner whatsoever without the written permission of Samsung Electronics Co., Ltd. is strictly forbidden. Samsung Electronics Co., Ltd. shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material.
