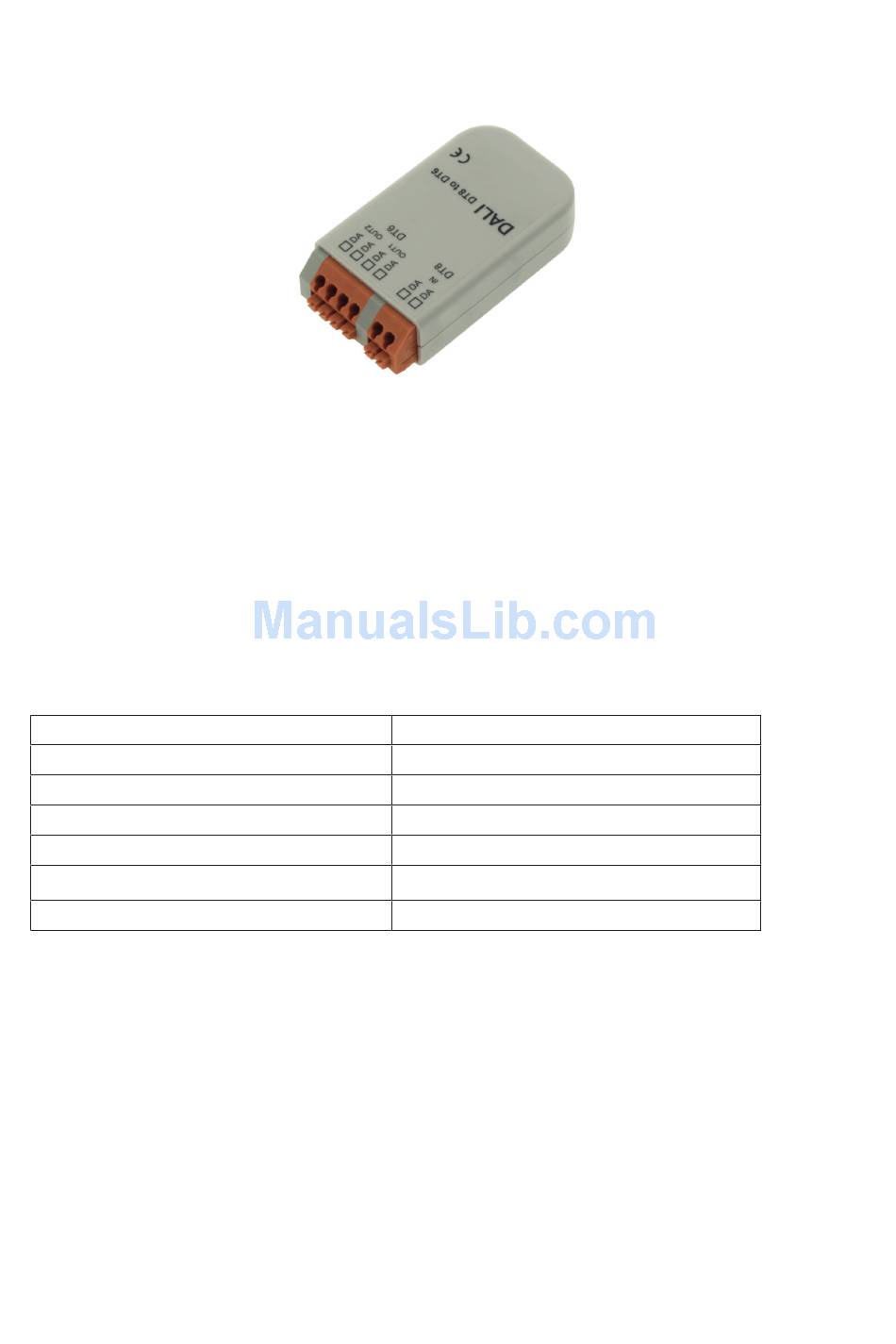

LED DALI DT8 to DT6 converter - User Manual

1. Product Description

DALI-interface module for the conversion of DALI DT8-Tc commands to DALI DT6 commands.
For tunable white control of 2 DALI DT6 1-channel LED power supplies. Das Modul findet in
einer Unterputzdose Platz. Konfiguartion via PC Softwaretool DALI-Cockpit und mit DALI USB
Interface.

2. Specifications

power supply
typ. current consumption
Input/Output
number of DALI addresses
max. wire cross-section
dimensions (l x w x h) in mm
weight
3. Description
1. conversion of DALI DT8-Tc commands to DALI DT6 commands
2. for tunable white control of 2 DALI DT6 1-channel LED power supplies
3. 1 DALI Address (DT8, Type Tc)
4. Separate outputs for coldwhite and warmwhite channel (factory default)
5. Alternative output mode: dimlevels for coldwhite and warmwhite channel are sent to
groups (G0 and G1)
6. Easy system expansion with the help of DALI Expander, DALI Expander 3 or Repeater PS
7. configuration with PC-software tool DALI-Cockpit and DALI USB interface
Item no.: LC-004-805
aus DALI-Bus
2mA + Strombeda<rf Subkreis
DALI / 2x DALI
1 (DT8)
upto 1,5 mm2
59 x 33 x 15mm
14g

Advertisement

loading
Need help?

Need help?

Do you have a question about the LC-004-805 and is the answer not in the manual?

Questions and answers

Summary of Contents for LUNATONE LC-004-805

  • Page 1: Product Description

    LED DALI DT8 to DT6 converter - User Manual Item no.: LC-004-805 1. Product Description DALI-interface module for the conversion of DALI DT8-Tc commands to DALI DT6 commands. For tunable white control of 2 DALI DT6 1-channel LED power supplies. Das Modul findet in einer Unterputzdose Platz.
  • Page 2 4. Dimensions 5. Instruction Installation The devicd is supplied by the DALI-signal line. The current consumption depends on the number of connected DALI ballasts. The own consumption is 2mA. If more dimmers shoudl be connected to the output the number of led power supplies can be increased easily with the help of DALI Repeater PS, DALI Expander or DALI Expander 3.
