Installing the Sonus SBC 2000 Chassis
1
Unpack the chassis and verify the contents

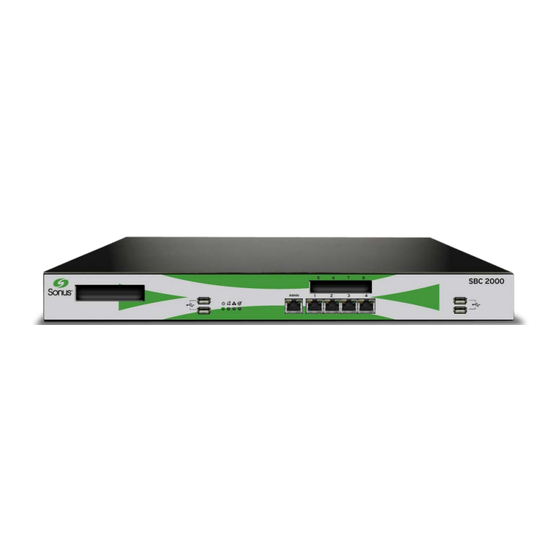

SBC Chassis
2a
Install the SBC chassis in a two-post rack
Quick Install Guide
Rack Mount Kit
Accessory Kit
2b
Install the SBC chassis in a four-post rack or cabinet
A
For racks with a 30-inch depth,
Installation Hardware Key
use the 9-inch extension arms.
A
B
C
B, C
WARNING: Do not block the air vents on either side
of the SBC 2000 to avoid overheating the unit.
A
Before completing installation of the SBC chassis, review the page
"Chassis Mounting Space Requirements" in SBC online documentation:
https://support.sonus.net/x/LwWB
