Summary of Contents for FAAFTECH FT-RC-AUD10

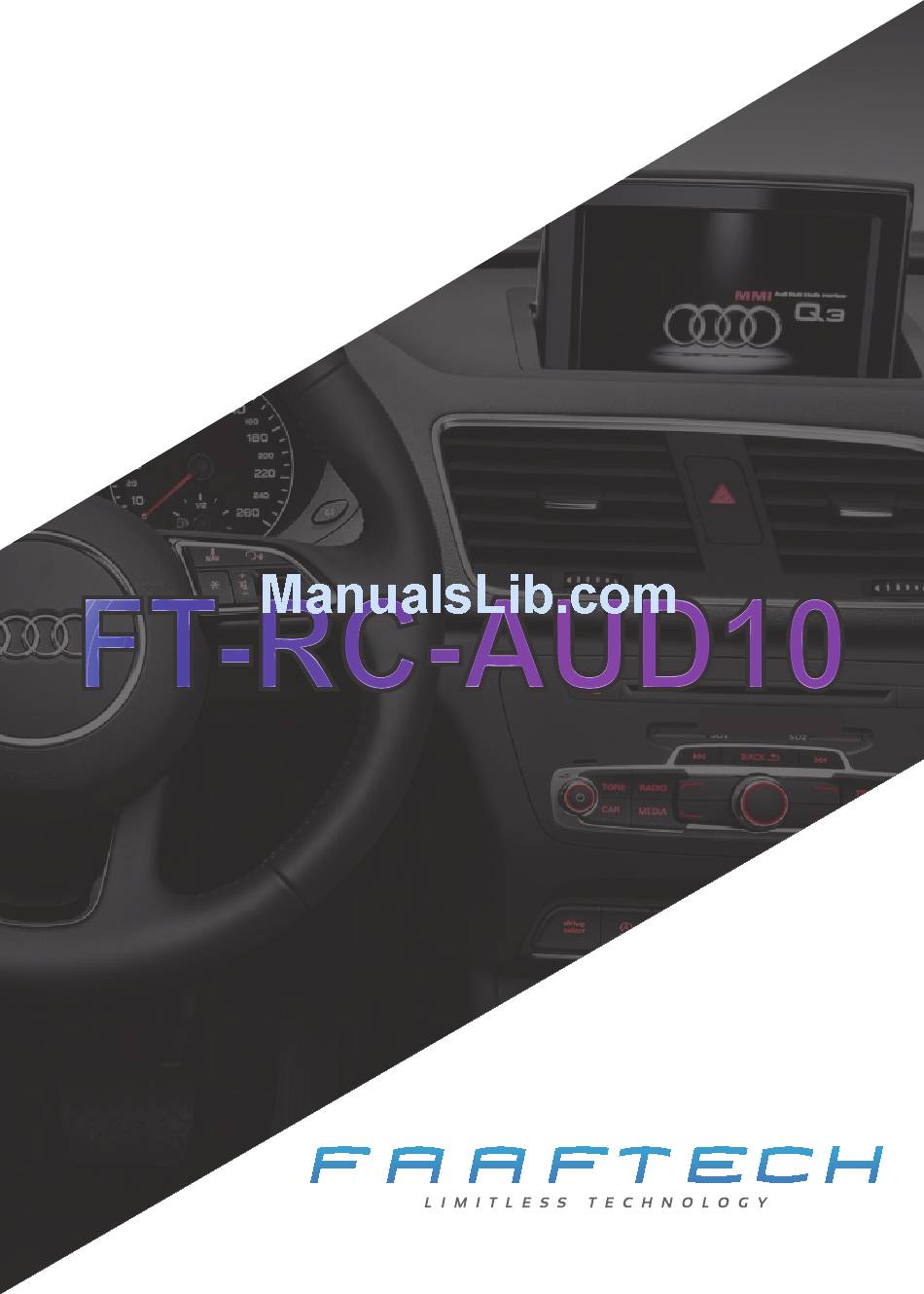

- Page 1 Installation Manual FT-RC-AUD10 REV 080617...
- Page 2 PRESENTATION • Congratulations for purchasing the video interface FT-RC-AUD10. • Please, read this manual with attention before installing your new device. • Keep this manual with you to check the functioning procedures and the security information. • We recommend that a professional, with experience in the field of installation of vehicle devices, is the one to install this interface.
-
Page 3: Setup Dip Switches
INSTALLING Follow the steps below to install the FT-RC-AUD10 interface: 1st Remove the original radio and the steering wheel’s column finish to install the interface; 2nd Setup the interface’s DIP Switches according to the chart on “DIP SWITCH- ES” section;... - Page 4 *Remove steering wheel column’s finish to find the location for installing Chicote A Note: on the FT-RC-AUD10 kit, there are 2 whips with di erent connectors. Check on the car connector which Connect to the nega- Preto one of the whips will plug in tive the right way.
-
Page 5: Video Connections
VIDEO CONNECTIONS VIDEO UPDATE SELECT IN/POWER *Front Camera Use the ACC output and the GND output to power the cameras, and the TV or the mirroring, if those are installed. *Rear Camera Connect a video source, such as a TV or a screen mirroring ONote: the audio must be connected directly to the multimedia auxiliary entry... - Page 6 FUNCTIONING Rear Camera Once you put your vehicle on reverse, the rear camera will automatically show on the screen. As you spin the steering wheel, the parking lines will move, showing the vehi- cle’s approximate direction as you keep going. Important Notice: The parking lines do not offer 100% precision on the track they show.
- Page 7 FUNCTIONING ACCESSING THE AV INPUTS Follow the steps bellow to access the interface’s AV entry: • Select the AUX audio source from the multimedia; • Press and hold the OK button on the steering wheel to gain access to the inter- face’s AV mode;...
-
Page 8: Technical Support
TECHNICAL SUPPORT Follow us on social media +55 0800 603 2330 or +55 62 3241 4600 suporte@faaftech.com.br www.faaftech.com.br Available from Monday to Friday, from 8 a.m. to 6 p.m. Brasilia time...
