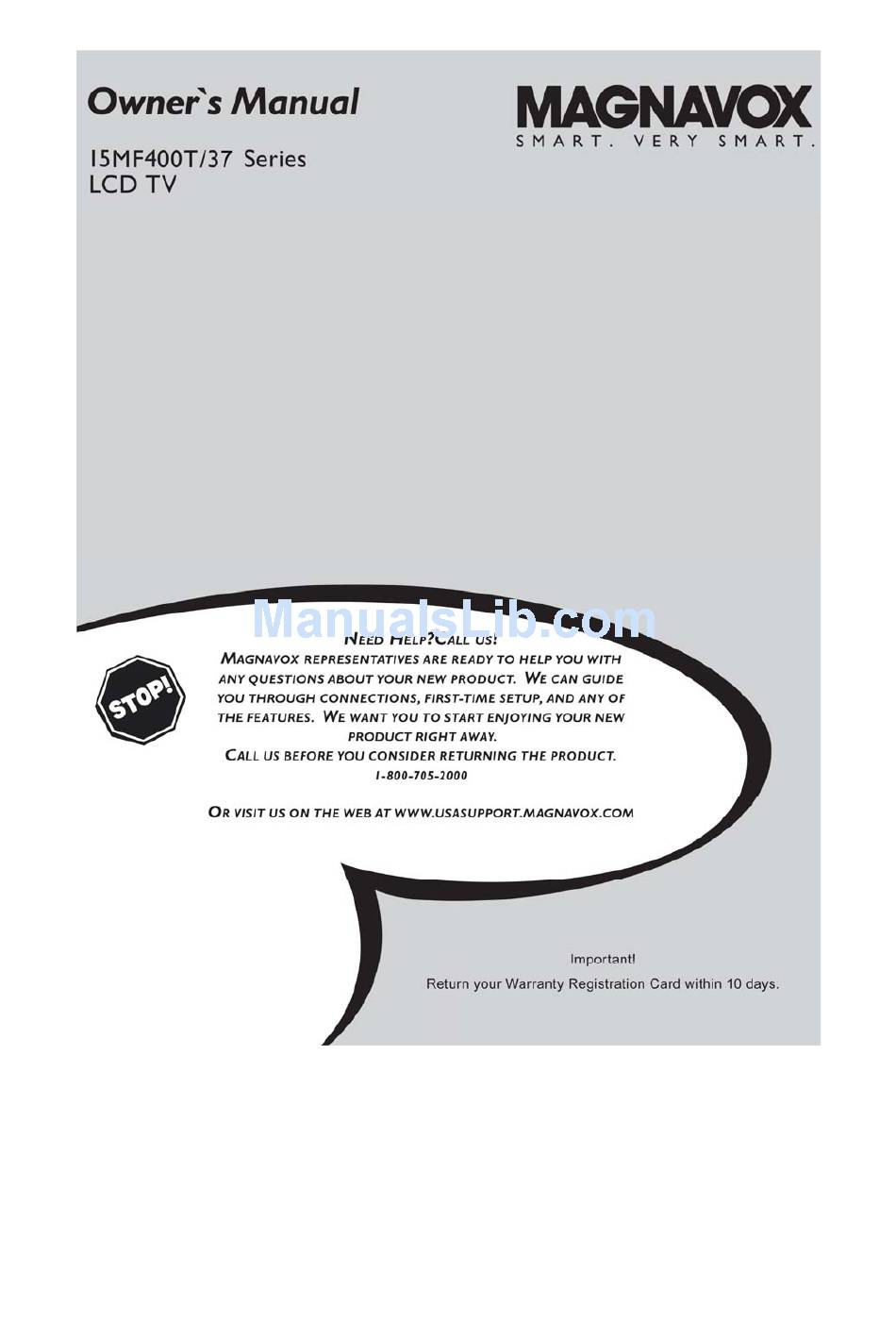

Magnavox 15MF400T/37 Series Owner's Manual

Hide thumbs Also See for 15MF400T/37 Series:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual , Manual Del Usuario

Advertisement

Table of Contents
loading

Related Manuals for Magnavox 15MF400T/37 Series

Summary of Contents for Magnavox 15MF400T/37 Series

  • Page 3: Instroduction Welcome / Registration Of Your

    IMPORTANT SAFETY INSTRUCTIONS The present set had been designed and manufactured to assure personal safety. Improper use can result in electric shock or fire hazard. The safeguards incorporated with the present unit will protect you if you observe the following procedures when installation, operating and servicing. The present unit is fully transistorized and does not contain any element that can be repaired by user.
  • Page 4 16. Damage Requiring Service – The appliance should be serviced by qualified service personnel when: The power supply cord or the plug has been damaged; or Objects have fallen, or liquid has been spilled into the appliance; or The appliance has been exposed to rain; or The appliance does not appear to operate normally or exhibits a marked change in performance;...

  • Page 5: Table Of Contents

    TABLE OF CONTENT INSTRODUCTION WELCOME / REGISTRATION OF YOUR TV-------------------------------------2 IMPORTANT SAFETY INSTRUCTIONS-------------------------------------------3 TABLE OF CONTENT------------------------------------------------------------------ 5 INSTALLATION PRESENTATION OF THE LCD TV -----------------------------------------------6-7 SUPPLIED ACCESSORIES -----------------------------------------------------------8 REMOTE CONTROL OPERATION--------------------------------------------------9 INSTALLING LCD TV ON THE WALL --------------------------------------------10 GETTING STARTED ------------------------------------------------------------------11 OSD SETTING --------------------------------------------------------------------------12 CONNECT VIDEO RECORDER ---------------------------------------------------13 CONNECT CAMERA /CAMCORDER/ VIDEO GAME SET -----------------13...

  • Page 7: Installation

    INSTALLATION PRESENTATION OF THE LCD TV ▪ Front Panel Control Knobs Source Key ① Press to select your input source. ② < / > Key Press to confirm your function selection and adjust the volume ٨ ٧ ③ Press to perform select function and TV channel MENU Key ④...
  • Page 8 ▪ Preparation Remove the back plate at the back of the TV as shown on the illustration opposite. Lay the LCD TV with the screen down on a table, as it will be easier to connect your peripheral equipment. Please take precaution not to damage the screen.

  • Page 9: Supplied Accessories

    SUPPLIED ACCESSORIES Power/ adapter Remote control Owner’s Manual Warranty card...

  • Page 10: Remote Control Operation

    REMOTE CONTROL OPERATION POWER button: DISPLAY button Press to "display” channel number on Press to turn on/off the TV the screen button MUTE button CHANNEL Press to eliminate or restore the LCD Press to adjust the channel up or TV sound down.

  • Page 11: Installing Lcd Tv On The Wall

    INSTALLING LCD TV ON THE WALL Before you can install your LCD TV on the wall, you MUST first remove the base using the steps below: Place the set facing down on a flat surface with a protective sheet or cloth the TV. Remove twos crews from the base, grasp the base and pull it out.

  • Page 12: Getting Started

    GETTING STARTED 1. Place the TV on a sturdy surface. Ensure that the TV is placed in a position to allow free flow of air. Do not cover the ventilation Note: openings on the back cover. To prevent any unsafe situations, no naked flame sources, such as lighted candles, should be placed on or in the vicinity.

  • Page 13: Osd Setting

    OSD SETTING 1. Press “MENU’’ key to open OSD menu 2. Press > or < key to select “OSD SETUP’’ option 3. Press ^ or v key to select submenu OSD Setup REMOTE CONTROL ▪ Language 1. Press ^ or v key to select “Language” option 2.

  • Page 14: Connect Video Recorder

    CONNECT VIDEO RECORDER How to connect: 1. Connect the antenna to VCR RF input 2. Connect the other RF cable from VCR output to TV input ; if you connect the VCR video frequency to TV’s AV input connector, you will get the better quality of video and audio 3.

  • Page 15: Connect Dvd Player

    CONNECT DVD PLAYER 1. Connect the video output port of DVD player to the AV input port of TV 2. Connect the left and right audio channels of DVD to the left and right channels of audio input of TV If your DVD player is equipped with S-VHS video port: For better quality picture, please connect the S-Video cable to the S-Video input of TV.

  • Page 16: Tv Set Up Menu

    TV SET UP MENU 1、 Press” MENU’’ key to open OSD menu 2、 Press > or < key to select “TV SETUP’’ option 3、 Press ^ or v to select submenu Air/Cable, Auto Scan, Current Program，Sleep Time option can only display on Note: TV Source TV CHANNEL INSTALLATION...

  • Page 17: Channel Edit

    CHANNEL EDIT ▪ Add/Erase 1. Press” MENU’’ key to open OSD menu 2. Press > or < key to select “TV SETUP’’ option 3. Press ^ or v key to select “Add/Erase” option 4. Press > or < key to select Add or Erase. 5.

  • Page 18: Closed Caption

    CLOSED CAPTION 1. Press” MENU’’ key to open OSD menu 2. Press > or < key to select “TV SETUP’’ option 3. Press ^ or v key to select “Closed caption” option 4. Press > or < key to set CC1~CC4 and TT1 and TT4. 5.
  • Page 19 Press digital keys on the remote control; enter the password to go into V-CHIP control menu (Default pass code for V-Chip: 0711 and should press twice time) If your password is error, then the screen will display “PIN ERROR”. 5. After enter the V-CHIP menu, press ^ or v key to select, if you want to set V-CHIP, you need to set the “status”...
  • Page 20 7. Movie Guideline Setting Press ^ or v key to select “Movie Guideline” option. Press > or < key to enter Movie Guideline menu. Press ^ or v key to select block item. Press > or < key to select U or B, selecting U means “Unlock”, selecting B means “Block”. If the setting is OK, press “MENU”...
  • Page 21 ▪ Reset to Default 1. Press “MENU” key to open OSD menu. 2. Press > or < key to select any Setup options 3. Press ^ or v key to select “Reset to Default” option. 4. Press > or < key to reset. Reset to Default is convenient for all settings in the user OSD to recall to factory default data.

  • Page 22: Sound Set Up Menu

    SOUND SET UP MENU 1. Press “MENU” key to open OSD menu. 2. Press > or < key to select “Audio Setup” option 3. Press ^ or v key to select submenu. ▪ Volume 1. Press “MENU” key to open OSD menu. 2.
  • Page 23 ▪ Mute 1. Press “MENU” key to open OSD menu. 2. Press > or < key to select “Sound Setup” option 3. Press ^ or v key to select “Mute” option. 4. Press > or < key to select ON/OFF. You can also press key on remote control to select mute, after the selection you can adjust the volume or press...

  • Page 24: Picture Set Up Menu

    PICTURE SET UP MENU 1. Press “MENU” key to open OSD menu. 2. Press > or < key to select “ Pc Setup” option 3. Press ^ or v key to select submenu. Note: Picture Setup menu can only be selected under the signal source of AV/TV/S-VIDEO. ▪...
  • Page 25 ▪ Sharpness 1. Press “MENU” key to open OSD menu. 2 Press > or < key to select “Picture Setup” option 3. Press ^ or v key to select “Sharpness” option. 4. Press > or < key to adjust sharpness data. 5.

  • Page 26: Pc Set Up Menu

    PC SET UP MENU 1. Press “MENU” key to open OSD menu. 2. Press > or < key to select “PC” option 3. Press ^ or v key to select submenu Note: PC Setup menu can only be selected under the PC signal source ▪...
  • Page 27 ▪ Clock 1. Press “MENU” key to open OSD menu. 2. Press > or < key to select “PC Setup” option 3. Press ^ or v key to select “Clock” option. 4. Press > or < key to adjust Clock data 5.

  • Page 28: General Information

    General Information Tips Care of the screen Do not rub or strike the screen with anything hard as this may scratch, mar, or damage the screen permanently. Unplug the screen before cleaning the screen. Dust the TV by wiping the screen and the cabinet with a soft, clean cloth.

  • Page 29: Call Before Service

    Before Call Service Please make these simple checks before calling service. These tips may save you time and money since charges for receiver installation and adjustments of customer controls are not covered under your warranty. Symptoms Items to Check and Actions to follow “Ghost ”...

  • Page 30: Glossary

    GLOSSARY Audio / Video Inputs Located on the rear and the front of the receiver these connectors (RCA photo type plug) are used for the input of audio and video signals. Designed for use with VCRs (or other accessories) in order to receive higher picture resolution and offer sound connection options.

  • Page 31: Product Specification

    PRODUCT SPECIFICATION 15MF400T/37 Item Specification Screen Size 15" Aspect Ratio Resolution 1024x768 Brightness 250cd/m² (typ.) LCD Panel Contrast Ratio 400:1 Response Time 16ms Viewing Angle left/right = 60°/60° Up/down = 40°/60° Display Colors 16.7M TV Tuner NTSC M Color System NTSC TV Function Sound System...
  • Page 32 with Stand (mm) 371.6mm x 346 mm x 147.5mm Dimension without Stand (mm) 371.6mm x 324mm x 49.5mm Carton (mm) 434(W) x 407(D) x 192(L) Net, kg 3.5kg Weight Loose, including package 5.5kg Remote controller, Batteriesx2, AC Power adapter, QSG, power cord Accessory User manual<English/French(Canadian type)>...
