12VDC PoE Splitter Adaptor

Operation:

1. Connect the PoE splitter with an Ethernet cable to a PoE Switch.
2. Connect your IP camera to the Ethernet plug and DC 2.1mm plug
of the PoE splitter adaptor.

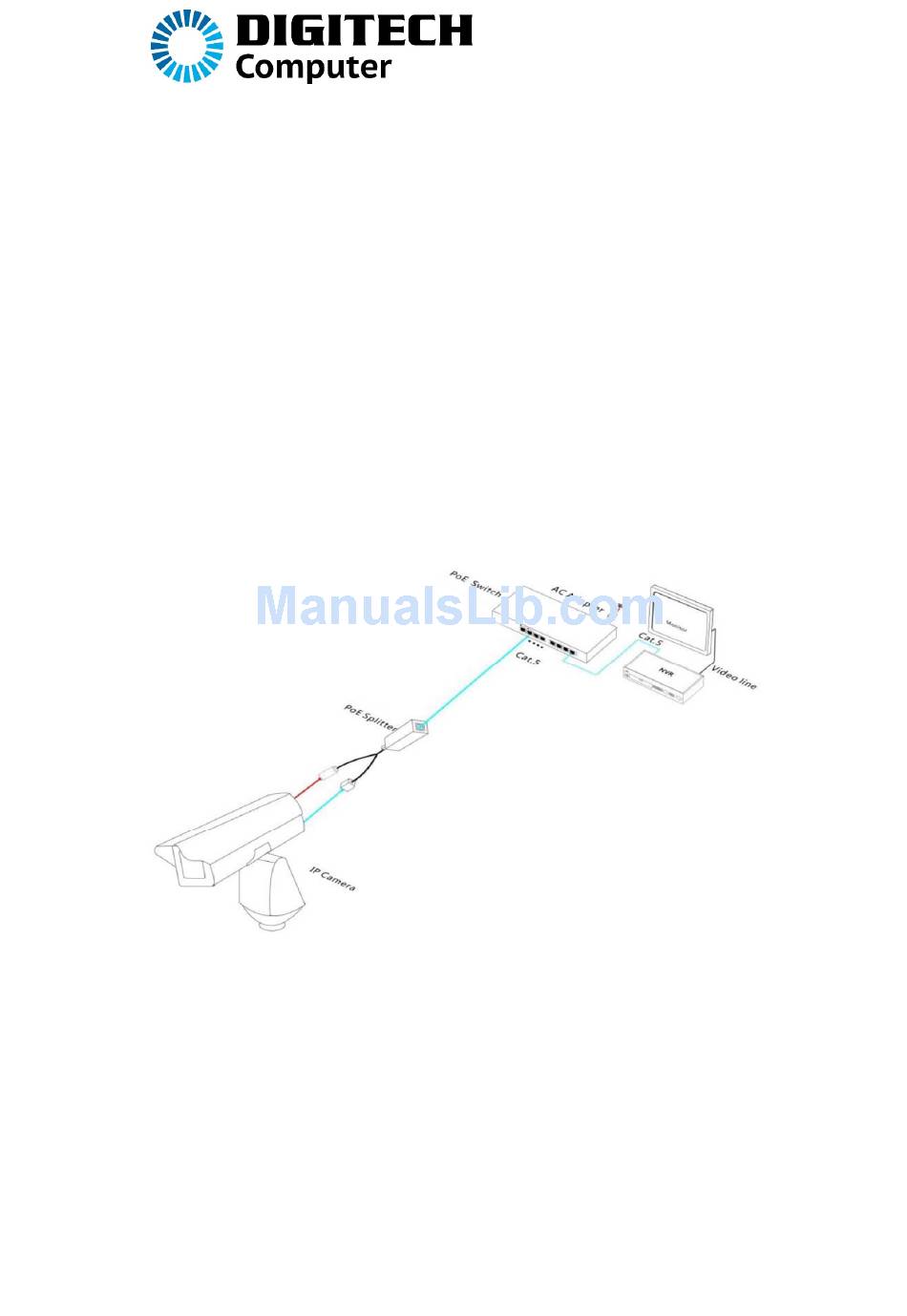

Connection Diagram:
User Manual
YN-8414

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the YN-8414 and is the answer not in the manual?

Questions and answers

Summary of Contents for DIGITECH Computer YN-8414

  • Page 1 12VDC PoE Splitter Adaptor User Manual YN-8414 Operation: 1. Connect the PoE splitter with an Ethernet cable to a PoE Switch. 2. Connect your IP camera to the Ethernet plug and DC 2.1mm plug of the PoE splitter adaptor. Connection Diagram:...

  • Page 2: Specifications

    Specifications: Input Voltage: 44-57VDC Output Voltage: 12VDC Output Current: 1.25A PoE Output Power: 15.4W Ports: 1 x RJ45 Ethernet Input 1 x RJ45 Ethernet Output 1 x 12VDC 2.1mm Plug PoE Standards: IEEE 802.3af Network Speed: 10/100Mbps Transmission Speed: Up to 100m Pin Assignment: Data (1/2 &...
