- Page 1 FS Reader User & Service manual...
- Page 2 Priva B.V. will not accept any responsibility for damages caused by any errors or deficiencies in this publication. Priva B.V. may modify its products and the associated manuals without prior notice. Priva B.V. advises to check product, installation, hardware and if present software on irregularities.
- Page 3 FS Reader FS Reader – User & Service manual – 00.010...
-
Page 4: Table Of Contents
Troubleshooting ....................8 Operating software ..............9 Operation ................10 FS Reader User Interface methods ..............10 Commissioning: link FS Reader to the customer system ......... 10 Scanning of basic tags ..................11 Employee ...................... 11 Activity ......................12 Location ......................12 Container ...................... -
Page 5: Fs Reader – User & Service Manual – 00.010
Technical specifications ..................21 EC Declaration of Conformity ................22 FCC Statement ....................24 IC Statement ....................24 FS Reader – User & Service manual – 00.010... -
Page 6: About This Manual
Priva B.V. About this manual Aim and scope This manual concerns the FS Reader, a handheld device for registration of labour for the horticulture industry. This manual contains all of the information required to safely and correctly transport, install, commission and maintain the handheld device for registration of labour. This manual will also allow you to effectively observe and resolve any malfunctions. -
Page 7: Terms And Abbreviations
Terms and abbreviations The list below states the abbreviations and terms relating to the Priva labour and production registration units of FS Performance. Therefore, abbreviations and terms that do not apply to your specific unit and as a result are not used in this manual may still be found in the list below. -
Page 8: Product Description

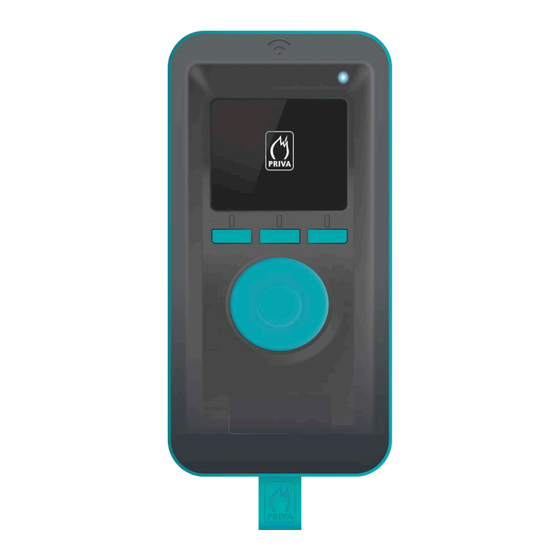

Priva B.V. Product description The FS Reader is a handheld device that is used for the registration of labour, as a part of the labour and production registration system of Priva FS Performance. Functions and intended use The FS Reader is a device used for registrations done both in the greenhouse and pack- house. -
Page 9: Operating Software
The FS Reader is delivered with the most recent version of this firmware that was available at the moment of production. A new version of this FS Reader firmware can be loaded into the FS Reader over the wireless network. Please refer to the “FS Reader Software – User Manual” for more information. -
Page 10: Operation
FS Reader to the customer system. Please be aware that the FS Reader needs to communicate through the wireless network with the Server in order to be able to receive the ‘Link’ status message and to synchronize the internal clock. -
Page 11: Scanning Of Basic Tags
Scanning of basic tags Pressing the large scan button scans the RFID tag held in front of the FS Reader. If scanned, the screen will display the type and number of the tag scanned and the FS Reader provides haptic (buzzer and vibration) feedback. -
Page 12: Activity
Activity #37 has been scanned. Location #5006 has been scanned. Container #37 has been scanned. The start of a break has been scanned. The end of a break has been scanned. FS Reader – User & Service manual – 00.010... -
Page 13: Scanning Of Number Tags
This can be repeated as long as required. The FS Reader also supports scanning of tags with negative values. FS Reader – User & Service manual – 00.010... -
Page 14: Scanning Of Special Situations
Combined tag: container + quantity A container tag with quantity is for example used when a container is always filled with a fixed number of boxes. FS Reader – User & Service manual – 00.010... -
Page 15: Store Registrations
The employee starts the store-function by pressing the middle soft button at a chosen moment. Automatic trigger: When the FS Reader is put into the cradle the system automatically triggers storage of all registrations. When pressing the store button , the FS Reader transmits all... -
Page 16: Diagnostic Information
Number of registrations in the FS Reader that have not yet been stored in the central server. This number will reset to zero when the battery is disconnected from the FS Reader. FS Reader – User & Service manual – 00.010... -
Page 17: Warning Messages
The FS Reader can show several warning messages on the display; when these appear, the FS Reader will also attract the attention of the user by generating two beeps with the buzzer, shortly activating the vibration motor and blinking the led red continuously. -
Page 18: Fs Reader In Fs Cradle
However, when the FS Reader is expected not to be used for a long period of time, then it would be better for durability of the battery to set the FS Reader in “Transport Mode”. -
Page 19: Service
3. Enter the FS Reader Service menu, select the “Factory reset” option and confirm by pressing the indicated ‘Yes’ key. The FS Reader is now ready to move it to a different location and take it into operation in accordance with the normal procedure for a new FS Reader. -
Page 20: Troubleshooting
Certain activities may only be performed by authorised installers/service engineers because they require specialist knowledge and skills. These activities are indicated by "Installer" in the table below. Problem Possible cause Solution(s) FS Reader – User & Service manual – 00.010... -
Page 21: Appendices
Temperature change max 30 °C / day Relative humidity 20 .. 95 % RFID scanning: • Supported type: Hitag S 2048 Frequency: 125 kHz Approvals / certifications that are pending: • C-Tick FS Reader – User & Service manual – 00.010... -
Page 22: Ec Declaration Of Conformity
ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 3: Specific conditions for Short-Range Devices (SRD) operating on frequencies between 9 kHz and 40 GHz EN 62311:2008 Assessment of electronic and electrical equipment related to human FS Reader – User & Service manual – 00.010... - Page 23 (0 Hz-300 GHz) The technical file was compiled by the department Product Development of Priva B.V. The Netherlands, De Lier, December 2015 M. Prins Managing Director FS Reader – User & Service manual – 00.010...
-
Page 24: Fcc Statement
L'exploitation est autorisée aux deux conditions suivantes : 1) l'appareil ne doit pas produire de brouillage, et 2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. FS Reader – User & Service manual – 00.010... - Page 25 Priva B.V. 3791526 Zijlweg 3 2678 LC P.O. Box 18 2678 ZG De Lier Nederland T +31 174 52 26 00 F +31 174 52 27 00 www.priva.nl contact.priva@priva.nl FS Reader – User & Service manual – 00.010...
