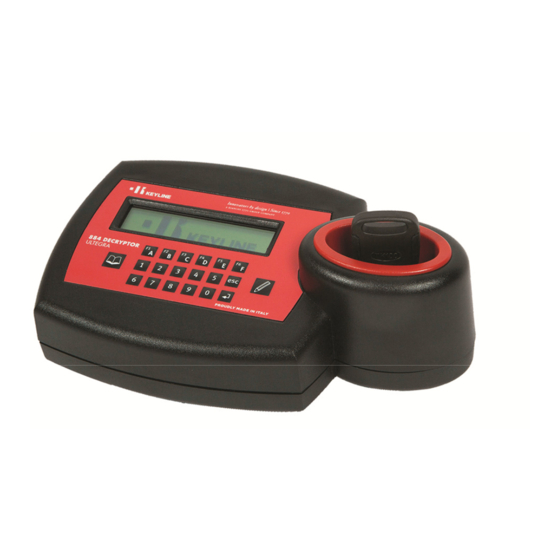

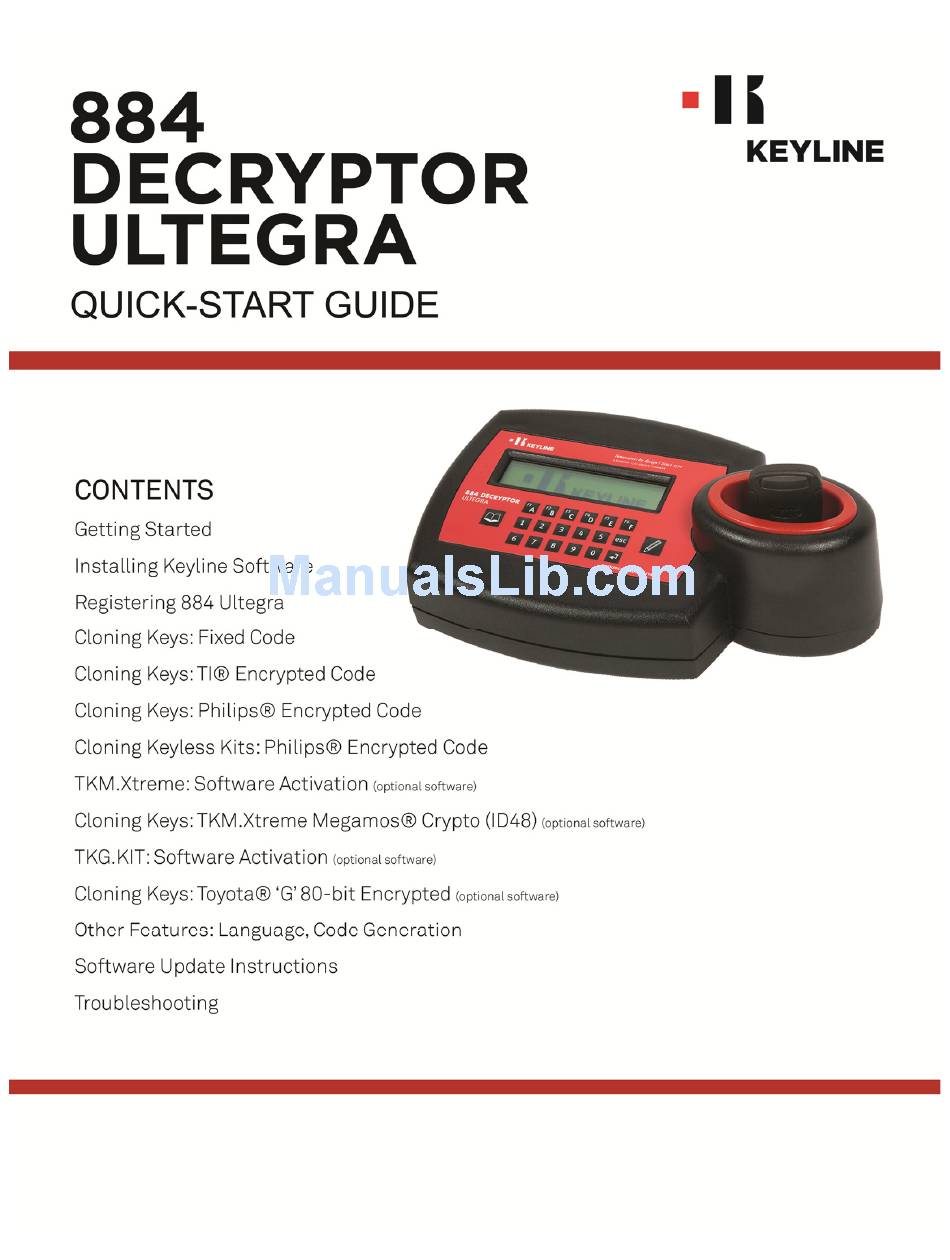

  • Page 2: Getting Started

    *IMPORTANT* PRODUCT REGISTRATION FORM Complete enclosed form and fax to 216-803-0202 or e-mail to info@keyline-usa.com. This information is required to activate your warranty and inform you of software updates and new products. Product serial number can be located on the bottom of the tool.
  • Page 3 INSTALLING KEYLINE SOFTWARE 884 software updates are done via Keyline Cloning Tool program for the PC (requires Windows 7 or higher). To download the software, visit the Keyline USA website, www.keyline-usa.com, then enter the GKM & GK100 product page. Once on the product page, double-click the ‘DOWNLOAD SOFTWARE’ button.
  • Page 4 * IMPORTANT * REGISTERING YOUR 884 ULTEGRA If you do not have an existing Keyline account, you must register your cloning tool and confirm the account via the e-mail link you will receive after registering before gaining access to the Keyline Cloning Tool software program and software updates.
  • Page 5 CLONING KEYS: FIXED CODE TRANSP. MEGAMOS MG00 (13) CAN DUPLICATE WRITE When prompted, insert the original Chip type displays with ‘Can key into the reader and press Duplicate’. Leave the original key in READ button. the reader and press WRITE button. INSERT COPY TK5/100 WRITING IN PROGRESS PRESS WRITE...
  • Page 6 CLONING KEYS: TI® ENCRYPTED CODE TE X AS CRYP TO 2 TP X X -6 4 CAN DUPLICATE WRITE When prompted, insert the original Chip type displays with ‘Can key into the reader and press Duplicate’. Leave the original key in READ button.
  • Page 7 CLONING KEYS: PHILIPS® ENCRYPTED CODE STEP 1 CRYP TO P HI L. P H2 0 (4 6 ) CAN DUPLICATE WRITE When prompted, insert the original Chip type displays with ‘Can key into the reader and press Duplicate’. Leave the original key in READ button.
  • Page 8 CLONING KEYS: PHILIPS® ENCRYPTED CODE , cont. STEP 3 INSERT THE KEY S T E P 2 R E AD C O M P L E T E AND PRESS READ CAN DUPLICATE WRITE Display will read Insert the Key Step 2 will be confirmed.
  • Page 9 WRITE button. INSERT TK60/TK100 STEP 1 COMPLETE PRESS WRITE PROCEED TO STEP 2 Insert the Keyline clonable fob (BM100, Remove the Keyline fob and NS100, etc) into the reader. Press proceed to the Vehicle Ignition WRITE button.
  • Page 10 SUCCESSFUL WRITING WRITING IN PROGRESS PRESS WRITE PLEASE WAIT Writing in progress. Key clone is complete. To make additional keys for the same vehicle, insert a new Keyline keyless kit fob immediately after the first one and select WRITE again.
  • Page 11 (see SOFTWARE UPDATE INSTRUCTIONS) and has the latest version of the Keyline Cloning Tool software for the PC. The Keyline Cloning Tool software is required when cloning Megamos® Crypto ID48 keys.
  • Page 12 CLONING KEYS: TKM.XTREME MEGAMOS® CRYPTO (ID48) Insert original key Once prompted, insert TKM/GKM Leave TKM/GKM inside reader When prompted, take TKM/GKM during initial writing phase key to vehicle to cycle into ignition 8 times (sniffing) as instructed Use the TKM/GKM key to turn the vehicle’s ignition to the ON Once vehicle procedure is position for 5 seconds, then OFF...
  • Page 13 CLONING KEYS: MEGAMOS® CRYPTO (ID48) , cont. When prompted, insert original key Calculation phase begins Once prompted, re-insert TKM head Copying phase begins Copying writing Key copy is complete; take the new TKM/GKM key to the vehicle and confirm vehicle starts.
  • Page 14 TKG head after activation. NOTE: Before activating the TKG.KIT to your 884 Decryptor Ultegra, make sure your unit is updated to the latest software (see SOFTWARE UPDATE INSTRUCTIONS) and has the latest Keyline Cloning Tool software for the PC.
  • Page 15 CLONING KEYS: ® TOYOTA ‘G’ 80-BIT ENCRYPTED At the main screen insert the Preparation phase begins; leave original key into the reader original key in the reader Insert TKG/CKG when prompted Copying phase begins; leave TKG/CKG in reader Copying phase completes When ‘Key copy completed’...
  • Page 16 OTHER FEATURES: LANGUAGE, CODE GENERATION CHANGE THE LANGUAGE At the Main Screen, hold down the Current language will display. Use the read F1 button until the Select button to scroll through the languages until Language screen appears. you find the desired one. Then press WRITE button to confirm.

  • Page 17: Software Update Instructions

    884 DECRYPTOR ULTEGRA & KEYLINE CLONING TOOL SOFTWARE UPDATE NOTE: 884 Decryptor Ultegra software updates are needed periodically and must be done through the PC. To check your current firmware version, select ‘Diagnostics’ from the drop down menu or turn the unit off and turn it back on and the Release number will appear after the Keyline logo.

  • Page 18: Troubleshooting

    ‘HOW CAN I TELL WHAT SOFTWARE VERSION I HAVE ON MY CLONING TOOL’ Turn the 884 Ultegra off and then back on. After the Keyline logo, the software release number will display.
