SERVICE MANUAL
EN

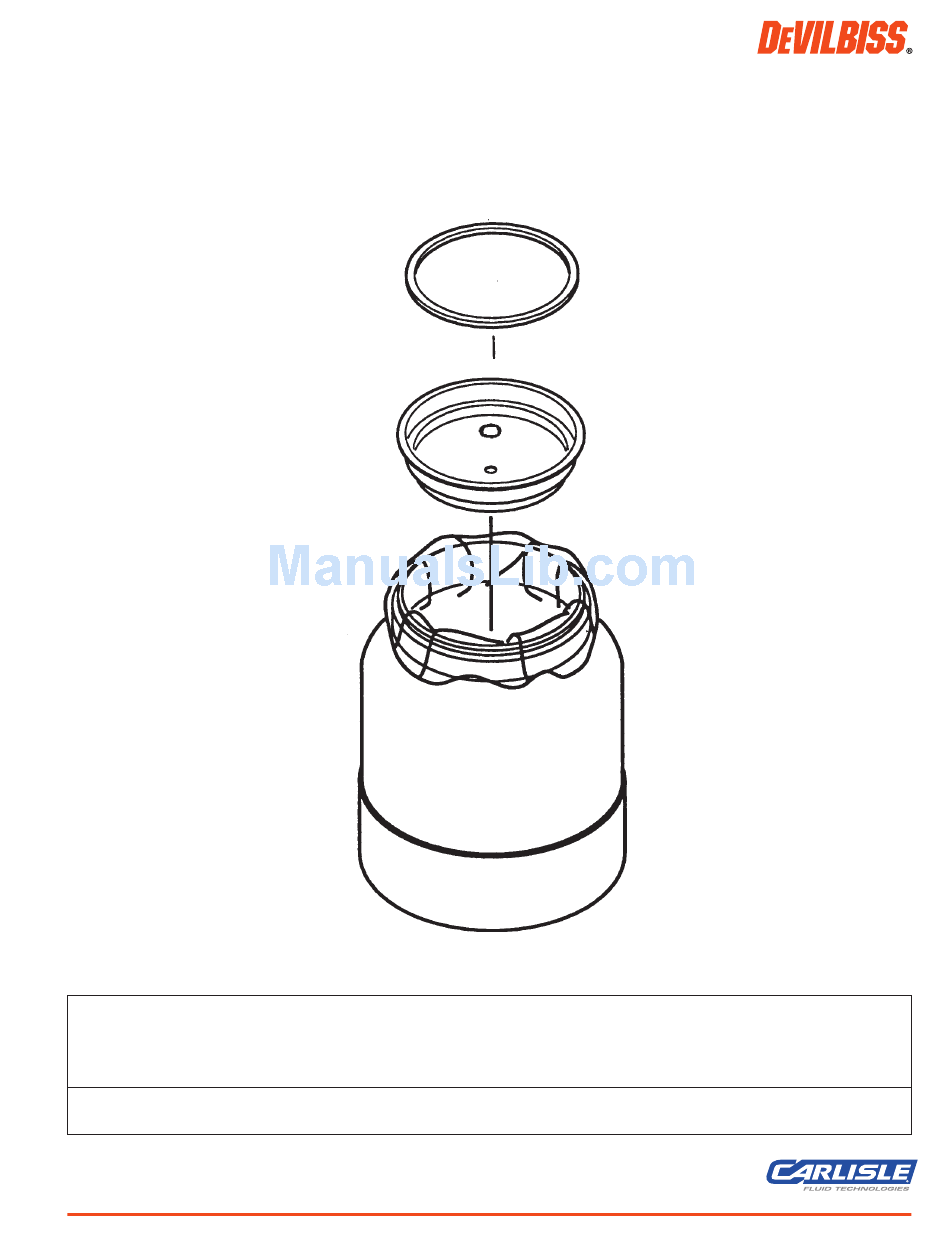

KK-5051 DISPOSABLE KB II CUP LINER
IMPORTANT! DO NOT DESTROY
It is the Customer's responsibility to have all operators and service personnel read and understand this manual.
Contact your local DeVilbiss representative for additional copies of this manual.
READ ALL INSTRUCTIONS BEFORE OPERATING THIS DEVILBISS PRODUCT.
SB-4-207-K (1/2018)
1 / 8
www.carlisleft.com
Advertisement
Table of Contents
Summary of Contents for DeVilbiss KK-5051
- Page 1 IMPORTANT! DO NOT DESTROY It is the Customer's responsibility to have all operators and service personnel read and understand this manual. Contact your local DeVilbiss representative for additional copies of this manual. READ ALL INSTRUCTIONS BEFORE OPERATING THIS DEVILBISS PRODUCT.
- Page 2 *KK-4996 Stainless Steel or structural member known to be grounded. *KK-4997 Aluminum The DeVilbiss liner system is intended for use in a KB II pressure cup. The liner creates a barrier so the coating *Order separately. cannot contact the cup or lid. The liner can be used with any material that is compatible with polyethylene.
- Page 3 SAFETY PRECAUTIONS This manual contains important information that all users should know and understand before using the equipment. This information relates to USER SAFETY and PREVENTING EQUIPMENT PROBLEMS. To help you recognize this information, we use the following terms to draw your attention to certain equipment labels and portions of this Service Bulletin. Please pay special attention to any label or information that is highlighted by one of these terms: Note Important information to alert you...
- Page 4 INSTALLATION INSTRUCTIONS 5. Place ring inside lid. 1. Insert liner into cup. Ring Step 4 Step 1 6. Slide fluid tube through Disposable Lid opening and assemble cup. 2. Fill liner with coating. 3. Insert lid. Step 2 4. Wrap liner over lid. Step 5 Step 3 www.carlisleft.com...
- Page 5 DISASSEMBLY/CLEANING INSTRUCTIONS 3. Remove ring. 1. Disassemble cup lid. Catch excess paint inside tube with a rag. Step 3 4. Pull up on liner. Step 1 Step 4 2. If you have Adapter Kit KK-5052, see SI-4-20-7 Extreme Explosion Hazard. for further instructions.
- Page 6 NOTES www.carlisleft.com 6 / 8 SB-4-207-K (1/2018)
- Page 7 NOTES SB-4-207-K (1/2018) 7 / 8 www.carlisleft.com...
- Page 8 ©2018 Carlisle Fluid Technologies, Inc. All rights reserved. DeVilbiss is part of Carlisle Fluid Technologies, a global leader in innovative finishing technologies. For technical assistance or to locate an authorized distributor, contact one of our international sales and customer support locations.
