Videolink Lilliput TM-1018/S User Manual

10.1"touch camera monitor
Hide thumbs

Advertisement

Quick Links

User Guide
0

Advertisement

loading
Need help?

Need help?

Do you have a question about the Lilliput TM-1018/S and is the answer not in the manual?

Questions and answers

Summary of Contents for Videolink Lilliput TM-1018/S

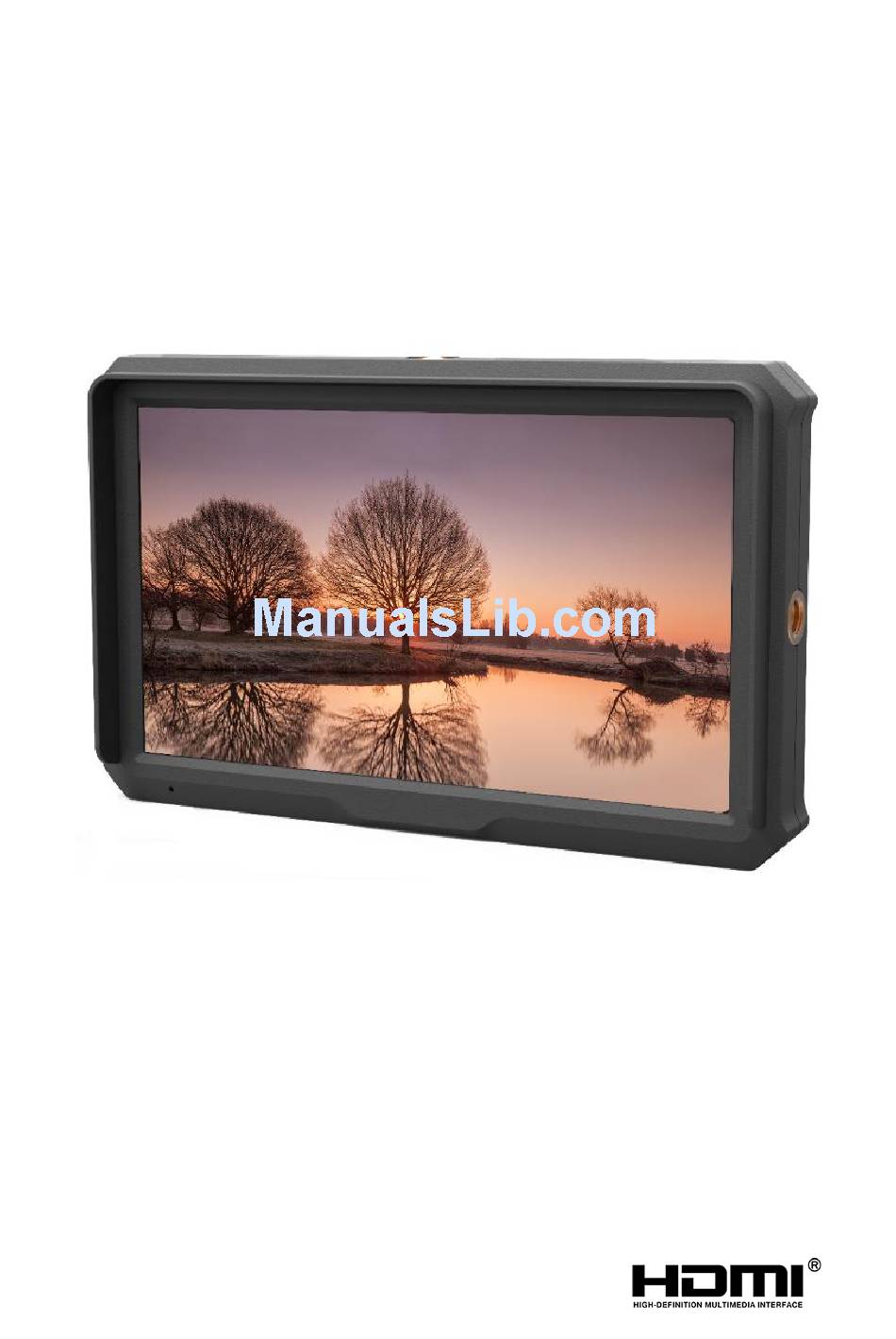

  • Page 1 User Guide...
  • Page 2 IMPORTANT SAFETY INSTRUCTIONS:  Please read user guide before using this product.  Please keep user guide for future reference.  Please read the cautions to prevent possible danger and loss of property. FEATURES:  High resolution: 1920×1080;  Wide voltage: DC 7-24V; ...

  • Page 3: Table Of Contents

    Contents 1. PRODUCT DESCRIPTION ........... 3 2. DV BATTERY MOUNT PLATE ........4 3. MENU SETTING ............5 4. ACCESSORIES ............8 5. PARAMETERS ............. 9 6. TROUBLE SHOOTING ..........9...

  • Page 4: Product Description

    1. PRODUCT DESCRIPTION 1．MENU: Menu key: press to display menu on the screen when screen is lit. Confirm key: press to confirm the selected option. 2． ► Right selection key: to select items on OSD menu, value option adjustment and confirmation; Press to adjust the brightness, contrast, saturation, tint , sharpness and volume increase .

  • Page 5: Dv Battery Mount Plate

    2. DV BATTERY MOUNT PLATE Standard mounts process ① First place battery plate into the plate, ② Please slide LP-E6 battery to the left. ③ Please slide F970 battery to the right. DV Battery Mount Plate Specification: Model F970 for battery of SONY DV: DCR-TRV series, DCR-TRV E series, VX2100E PD P series, GV-A700, GV-D800 FD/CCD-SC/TR3/FX1E/HVR-AIC, HDR-FX1000E, HVR-Z1C, HVR-V1C, FX7E F330.

  • Page 6: Menu Setting

    3. MENU SETTING Before setting the functions, please make sure the device is connected correctly. 3-1. F1 User-definable function button: Select "MEMU -- SYSTEM -- F1 Configuration" to custom F1 shortcut setting. Then press ◄/► button to choose options. Press "MENU" to confirm option as default, then press EXIT to exit. Function of F1 button can also be customized: Center Marker, Aspect Marker, Check Filed, Underscan, Scan, Aspect, DSLR, Freeze, Peaking, False Color, Exposure, Histogram, Level Meter.
  • Page 7 Main Menu Picture, Marker, Function, Waveform, Audio, System 0~100 Brightness Contrast 0~100 Saturation 0~100 Tint 0~100 Sharpness 0~100 Color Temp 6500K, 7500K, 9300K, User (R.G. B) Picture Red Gain 0~255 Green Gain 0~255 Note: Available only under Blue Gain 0~255 “User”...
  • Page 8 3-4. Color Space The wide color space supporting ITU-R BT.709, matching with strict color calibration that makes accurate color reproduction and excellent grayscale.

  • Page 9: Accessories

    4. ACCESSORIES Standard: 1. Folding sun shade cover 1 piece 2. HDMI A/C cable 1 piece 3. Hot shoe mount 1 piece 4. Manual 1 copy 5. PARAMETERS Panel 5” 8bit IPS Physical Resolution 1920×1080 (441ppi) Aspect Ratio 16:9 Brightness 400 cd/㎡...

  • Page 10: Trouble Shooting

    6. TROUBLE SHOOTING 1. Only black-and-white display: Check whether the color saturation is properly setup or not. 2. Power on but no pictures: Check whether the cables of are correctly connected or not. Please HDMI use the standard battery. 3. Wrong or abnormal colors: Check whether the cables are correctly and properly connected or not.
