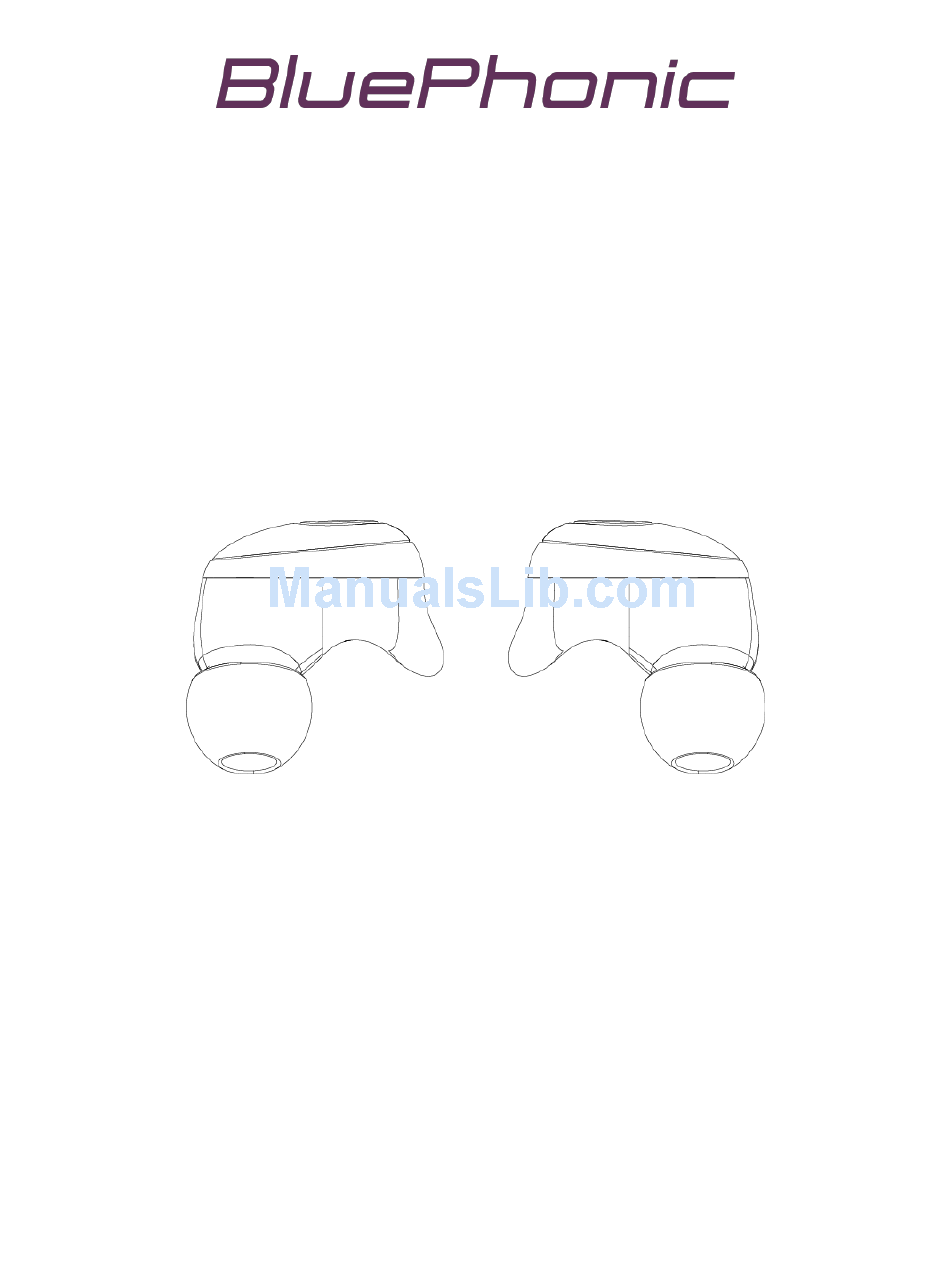

- Page 1 Libre User Manual Please read the instructions carefully before using the product...
- Page 2 Earbuds Structural Component Description...
- Page 3 Charging case Structural Component Description...
-
Page 4: How To Charge
Make sure that both earbuds are located in the slots properly inside the case. 1. Place the Libre into the charging slots of the charging case individually, the earbuds will be charged automatically 2. Once the charger case is closed it will start charging the earbuds automatically 3. - Page 5 HOW TO PAIR EARBUDS WITH YOUR DEVICE IMPORTANT - Right earbud cannot work without pairing the left earbud first. You can use the left earbud as single earbud, but you cannot use the right earbuds a single. After you have charged the earbuds, take out the earbuds out of the charging case STEP ONE 1.
- Page 6 STEP TWO Now you can activate the mobile phone Bluetooth search function, find the earbuds “Libre” and select it to pair. You will hear the “SECOND DEVICE CONNECTED” prompt tone.
- Page 7 FEATURES TURN ON/OFF Long press on right and left earbuds main button for 2 seconds to turn on; Long press on right and left earbuds main button for 4 seconds to turn off (When you are finished with the earbuds, turn off either one of the earpieces and the other one will turn off at the same time).
- Page 8 AUDIO TRANSFER During a call, long press the main button of the left/right channel earbuds until you hear the “Du” prompt tone, then release the button. Repeating this process enables you to switch between mobile phone and earbuds audio. CALL AND SILENT MODE BUTTON During a call, double-click left/right channel earbuds main button and you will hear the “open silent mode”...
-
Page 9: Three-Way Calling
button for a prompt tone. After 5 seconds, the earbuds will reconnect automatically. THREE-WAY CALLING In a phone call, if you receive another call you can short click the main button once to retain the current (A) call and connect the new (B) phone call. - Page 10 Indicator light LEFT&RIGHT PAIRING MODE (Red and blue LED) fast flashing at the same time, lasts about 60 seconds. POWER OFF Red led light flashes slowly and then goes out. IN A PHONE CALL When phone call is received, blue LED flashes slowly. When you answer the phone call, blue LED light goes out.
- Page 11 Specifications Product No: Bluephonic Libre Bluetooth Version: Bluetooth V5.0+EDR Charging Case: 51x50x31mm Charging case battery capacity: 3.7V/700mAh Li- polymer Earbuds battery capacity: 3.7V/50mAh Li-polymer Support agreement: A2DP, AVRCP, HSP, HFP Operating freqency: 2.4G ISM(2.402-2.480ghz) Ohms: 32±15%Ω Sensitivity: 100±3DB Frequency range: 20-20KHZ...
