SmartAnt SAG-1010 User Manual

802.11b/g wireless card
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

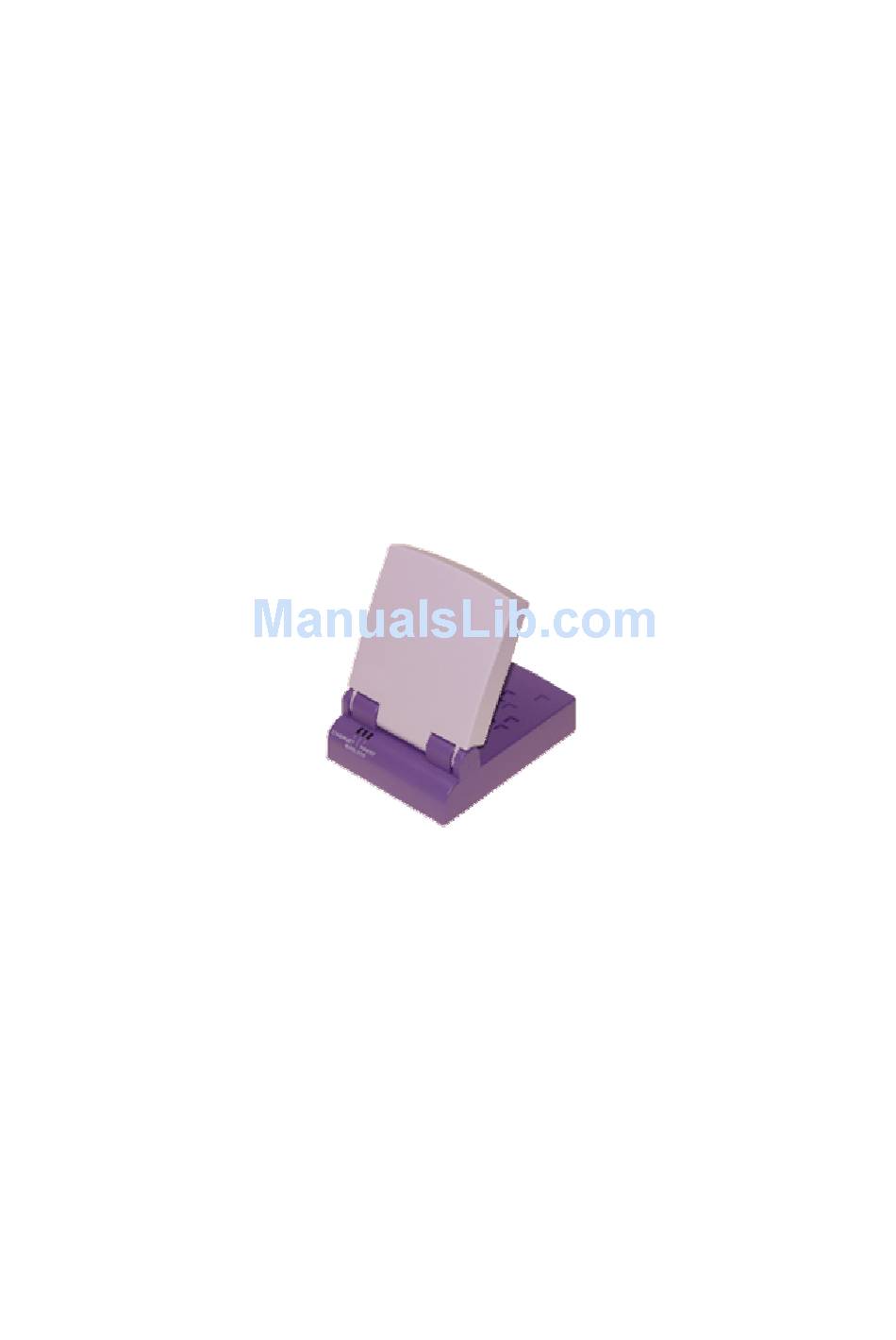

802.11b/g wireless card
SAG-1010
User's Manual
v0.2
SAG-1010

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SAG-1010 and is the answer not in the manual?

Questions and answers

Summary of Contents for SmartAnt SAG-1010

  • Page 1 802.11b/g wireless card SAG-1010 User’s Manual v0.2 SAG-1010...
  • Page 2 For all the device (15.21) Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user authority to operate the equipment. 15.19 (a)(3) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 3: Table Of Contents

    Table of Content 1. Product Introduction ................... 1 1.1 W ......................1 ELCOME 1.2 P ..................1 ACKAGE CONTENTS ......................2 FEATURES 1.3.1 T ....................2 OP VIEW 1.3.2 .................... 2 BOTTOM VIEW 1.3.3 ....................3 REAR VIEW ....................3 LED INDICATORS ..............

  • Page 4: Product Introduction

    To provide efficient security to your wireless communication, SAG-1010 comes with a 64-bit/128- bit Wired Equivalent Privacy (WEP) encryption and Wi-Fi Protected Access (WPA) features. With these and many more, SAG-1010 is sure to keep you ahead in the world of wireless computing.

  • Page 5: Top View

    1.4. LED indicators The SAG-1010 comes with a Ethernet, Wireless, and Power LED indicators. Refer to the table below for LED indications. Status...

  • Page 6: Recommended Network Settings

    1. Product Introduction 1.5. Recommended network settings The SAG-1010 can be configured as a wireless Ethernet adapter. In Ethernet adapter mode, the device connects to: 1. A wireless device(s) (Ad-hoc mode), or 2. An access point (Infrastructure network type) Determine your network settings before installing the SAG-1010. The following network settings are recommended.

  • Page 7: Ethernet Adapter Mode

    (AP) that provides a central link for wireless clients to communicate with each other or with a wired network. In this setup, the SAG-1010 connects to an AP using a single or multiple IP to establish connection to a wired or wireless LAN.
  • Page 8 1. Product Introduction Single IP bridge environment In a single IP bridge environment, the SAG-1010 connects to an access point using a single IP address. In this setup, the MAC cloning feature may be enabled to support certain applications and devices, such as Xbox and PlayStation®...

  • Page 9: Hardware Installation

    2. Hardware istallation 2.1 System requirements Before installing the SAG-1010, make sure that your system/network meets the following requirements: • An Ethernet RJ-45 port (10Base-T/100Base-TX) • At least one IEEE 802.11b/g device with wireless capability • An installed TCP/IP and Internet browser 2.2 Device installation...

  • Page 10: Using Dc Power

    2. Hardware istallation 2.2.2 Using DC power 1. Insert one end of the supplied RJ-45 cable to the SAG-1010 Ethernet port. 2. Insert the other end of the RJ-45 cable to a network hub, switch, router, or wall patch Ethernet port.

  • Page 11: Placement

    2. Latch the mounting hook on the screw. 2.3.2 Window mounting Using the window mount sets, SAG-1010 can be installed on flat window class, and receive wireless signals from either side of the window. To mount the device on a window class: 1.

  • Page 12: Operating Range

    2.4 Operating range 2.4.1 Range The SAG-1010 range is dependent on the operating environment. Every home or office layout varies in obstacles, barriers, or wall types which may reflect or absorb radio signals. For example, two 802.11b devices in an open space may achieve an operating distance of up to 1000 meters, (3280 feet) while the same devices may only achieve up to 300 meters (984 feet) of range when used indoors.

  • Page 13: Configuration

    1. Right-click the Network Connections icon in the Windows® desktop, then select Properties from the pop-up menu. The Network and Dial-up Connections window appears. 2. Right-click the network adapter used by the the SAG-1010, then select Properties from the pop-up menu. The Local Area Connection Properties window appears.
  • Page 14 192 168 1 10 5. Set the Subnet Mask to 255.255.255.0. Click OK when finished. 192 168 1 10 255 255 255 0 Changing the TCP/IP settings may require system restart. Switch on the SAG-1010 immediately after rebooting.

  • Page 15: Launching The Web Configuration

    OK. This option requires you to change the IP address of the LAN adapter where the SAG- 1010 is connected. Make sure the IP address of the SAG-1010 and your computer is on the same subnet. 3.3.3 Changing the Access Point (AP) Configuration Simple Setup Page The Simple Setup page displays the default AP settings of the SAG-1010.
