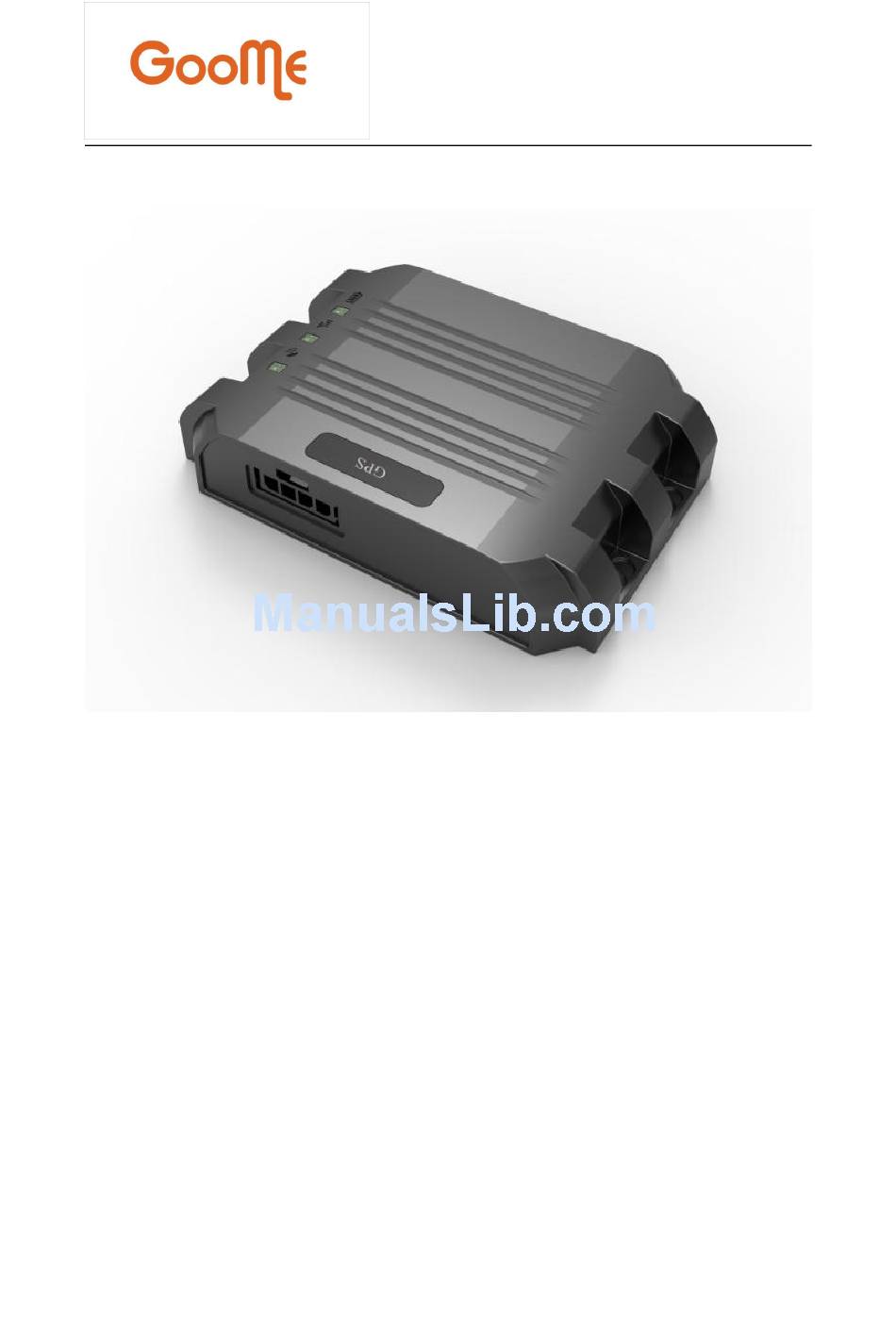

  • Page 1: Table Of Contents

    U9 USER MANUAL U9 USER MANUAL 1. Product Features..........................2 2. Product Specification......................... 3 3. Operation Guide..........................3 3.1 Package ............................3 3.2 Start to Use ........................... 4 3.3 Installation Guide ......................... 5 3.4 Status Indication ........................... 5 3.5 Message Instruction ........................6 3.6 Query Instruction ..........................

  • Page 2: Product Features

    U9 USER MANUAL 1. Product Features U9 is a GPS+GSM/GPRS data terminal, which suitable for logistics and assets protection. It is easy to install and easy to use, product main features: GSM Quad band supported. Newest generation u-blox GPS chipset u-blox 7.

  • Page 3: Product Specification

    U9 USER MANUAL 2. Product Specification GSM Band: Quad Band GSM/GPRS supported GPRS: Class12/TCP/IP Working Voltage: 8-45vDC Working Current: 20mA@12vDC (ACC ON) 1mA @ 12vDC (ACC OFF) GPS Chipset: u-blox G7020 GPS Channels: Tracking Sensitivity: -162dBm GPS Fixed Time Cold Start<29s(Open sky) Warm Start<29s...

  • Page 4: Start To Use

    U9 USER MANUAL 3.2 Start to Use Important notice: Insert SIM card then connect the power to the device. SIM card must support GPRS service. SIM card must be in service. If SIM card require PIN code, please use other GSM mobile handset to remove the pin code.

  • Page 5: Installation Guide

    U9 USER MANUAL 3.3 Installation Guide Fig 2 Connection Diagram PIN No Color Description Power supply 8-45V DC BLACK Ground GREEN ACC detection, when key-in and turn to ACC position, ACC goes level high. YELLOW Relay control driving signal Please use 12V RELAY in 12V system, use 24V RELAY in 24V system like bus and truck.

  • Page 6: Message Instruction

    U9 USER MANUAL YELLOW-GREEN Light GPS fixed. Blink GPS searching. Note 3.5 Message Instruction 1) APN Settings Instruction Format example APN Setting 1 APN, APN,ac.vodafone.es,vodafone,vodafone ,user,psw# APN-Name APN Setting 2 APN, APN-Name# APN,cmnet# Note: APN settings are difference in difference country, if password required, please follow setting 1, otherwise setting 2.
  • Page 7 U9 USER MANUAL Send: CENTER,A,13812345678# Examples: Return: SET CENTER TEL OK. TEL Number is 13812345678. 4) RELAY Control Instruction Format example RELAY control enable RELAY,1# RELAY,1# RELAY control disable RELAY,0# RELAY,0# Note: 1) Send this message to make remote control like fuel supplement.

  • Page 8: Query Instruction

    Instruction Format example Query Device Information PARAM# PARAM# Note: Use this instruction to query device main parameters. Send: PRARM# Examples: Return: SN:123456789012345; (Serial number) APN: cmnet; (Access Point Name for GPRS network) IP: U9.szdatasource.com:8841; (Server address) TIMER: 10S; (Update period)
  • Page 9 U9 USER MANUAL CENTER TEL: 13812345678; (Center phone number) LANGUAGE: EN; (Language) TIME ZONE: 8.00; (TimeZone) 2) Query Device Working Status Instruction Format example STATUS STATUS# STATUS# Note: Use this message to check the device working status, like GSM, GPRS, GPS status.

  • Page 10: Use The Web Service

    U9 USER MANUAL 4 Use the web service Visit web with the account and password that the distributor provided. 5 Trouble shooting When finish installation, please check the device work normal or not? If work abnormal, please check with the following steps: 1) Call the phone number on the device, check if the SIM register to the GSM network? 2) Is the APN being set for oversea user? Set the correct APN according the manual.
