NETWORKS Sparrow SM400 Series Camera Quick Start Guide Package Contents Camera PoE Adapter Mounting Kit Quick Start Guide For advanced settings and more detailed information, download the user manual from www.shyamnetworks.com. www.shyamnetworks.com...

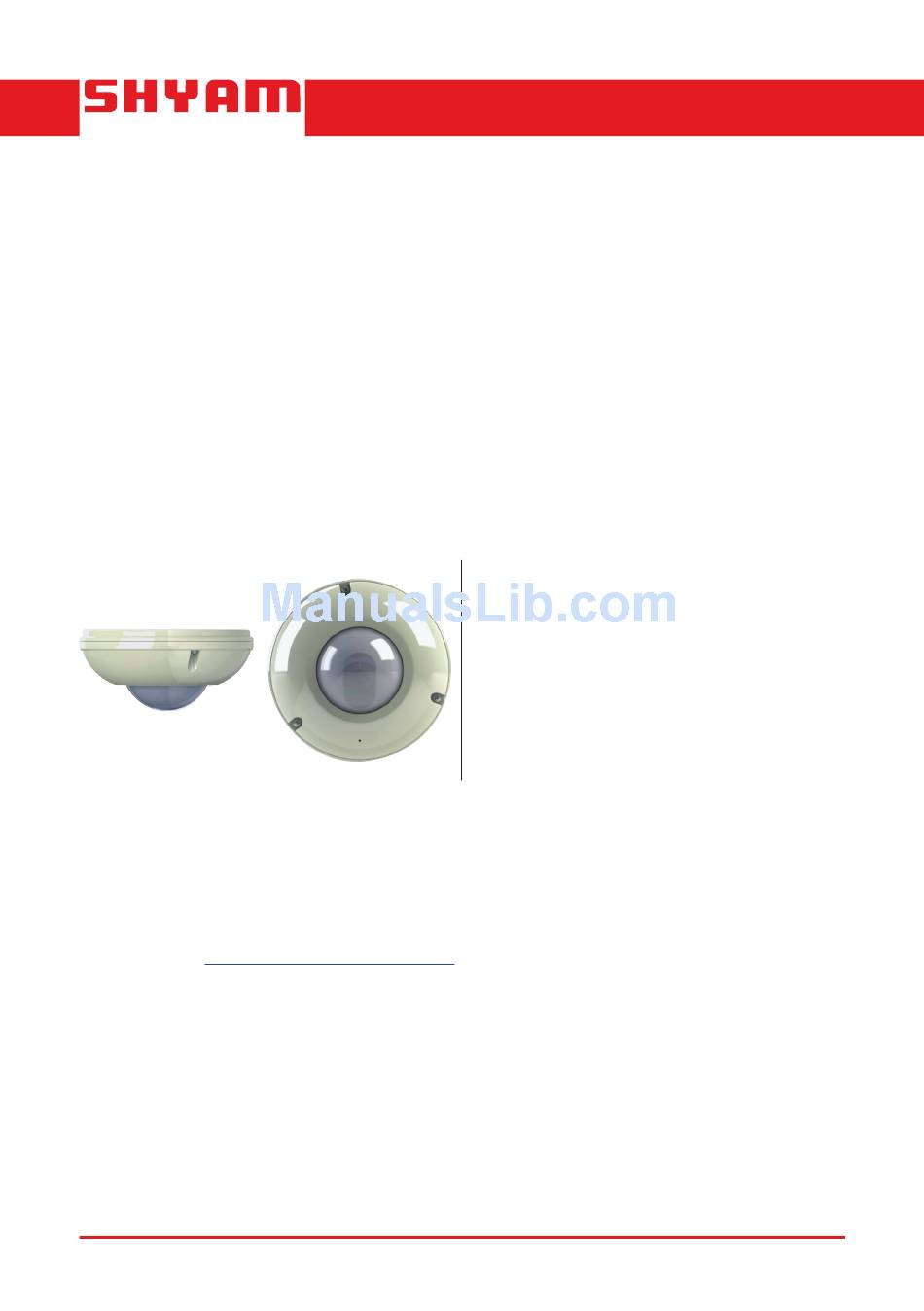

Sparrow Network Camera Figure 1 Available Models MODEL DESCRIPTION SM400 Indoor PoE camera SM410 Outdoor PoE camera with metal casing (IP66) Interface Description INTERFACE DESCRIPTION Microphone Built-in microphone present on the front panel, which records sound. Used to capture audio from surroundings.
Page 3
SM400 NETWORKS 2. Installing Sparrow Mounting Sparrow Location Hole Upper Housing Bubble Cable Hole Flange Figure 2 STEP 1 Loosen the three captive screws in bubble flange. STEP 2 Drill three holes into the wall. Then hammer the supplied plastic anchors into the holes. STEP 3 Install the upper housing to the desired position with three tapping screws and then connect the PoE cable.
Page 4
SM400 NETWORKS Connecting Sparrow PoE Adapter Power Supply PoE Adapter Computer Sparrow Camera PoE Switch Sparrow Camera Power Supply Computer Switch Figure 3 STEP 1 Place the camera on a flat surface or mount it on the ceiling. STEP 2 Connect power using one of the methods below: • PoE Adapter: Insert one end of the Ethernet cable in the PC port and other end into the PoE adapter.
Page 5
SM400 NETWORKS 3. Configuring Sparrow STEP 1 Power-up the camera. STEP 2 Configure the PC connected to the camera with the IP address range between 192.168.1.1 to 192.168.1.254, except the camera IP address 192.168.1.168 and set subnet mask to 255.255.255.0. STEP 3 Type the http://192.168.1.168 URL in the Internet Explorer 6.0 or above version to access the web interface.
Page 6
SM400 NETWORKS Accessing Sparrow by UPnP WINDOWS VERSION PROCEDURE ME or XP When enabled on your computer, Sparrow is automatically detected and added to ‘My Network Places’. Vista or Windows 7 When enabled on your computer, Sparrow is automatically detected and added to ‘Network’. The camera icon as it appears in Windows 7: Figure 5 4.
SM400 NETWORKS Figure 7 STEP 4 Select the desired model number and click the Add Selected Devices button. The camera is added successfully to VMS. 5. Quick Troubleshooting PROBLEM PROBABLE REASON RESOLUTION Unable to view the Improper IP • Ensure that Ethernet cable is Live View page on configuration.
