Summary of Contents for MultiTrode MTRA-FSP

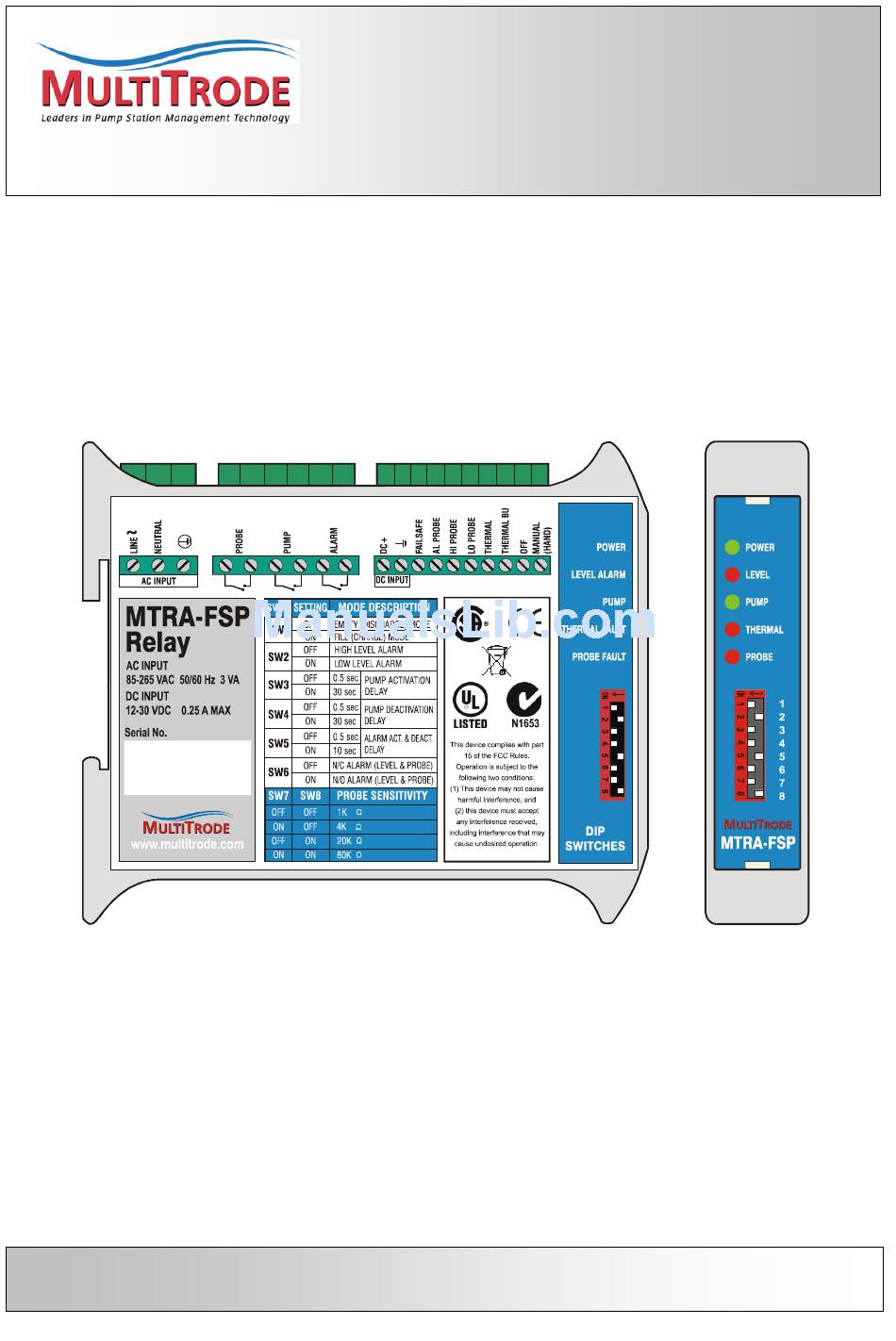

- Page 1 MTRA-FSP Level Control Relay Installation & Operation Manual...
- Page 2 Patents pending in Australia, USA and many countries worldwide. ©2007 MultiTrode Pty Ltd. This publication is protected by copyright. No part of this publication may be reproduced by any process, electronic or otherwise, without the express written permission of MultiTrode Pty Ltd.
-
Page 3: Table Of Contents
MTRA-FSP Installation & Operation Manual Contents Warnings & Cautions Information to User Documentation Standards Installation Notes Introduction Specifications Installation Power Supply DIP Switch Settings Operation Modes Empty (Discharge) Mode Fill (Charge) Mode Alarms Level Alarms (AL Probe) Pump Alarms Manual (Hand) and Off Inputs... -
Page 4: Warnings & Cautions
WARNING: The MTRA-FSP installation and wiring must be performed by qualified personnel. Danger: The MTRA-FSP has no user serviceable parts. To reduce the risk of electric shock, leave all servicing to qualified MultiTrode technical staff. Page 4 of 16 00242600-MTRA-FSP_Manual.doc... -
Page 5: Introduction
It is used to control pump relays in response to a liquid level sensor such as a MultiTrode probe. A pump thermal sensor can be connected to the MTRA- FSP for pump protection. During operation the LED indicators on the front panel indicate the current status including –... -
Page 6: Installation
MTRA-FSP Installation & Operation Manual Installation The MTRA-FSP is designed to be mounted onto a standard DIN rail. All power supply, input and output connections are located on the top of the relay housing. Power Supply The MTRA-FSP can be supplied power in the following ways: 85 –... -
Page 7: Dip Switch Settings
MTRA-FSP Installation & Operation Manual DIP Switch Settings The MTRA-FSP is configured using the DIP switches located on the front of the relay enclosure. DIP # Setting Mode Description See Section: Empty (Discharge) Mode Fill (Charge) Mode High Level Alarm Low Level Alarm 0.5 sec Pump Activation and Deactivation... -
Page 8: Operation Modes
MTRA-FSP Installation & Operation Manual Operation Modes The MTRA-FSP can be configured to operate in either Empty (Discharge) or Fill (Charge) mode. Empty (Discharge) Mode Empty (Discharge) mode is used to pump liquid out of a well once it reaches a preset level. - Page 9 MTRA-FSP Installation & Operation Manual 00242600-MTRA-FSP_Manual.doc Page 9 of 16...
-
Page 10: Fill (Charge) Mode
MTRA-FSP Installation & Operation Manual Fill (Charge) Mode Fill (Charge) mode is used to fill up a well with liquid when the level falls to a preset level. In this mode the relay operates as follows: The pump activates when the liquid reaches the low level probe. - Page 11 MTRA-FSP Installation & Operation Manual 00242600-MTRA-FSP_Manual.doc Page 11 of 16...
-
Page 12: Alarms
• Flashing alarm output (DIP Switch ON) • Pump Alarms There are two types of pump alarms supported by the MTRA-FSP – Thermal and Seal. 6.2.1 Thermal Alarm Input A pump thermal sensor can be wired into the Thermal input. This is used to detect when the pump is overheating due to a blockage or other fault. - Page 13 6.2.2 Thermal Backup (BU) Input The MTRA-FSP can be used as a backup pump control device for the MultiSmart Pump Controller and RTU. When used as a backup, the Thermal sensor is wired into the Thermal input, and the MultiSmart Thermal input is wired into the MTRA-FSP Thermal BU input.
-
Page 14: Manual (Hand) And Off Inputs
MTRA-FSP Installation & Operation Manual Manual (Hand) and Off Inputs The MTRA-FSP can manually operate a pump using pushbuttons wired into the Manual (Hand) input and the Off input. Manual Operation of Pump (Hand) Manual pump operation works as follows: Pushing the Manual (Hand) button will start the pump. -
Page 15: Advanced Settings
Advanced Settings Probe Sensitivity The MultiTrode Probe is a conductive level sensing device that relies on conductivity through the liquid to earth in order to detect level. For most common applications the default probe sensitivity setting of 20kohms will work correctly. -
Page 16: Led Status
MTRA-FSP Installation & Operation Manual LED Status Status Indication Power on Steady Power Low voltage Flashing Level Level alarm Flashing Pump on Steady Pump Activation delay period Flashing (Not an alarm) Thermal fault requires Steady manual reset Thermal Thermal fault active...
