OmniMetrix TrueGuard-PRO IM-735 Installation Manual

1. Unpack the monitor, antenna and the data/power cable. The 25
pin connector plugs onto the front of the OmniMetrix
This cable includes wires to power the monitor as well as wires for
alarm inputs, relay outputs and analog inputs. Take a moment to
inspect all components to verify there is no shipping damage.
2. Locate the area behind the door where two panels come together
in the housing. Peel the weather stripping down and route the
antenna between the weather stripping and the housing. Place
the wire for the antenna in the slot between the two panels and
replace the weather stripping. Attach the antenna vertically to the
top of the enclosure. The antenna used for transmitting must be
installed to provide a separation distance of at least 20 cm from all
persons and must not transmit simultaneously with any other
antenna transmitters. BE SURE to provide a drip loop lower than
the monitor to keep water from running down the antenna cable
into the monitor connection
3. Program the unit according the Programming Instructions on the
following page.
4. Route the data/power cable to the interior of the generator control
housing on the right-hand side.
5. The monitor connects to the Generac E Panel using the wiring
definitions as shown in Table 1 (next page); and to the Relay Kit
as shown in Table 2.
6. Temporarily mount the monitor to the side of the control and
attach the 25 pin cable to the front of the monitor and tighten
screws. Attach the antenna cable to the front of the monitor, and
tighten thumb tight.
7. Turn on the monitor and confirm that the LEDs light up and blink.
If not, check for power on the terminal strip. If, after 5 minutes, the
only LED lit is the Power LED, check the antenna mount and
cable connection.
8. Allow 15 minutes for the monitor to log into the network and then
call OmniMetrix Tech Support at 770-209-0012 to confirm
installation. Access to machine data is through the OmniView
web interface at www.omnimetrix.net. Contact OmniMetrix for
login instructions and web training.
9. Reassemble the controller and attach the monitor, via the
magnetic feet, to the top of the control panel or other appropriate
location. Horizontal surfaces are best, but the unit may be
mounted vertically or even upside down if necessary. Note: If
mounted vertically, install the monitor with the cables down to
prevent water from entering the enclosure.
™
TrueGuard-PRO Generac E Panel/E Panel with Relay
®
monitor.
®
Installation Guide

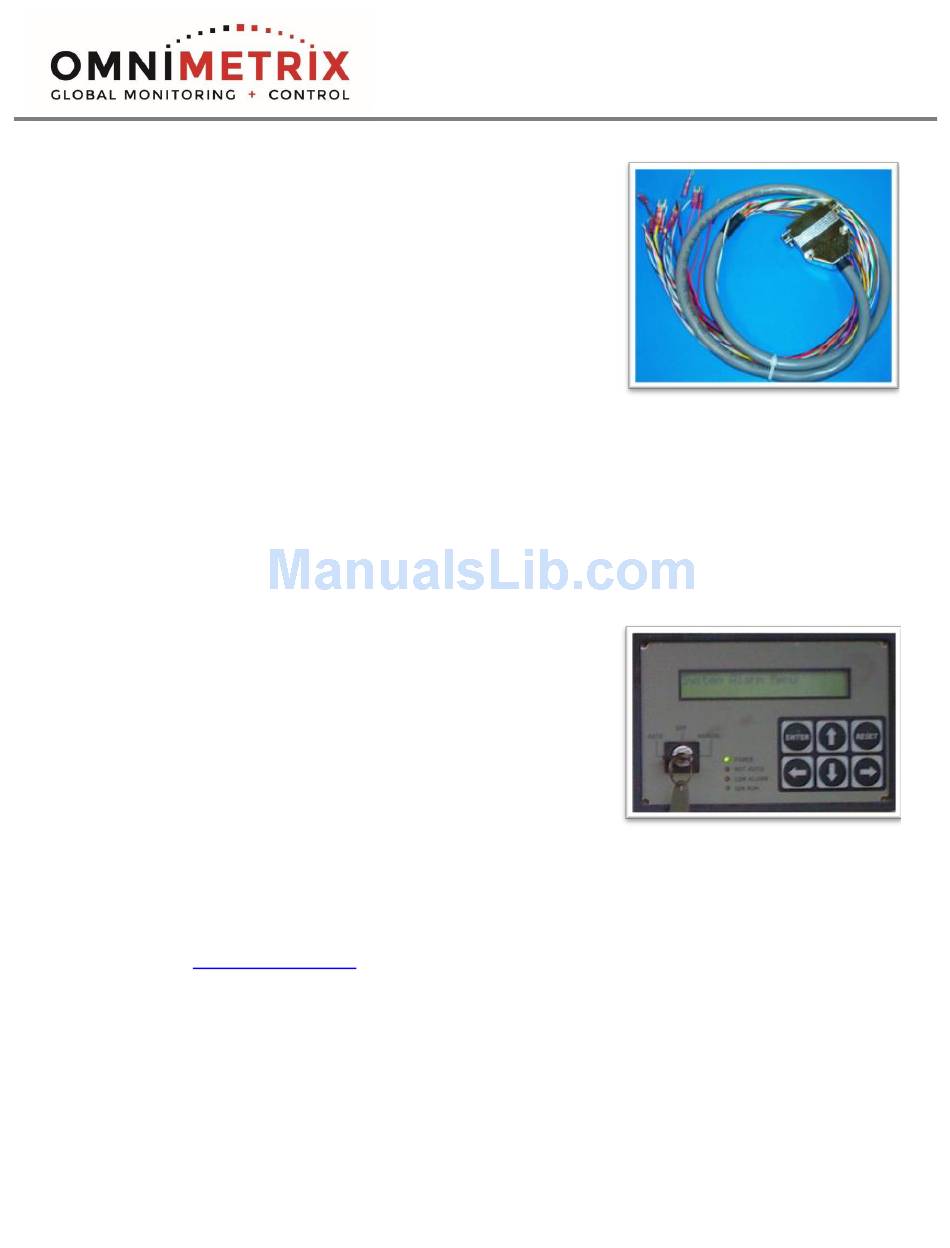

Data/Power Cable
Generac E Panel Controller
