Summary of Contents for osprey video MVS-8
-
Page 1: User Guide

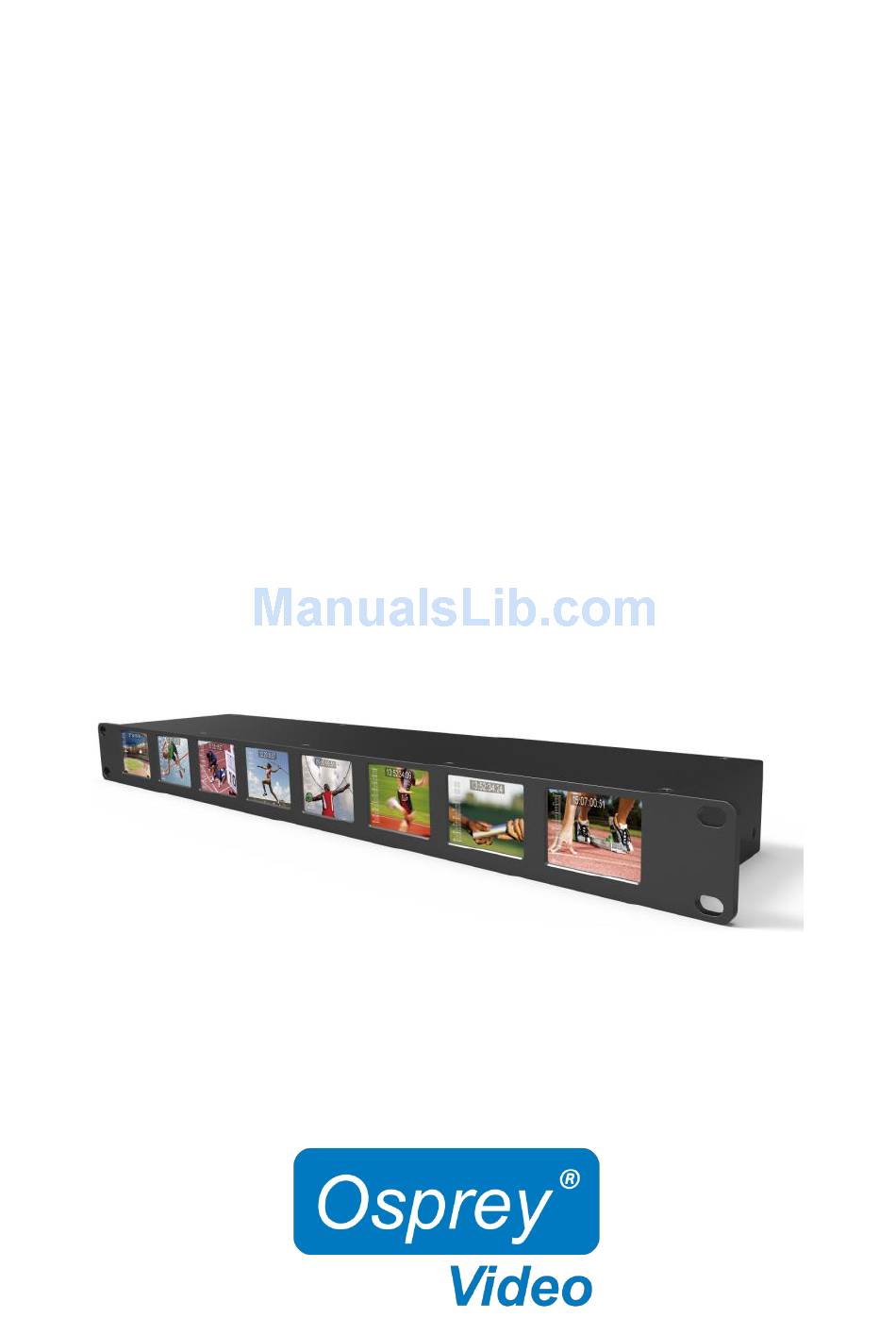

User Guide MVS-8... - Page 2 FEATURES: 1RU rack mount monitor with eight 2” displays 8x 3G-SDI Inputs, 8x 3G-SDI Loopouts Audio Meters, Time Stamp Custom Text Overlay 2yr Warranty. Content 1. PRODUCT DESCRIPTION .............. 2 2 CONTROL SOFTWARE ..............3 3.
-
Page 3: Product Description
1. PRODUCT DESCRIPTION 1． Power switch 2． 15V Locking DC power jack. 3． RS422 input. RJ12 to DB9 Adapter Included 4． SDI output BNC. 5． SDI input BNC. 6． DIP Switch for Audio Bars and Time Stamp Selection 6-1. Switch 1&2 control the (even number) monitors on the left of DIP Switch;... - Page 4 6-2. Switch 1&3 as time code switch. 6-3. Switch 2&4 as audio level meter switch. 2. RS422 Control Software 1. Connect your PC’s RS422 port to MVS-8, Power Up the unit and launch the PC software “MVS8_Controls.exe” which is available for download at...
-
Page 5: Specifications
2. In Com Settings, select the serial interface, click the Open button to open the serial port. 3. Choose the monitor you want to control. 4. The following settings can be changed: （1）Brighness control （2）Contrast control （3）Time code switch （4）Level meter function switch （5）UMD switch function.
