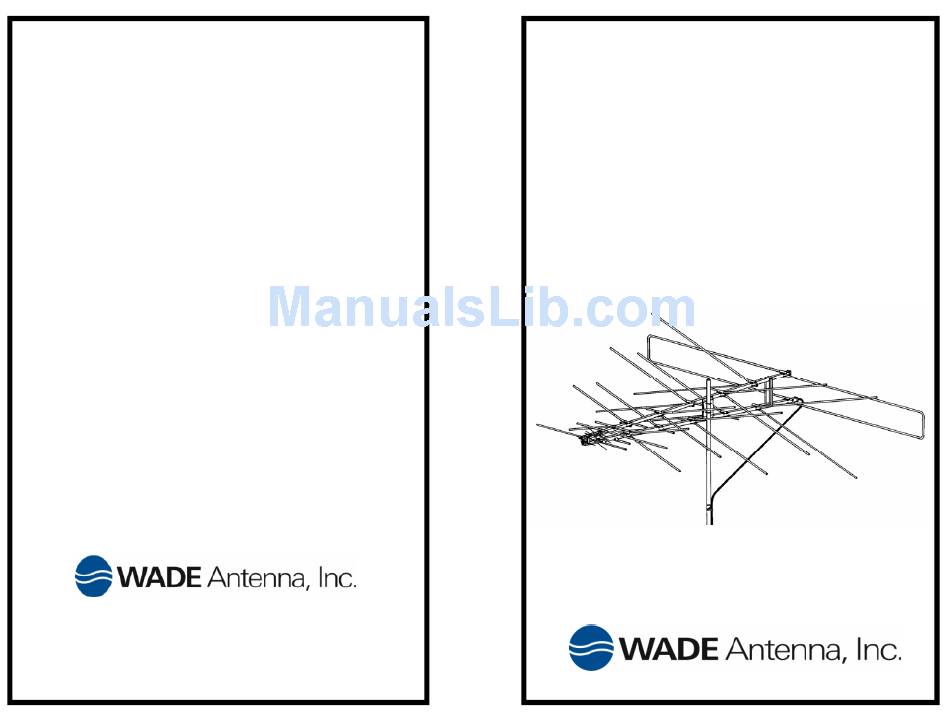

- Page 1 INSTRUCTION BOOKLET Please Note: A qualified structural engineer should be consulted prior to mounting an antenna on a tower or support structure. J-283X RUGGEDIZED VHF-UHF-FM J-SERIES ANTENNA www.wadeantenna.com 30332-001 Rev. J...
- Page 2 1-GENERAL DESCRIPTION 6-ANTENNA MOUNTING The TACO Model J-283X VHF-UHF-FM antenna is of rugged design and Assemble the mast clamp plate and U-bolts to the insulated crossarm separator will operate through the CH2 to CH83 television channels as shown in Figure 4. U-bolts will accommodate masts up to 2” in diameter.
- Page 3 4-SPECIFICATIONS ELECTRICAL See Gain Curves GAIN (dBic) IMPEDANCE 75 ohm, 1.5:1 VSWR FRONT-TO-BACK RATIO VHF: 18 dB; UHF: 20 dB BEAMWIDTH (degrees) VHF: (Lo) 70°, (Hi) 45°; UHF: 55° ...
- Page 4 5-ASSEMBLY Machine screws and hex nuts are provided for bolting on the double sections of the “X” elements and the shorter straight elements. Lock washers should be used with a spintite or wrench. Do not over tighten. Over tightening to the point of element or crossarm distortion will weaken the antenna assembly.
