SMITSVONK SPI Operation And Maintenance Manual

High energy portable ignition assembly

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

OPERATION AND MAINTENANCE

SMITSVONK HIGH ENERGY PORTABLE

IGNITION ASSEMBLY

Read before commencement of all work!

This ignition unit must be mounted in accordance with the applicable regulations.

Smitsvonk Holland B.V.

P.O. Box 180

2700 AD Zoetermeer

The Netherlands

MANUAL

TYPE: SPI

E-mail :

Phone:

Fax:

sales@smitsvonk.nl

+31(0)79 3613533

+31(0)79 3611378

Table of Contents

Need help?

Do you have a question about the SPI and is the answer not in the manual?

Questions and answers

Summary of Contents for SMITSVONK SPI

Page 1 OPERATION AND MAINTENANCE MANUAL SMITSVONK HIGH ENERGY PORTABLE IGNITION ASSEMBLY TYPE: SPI Read before commencement of all work! This ignition unit must be mounted in accordance with the applicable regulations. Smitsvonk Holland B.V. P.O. Box 180 E-mail : sales@smitsvonk.nl 2700 AD Zoetermeer...
Page 2: Table Of Contents
A voltage of 2.000 Volts is generated to create the ignition sparks in the ignition device. Post address: Visit and delivery address: Smitsvonk Holland B.V. Smitsvonk Holland B.V. P.O. Box 180 Goudstraat 6...
Page 3: Introduction
Designing the products to the customer’s required specifications attained this and this is where Smitsvonk Holland has strongly her believes in. Smitsvonk guarantees a safe use of the ignition systems only when this is used in the customers required application that is mentioned in her specifications. To use these ignition systems in applications of which it was not designed for is not recommendable.
Page 4: General
GENERAL Information on the operating manual This operating manual provides important information on working with the portable ignition unit. Safe working can only be ensured by adhering to all the safety remarks and instructions provided. In addition, the locally applicable accident prevention laws and general safety regulations must be followed.
Page 5 Special safety remarks In order to draw attention to special hazards, the following symbol is used in conjunction with safety remarks: DANGER! Fatal danger due to electrical current! … denotes a potentially fatal situation due to electrical current. Failure to adhere to the safety instructions can give rise to the danger of serious injury or death.
Page 6 Spare parts WARNING! Danger of injury due to the use of incorrect spare parts! Incorrect or faulty spare parts can result in damage, malfunctions or total failure of the equipment as well as posing a safety hazard. – Only use original spare parts from the manufacturer.
Page 7: Safety
SAFETY This section provides an overview of all important safety aspects for optimum protection of personnel as well as safe, trouble free operation. Failure to observe the operating instructions and safety remarks contained in this manual can cause serious injury. Owner’s responsibility\ ...
Page 8 knowledge of the applicable regulations of working on gas installations and of independently recognizing possible hazards. Gas specialists have received training specifically for the work environment in which they are employed and are familiar with the relevant standards and regulations. ...
Page 9 To be worn at all times Wear the following for the performance of all work: Protective work clothing This comprises tight-fitting work clothes which are resistant to tearing, have tight-fitting sleeves and no projecting parts. This is required primarily to protect against burns. Safety glasses To protect the eyes for particles, dust and sparks.
Page 10 Special dangers Remaining dangers are listed in the section below. The remarks provided here and the safety instructions in the subsequent chapters of this operating manual must be observed in order to reduce the possible risk to health and prevent the occurrence of dangerous situations.
Page 11 Sharp edges and pointed corners CAUTION! Danger of injury on edges and corners! Sharp edges and pointed corners can cause chafing of the skin and cuts. – Take particular care when performing work near to sharp edges and pointed corners. –...
Page 12: Storage And Transportation
Till the day of delivery Smitsvonk is responsible for the supplied materials. Damages caused after the delivery are not under the guarantees of Smitsvonk anymore. If the customer is taking care of the transport itself the responsibility of Smitsvonk stops at the moment of transfer of the products.
Page 13: Product Description

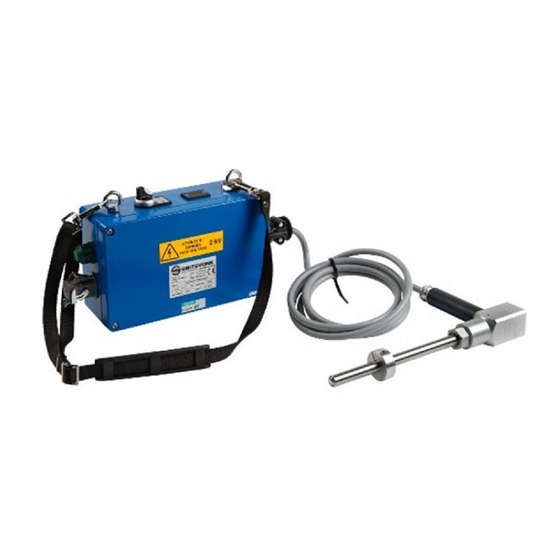

Ignition control board SPI H1 = Accu indicator dc, 8mm triclour LED R/YL/GN S1 = Mainswitch - OFF / ON S2 = Push-button white - START IGNITION Li-ion accu 14,8V 2,6Ah DETAIL OF IGNITION UNIT HD-SPI ( SMITSVONK PORTABLE IGNITER ) Smi_Std_Man_SPI_EN_06-2016...
Page 14: Technical Data
: 4,4 kg including cable and a lance of 1000 mm : 4,8 kg including cable and a lance of 1500 mm : 5,2 kg including cable and a lance of 2000 mm SPI Ignition unit : Smitsvonk P/N. 106464 Ignition lance...
Page 15: Operation Instruction
OPERATION INSTRUCTIONS Also check the operation instructions of the furnace or boiler! Ignition unit is provided with a main on/off switch. Always switch the ignition unit off when the ignition unit is moved! Never make sparks on places were this is not allowed! Never touch the sparkplug when the unit produces sparks! Never point the ignition lance to other people! Before pressing the pushbutton, the ignition lance must be placed into the ignition hole of the main burner.
Page 16: Charging The Battery
CHARGING OF THE BATTERY The three collar LED indicates the power level of the battery. Continuous red LED means that the battery must be charged, a blinking red LED means that the unit is stopped. MAIN SWITCH IN OFF POSITION REMOVE PROTECTION CAP CONNECT THE PLUG TO THE SOCKET THE RED LINE ON THE PLUG AND SOCKET...
Page 17: Maintenance Instruction
MAINTENANCE INSTRUCTIONS Besides charging of the battery from time to time no further maintenance is normally required. It is only of importance to keep the unit clean, and not expose it to high temperatures or high humidity. The spark plug in the ignition lance is the only part that is subject to wear. To replace the spark plug it is necessary to remove the ignition lance from the handle.
Page 18: Parts List
Push-button WHITE, ITW 76-9111/439088 IP67/10A/250Vac SESC000244 RECOMMENDED SPARE PARTS FOR NORMAL OPERATION 1 x Fuse 1,6 A (slow) type TR5. Smitsvonk article number SEKM090116. 1 x Ignition lance, see unit for the length and diameter of the lance. Type Lance Length Art.
Page 19: Dismantling And Disposal
DISMANTLING AND DISPOSAL Disposal After the end of its service life, the flame monitor must be dismantled and sent for environmentally responsible recycling. By making your contribution to the correct disposal of this product, you are helping to protect the environment and preserve the health of your fellow human beings.
Page 20: Drawing
DRAWING: NS160256-0 page 1. Smi_Std_Man_SPI_EN_06-2016...
Page 21: Eu Declaration Of Conformity
Smi_Std_Man_SPI_EN_06-2016...
Page 22: Durag Group Company Addresses
DURAG GROUP COMPANY ADDRESSES Smi_Std_Man_SPI_EN_06-2016...
