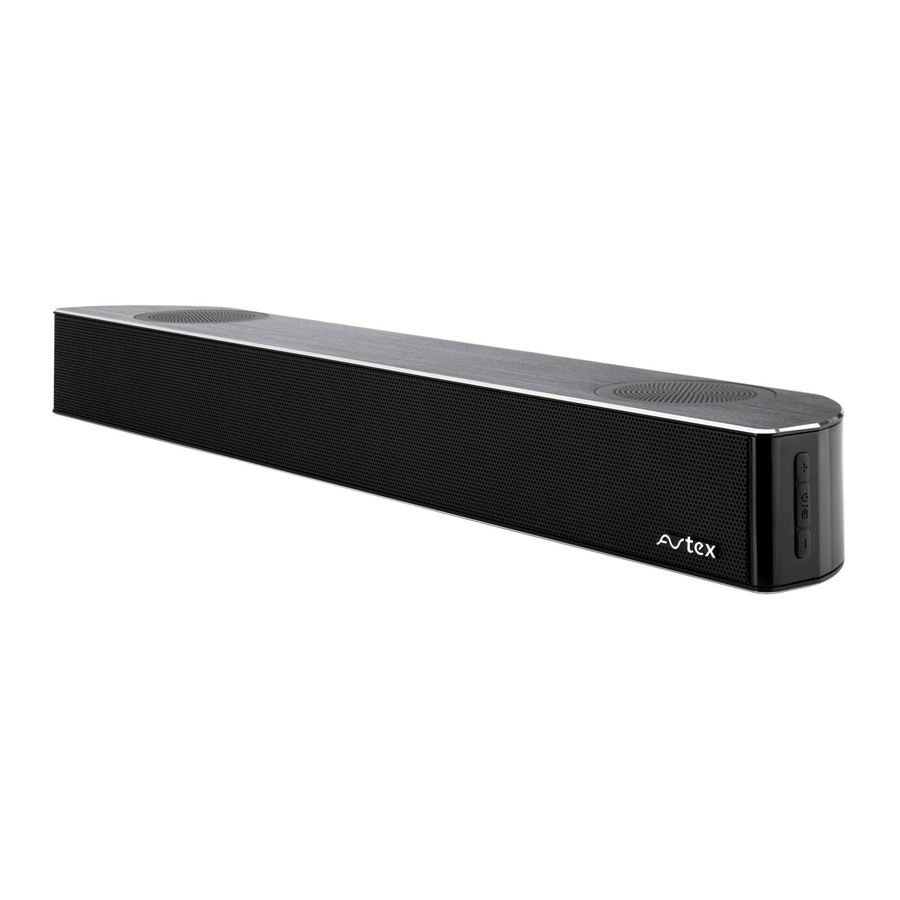

Summary of Contents for Avtex SB195BT

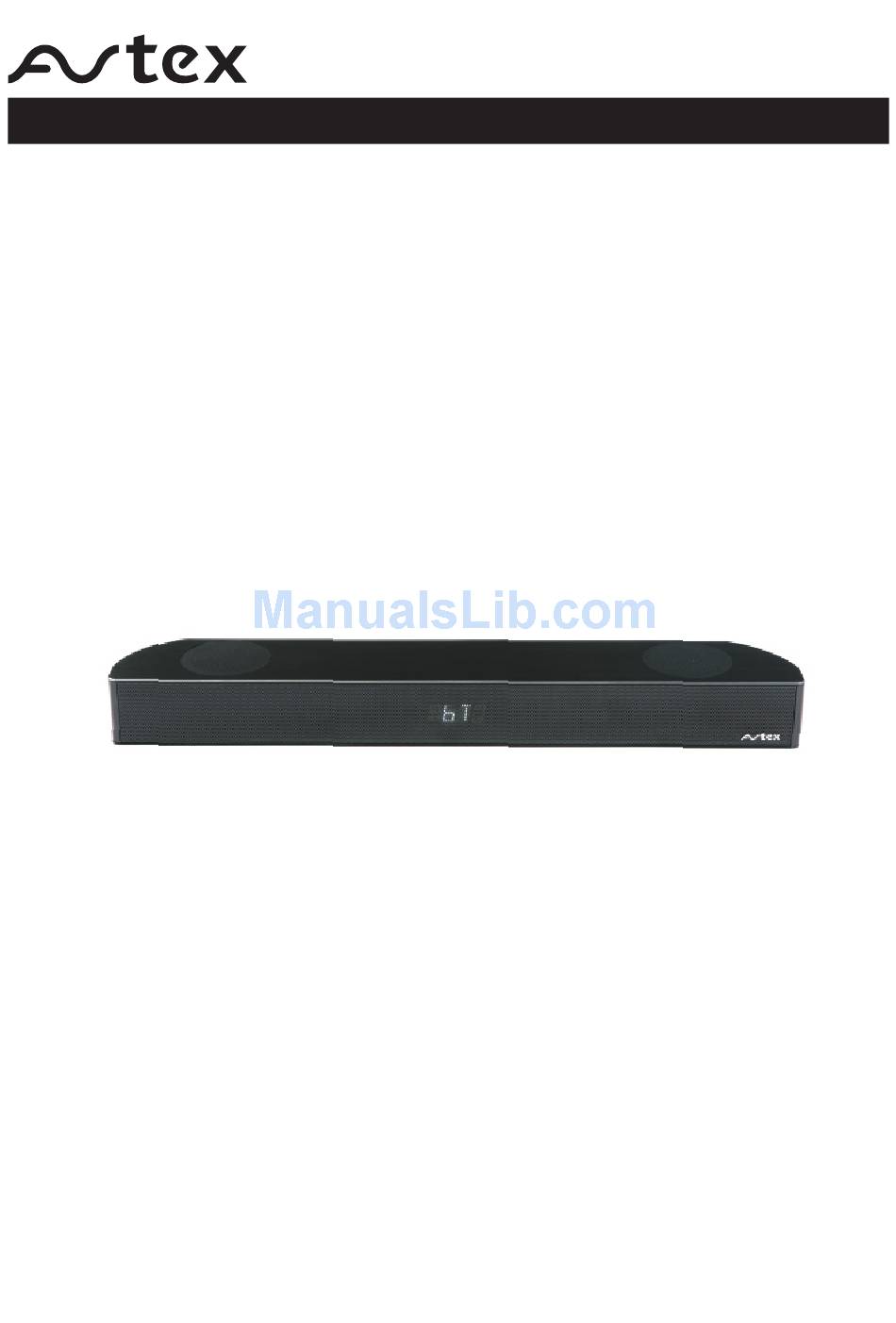

- Page 1 SB195BT Mini Soundbar Instruction Manual...
-
Page 3: Some Dos And Don'ts On The Safe Use Of Equipment
Some Dos and Don'ts On The Safe Use Of Equipment This equipment has been designed and manufactured to meet international safety standards but, like any electrical equipment, care must be taken if you are to obtain the best results and safety is to be assured. -
Page 4: Battery Safety Guidelines
Battery Safety Guidelines Used correctly, domestic batteries are a safe and dependable source of portable power. Problems can occur if they are misused or abused - resulting in leakage or, in fire or explosion. Here are some simple guidelines to safe battery use designed to eliminate any such problems. -
Page 5: Safety Warnings
Safety Warnings Read all the instructions carefully before using the unit and keep them for future Ÿ reference. Retain the manual. If you pass the unit onto a third party make sure to include this Ÿ manual. Check that the voltage marked on the rating label matches your mains voltage. Damage Please inspect the unit for damage after unpacking. - Page 6 Mains Cable Make sure the unit or the unit stand is not resting on top of the mains cable, as the weight Ÿ of the unit may damage the cable and create a safety hazard. Interference Do not place the unit on or near appliances which may cause electromagnetic Ÿ...
-
Page 7: Table Of Contents
Table of Contents Some Dos and Don'ts On The Safe Use Of Equipment..............Battery Safety Guidelines........................Safety Warnings............................Product Overview........................... Front view............................. Back view............................Remote Control............................Remote Control Battery Replacement....................Battery Installation........................Remote Control Operation Range.................... Standard Accessories..........................Normal installation..........................Power Connections.......................... -
Page 8: Product Overview
Product Overview Front view Back view 12V/24V AUX IN HDMI ARC COAXIAL 12V/24V AUX IN HDMI ARC COAXIAL Power indicator(Standby & on) 6. DC IN socket Remote Control sensor 7. AUX IN socket 3. LED Display HDMI ARC socket 9. USB •... -
Page 9: Remote Control
Remote Control • To switch the unit between ON and STANDBY mode. • Press to select a preset sound effect. Default EQ is MUSIC, press to switch to NEWS, NORMAL and MUSIC as recycle. • Press to mute or resume the sound. 4. -
Page 10: Remote Control Battery Replacement
Remote Control Battery Replacement Battery Installation 1. Unclip and remove back cover to open battery compartment of the remote control 2. Insert two AAA size batteries. Make sure the (+) and (-)ends of the batteries match the (+)and (-)ends indicated in the battery compartment. 3. -
Page 11: Standard Accessories
Standard Accessories Standard Accessories Remote Control x 1 pc AAA batteries x 2 pcs Instruction Manual x 1 pc Power adaptor x 1 pc Car adaptor x 1 pc AC cord x 1 pc AUX cable x 1 pc HDMI cable x 1 pc Coaxial cable x 1 pc... -
Page 12: Normal Installation
Normal installation Parts Screws A x 2 Bracket x 1 Mini soundbar x 1 TV x 1 Installation 1. Disassemble the TV stand from the TV 2. Using the bracket to assembly the mini soundbar with TV. step 1: Existing TV stand screws step 2: Bracket x 1 Existing TV stand screws... -
Page 13: Power Connections
Power Connection Caution: - Risk of product damage! Ensure that the power supply voltage corresponds to the voltage printed on the rating label on the back or on the underside of the unit. - Before connecting the power cable , ensure that you have completed all the other connections. - Connect the small end of power socket at the back of unit and insert the plug of power adaptor into standard AC wall outlet. -
Page 14: Hdmi Connection
HDMI Connection With compatible TVs HDMI-CEC and ARC If you connect your sound bar to a compatible TV HDMI-CEC and ARC (Audio Return Channel), you can play the sound from your TV through your sound bar without using additional audio cable. 12V/24V AUX IN HDMI ARC... - Page 15 To enjoy the sound and image. You can enjoy both sound and image for a device connected to your sound bar. HDMI 2 HDMI 1 (ARC) 12V/24V AUX IN HDMI ARC COAXIAL DVD player, HDMI OUT Blu-Ray player, a games console… - To do so, plug HDMI cable (not supplied) to the HDMI 1 or HDMI 2 jack on the back of the TV and the other end into the HDMI OUT jack on your audio device, such as DVD player, Blu-Ray player, games...
-
Page 16: Usb Connection
USB Connection Connecting a USB mass storage device (including USB flash memory, USB flash players or memory cards) to this unit to enjoy the device’s stored music through the powerful speakers of this unit. 1. Insert the USB device into the port at the rear of the unit. -
Page 17: Analogue Input Connection
Analogue Input Connection Connecting DVD player/T V outpus to analogue input from the soundbar . - Use a 3.5mm line in to RCA audio cable to connect the DVD player/TV output with the AUX input socket from the soundbar . 12V/24V AUX IN HDMI ARC... -
Page 18: General Operation
General Operation Standby/ON When you connect the unit for the first time to the power supply, the unit will automatically switch on. - Press the button on the remote control or press and hold the on the unit to switch the main unit to STANDBY mode, the POWER indicator will illuminate red. -
Page 19: Operation
2. Activate the Bluetooth function on your device and select the search mode. “ Avtex SB195BT ” will appear on your Bluetooth device. 3. Select “Avtex SB195BT" in the pairing list. After successful pairing, LED display will display bT. Tips: •... -
Page 20: Trouble Shooting
Trouble shooting Trouble shooting To keep the warranty valid, never try to repair the system by yourself. If you encounter problems when using this unit, check the following points before requesting service. No power • Ensure that the mains cable is connected securely. •... -
Page 21: Specifications
Specification Power Supply: AC100-240V~50/60Hz Power Adapter:12V (0.75A)/24V (0.42A) Power Consumption: 10 Watt Power Consumption(standby mode): < 0.5 Watt Input Sensitivity: 700mVrms High Frequence Speaker Impedance: 8 Ohm Main Speaker Impedance: 4 Ohm S/N(A Weight): 80dB Power Output: 10 W x 2 THD(1kHz, 1W): 0.5% Frequency Response: 40Hz~20KHz Dimensions: 436x68x46mm... -
Page 22: Care And Maintenance
Care and maintenance Disposal This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.
