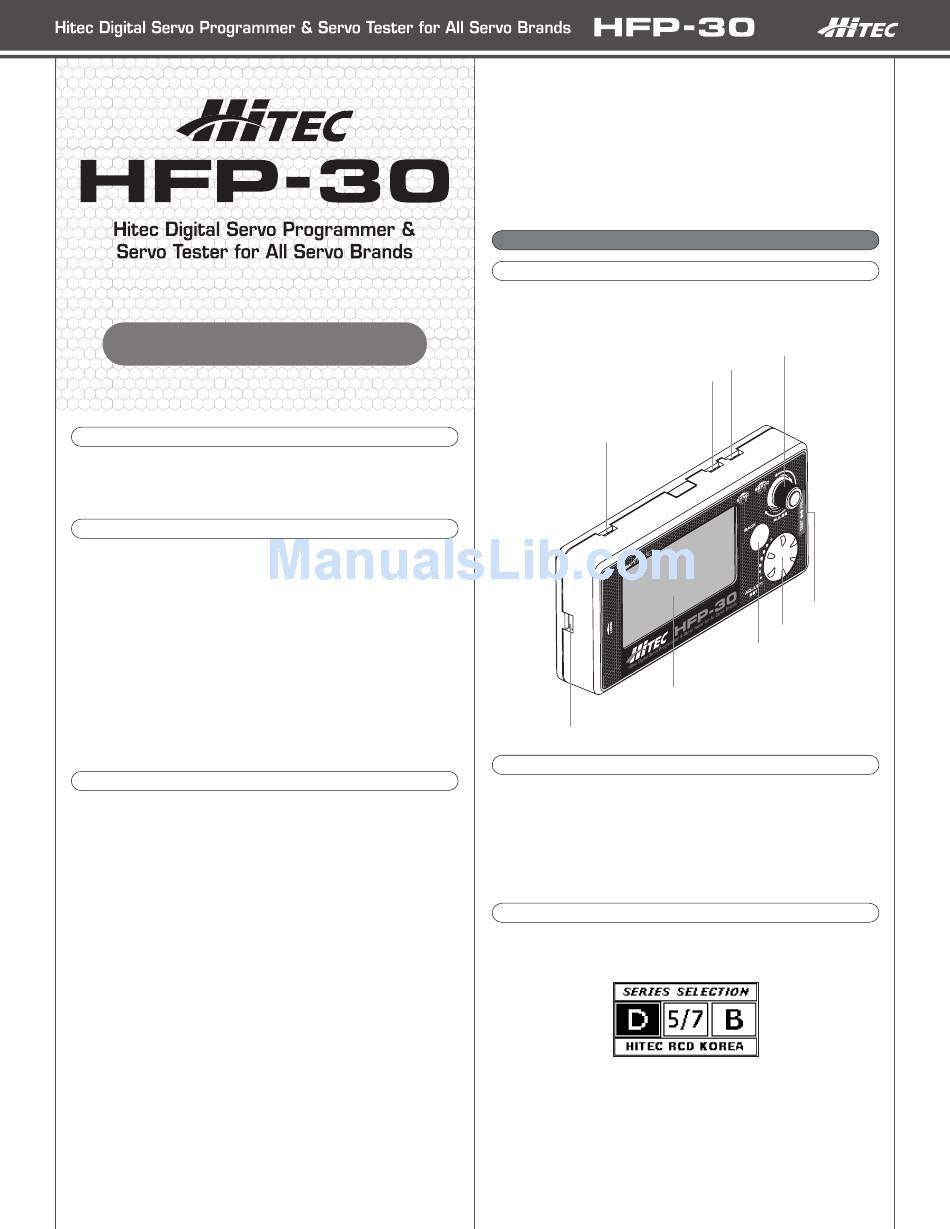

Instruction Manual
Introduction
Congratulations on the purchase of the HFP-30. The HFP-30 is
designed to program all Hitec Digital Programmable Servos (D Series,
5xxx/7xxx, and Brushless) as well as test any brand servo.
Contents
Layout
Powering On
Main Screens
1.
Main Programming Screen
2.
1.
2.
Auto Test
3.
Auto Deadband Testing
4.
1)
Set EPA/Neutral
2)
Servo Sync
3)
Set Rotation (CW_CCW)
4)
Set Deadband (DB_Width)
5)
Set Speed
6)
Set ID (ID_Read)
7)
Set Failsafe
8)
Set Soft Start
9)
Factory Reset (Factory Default Set)
1)
Set EPA/Neutral
2)
Servo Sync
3)
Set Rotation (CW_CCW)
4)
Set Deadband (DB_Width)
5)
Set Speed
6)
Set Failsafe
7)
Set Resolution
8)
Set Overload Protection (OLP)
9)
Factory Reset (Factory Default Set)
1)
Set EPA/Neutral
2)
Servo Sync
3)
Set Rotation (CW_CCW)
4)
Set Deadband (DB_Width)
5)
Set Speed
6)
Set Failsafe
7)
Set Soft Start
8)
Factory Reset (Factory Default Set)
Contents
Layout
1.
Adjust Dial
2.
Back Button
3.
Analog Dial for Pulse Adjustment
4.
USB Port
5.
Test/Program Select Switch
6.
Battery/Receiver Port
7.
Servo Sync Port
8.
Servo Port
9.
LCD
6
4
Powering On
The HFP-30 is powered by a user provided 4.8VDC to 7.4VDC battery
pack plugged into the Batt/RX slot. Optionally, a receiver with the
correct adapter can power the unit.
Note: Make sure the battery voltage corresponds to the servos
being used. Do not use a 7.4V battery with a servo designed for
6V and under, or damage may occur to the servo.
Main Screens
Depending on the position of the Test/Program select switch, the
following screens will appear when powered on. Once powered on,
it is possible to toggle between the screens using the Test/Program
switch.
Main Programming Screen
Use the Adjust Dial to switch between the three different series of
servos. Once the correct one is highlighted, press the Adjust Dial to
enter.
3
8
7
5
1
2
9
