Summary of Contents for Aquatic L061

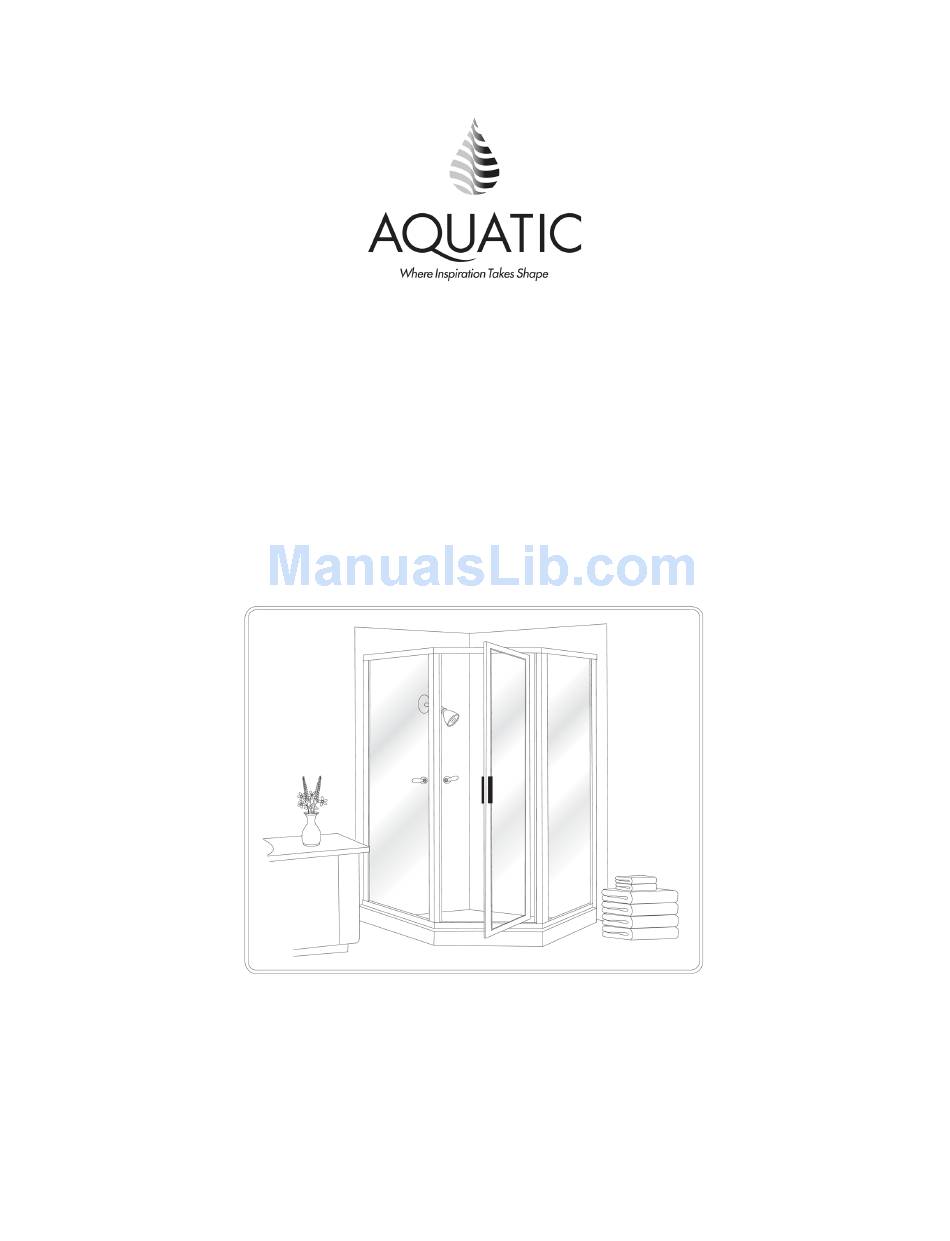

- Page 1 INSTALLATION INSTRUCTIONS BUILDERS’ CHOICE FRAMED Shower Height Neo Angle Swing Door Model: L061 Rev. 09.20.13...
- Page 2 To install your Aquatic shower door you will need the following: tape measure, level, #2 Phillips screwdriver, 3/16” wrench, drill, 1/8” and 3/16” drill bits, hacksaw, pencil, and caulking (clear silicone recommended).
-
Page 3: Parts List
S. 2 Drip Plugs 6 #8 x 1 1/2” Truss Head Screws DD. 2 #6 x 1 1/4” Round Head Screws T. 1 Tapered Drip Vinyl EE. 1 Aquatic Decal 2 Pre-Glazed Side Panels V. 1 Roll Double Stick Taped 2 135 Posts... - Page 4 The Aquatic Shower Enclosure is completely reversible and may be installed pivot-left or pivot-right. For maximum waterproofing, the pivot jamb should be opposite the shower head. Using the diagram, determine the correct position for the door in your particular Quick-N-Stall installation.
- Page 5 1/8” diameter holes to install mounting screws directly into the reinforcement. If walls are not reinforced, drill 3/16” holes and install plastic wall anchors or Molly bolts WEEP SLOT (Molly bolts not supplied by Aquatic). #8 x 1/2” Wipe the shower walls and sill, curb assembly SCREW [A] and wall jambs [E] with a clean, dry cloth to remove any dust or debris.
- Page 6 MEASURE AT TOP OF HEADER JAMBS AND POSTS ASSEMBLY Using a 3/16” drill bit, drill the interior face of the header assembly on both ends as shown. These holes may be predrilled from the factory. 1/4” Press the header assembly [D] over the wall HEADER jambs [E], the 135°...
- Page 7 Aquatic Page 7 of 9...
- Page 8 HEADER SAFETY Insert the two nylon pivot bushings [Y] into WASHER the pivot holes in the head and curb fillers [P]. Lift the door panel [L] and insert the top pivot pin into the pivot bushing in the header filler. Hold the door vertical and insert the bottom pivot pin into the pivot bushing in the curb filler.
- Page 9 We recommend you wait twenty-four hours before the first shower to allow the caulking to cure properly. Note: Do not caulk over weep holes INTERIOR FACE Peel off the backing on the Aquatic decal OF HEADER [EE] and apply to the inside surface of the header. DECAL...
