Front panel
1.
2.
3.
4.
5. VOL-
6. VOL+
7.
USB socket
(1)
(2)
(3)
1.
/Source: After main power on, press
for input mode selection. Long pressing /Source button
will put the unit in "Stand-by" mode.
2. You can change the input modes by pressing /Source
button. Color of LED in AUX mode is Red, Blue in USB/BT
and Purple in FM mode.
BT INPUT
track selection
short press
previous/next
short press
play/pause
bluetooth
/SCAN
function can be
long time press
force-
disconnected
(4)
(5)
/Source button
AUX INPUT
USB INPUT
FM TUNNER
track selection
previous/next
previous/next
channel selection
mute
play/pause
automatic search
fm radio
station/channel stored
automatically
Operation explanation:

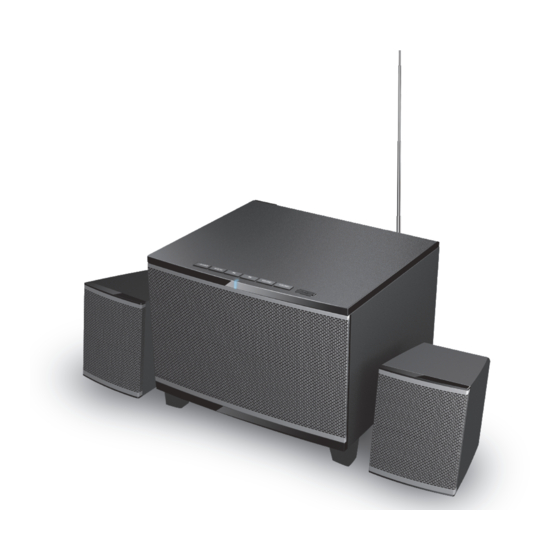

3" x2 + 5" subwoofer
7
Features:
Ÿ
Quality 2.1 speaker system with built-in amplifier
Ÿ
Full audio spectrum performances, ideal for your favourite entertainment
from Mp3, Mp4, CD/DVD movies and digital playbacks
Ÿ
Specially designed woofer cabinet for bass and resolution
Ÿ
Comes with remote control and RCA stereo connection
Package contents:
subwoofer cabinet
satellite speakers
remote control
User manual
Audio input cord
Hanging screw
Screw Supporter
How to use the remote control
(1)
(3)
(5)
(7)
(9)
(11)
(13)
(7)
(6)
1. ST-BY (Stand-by): Turns on the unit; default input mode is AUX. When in
ST-BY mode the LED will blink in Red colour; after turning on the unit, the
LED will glow in Red colour.
2. MUTE: Turn off volume. Press again to activate volume.
3. AUX: AUX input mode selection, red LED will be on.
4. POP: A kind of EQ mode, only workable at USB/BT mode.
5. FM: FM mode selection. When you enter FM mode, the purple LED will be on.
Long press
6. NORMAL: A kind of EQ mode, only workable at USB/BT mode.
7. BT: Bluetooth reader mode selection. When you enter Bluetooth input mode,
mute
Blue LED display right bottom start to flashing (2 seconds) to search the
Bluetooth device. Turn on your mobile Bluetooth device and search the
device name "BT SPEAKER ", paired them well.When you have successfully
paired your mobile to the speaker system, the LED right bottom stop flashing.
20W+12.5Wx2(RMS)
~120V 60Hz
W245xH187xD212(mm)
W93xH118xD103(mm)
AUX
FM
POP
NORMAL
USB
BT
JAZZ
ROCK
/
to search and store FM stations/channels automatically.
1 pc
2 pcs
1 pc
1 pc
1 pc
2 pcs
2 pcs
(2)
(4)
(6)
(8)
(10)
(12)
(14)
(15)
