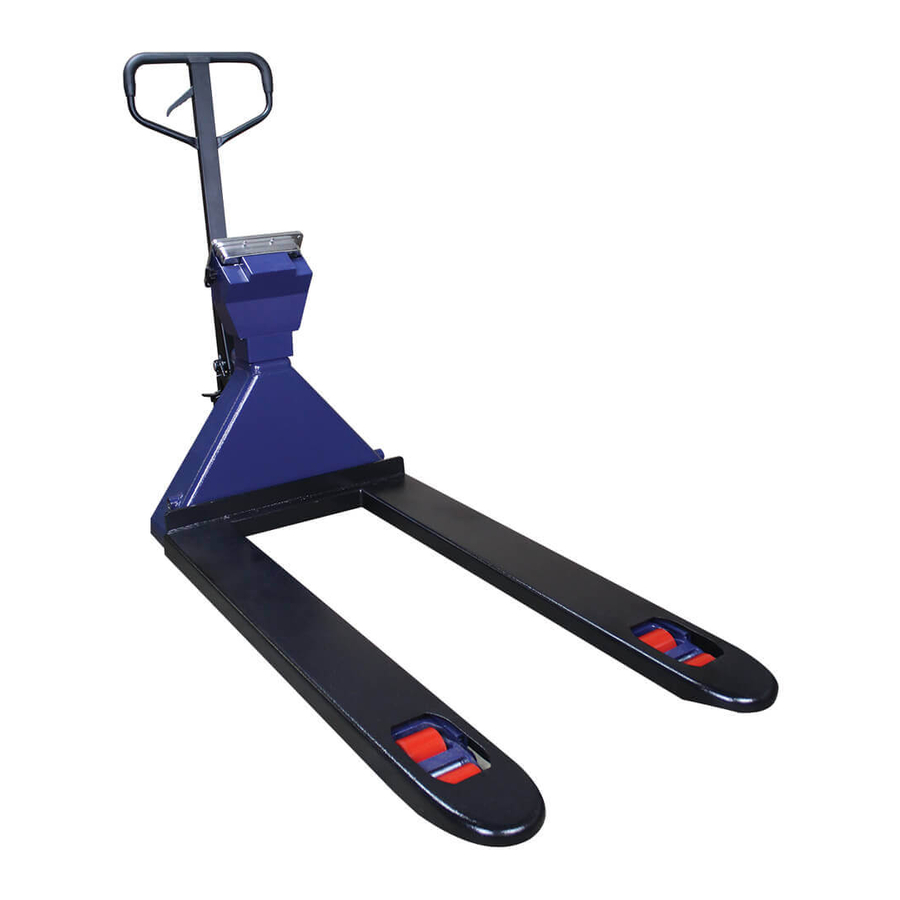

Adam Equipment PTS 2000 Instructions Manual

With ae402 indicator, pallet truck, pts series

Hide thumbs

Table Of Contents

Adam Equipment

PTS SERIES

With AE402 Indicator

(P.N. 3106610715, Revision E, April 2011)

Adam Equipment 2011 ©

Table of Contents

Need help?

Do you have a question about the PTS 2000 and is the answer not in the manual?

Questions and answers

Summary of Contents for Adam Equipment PTS 2000

Page 3: Table Of Contents
For your safety and correct operation, please read the following instructions carefully before using it. CONTENT SAFETY ..........................3 INSTRUCTION ........................5 SPECIFICATIONS ......................5 PACKING LIST......................5 INSTALLATION........................8 AE 402 ASSEMBLY ....................10 CALIBRATION ......................... 13 TROUBLE SHOOTING ....................14 MAINTENANCE ......................15 Adam Equipment 2011 ©...
Page 5: Safety
• Avoid unsuitable and uneven floor surfaces • Please wear protective clothing where necessary • Allow 60cm clearance from the pallet truck when operating. • Pay attention and focus on the object you are lifting • Do not overload. Adam Equipment 2011 ©...
Page 7: Instruction
M4 x 6 SS Soc Head cap Screw din912-A2 3106610715 PTS Manual/Instructions 3101010700 M4 Allen key 3101710929 Roller pin φ 20 x 86 3101710930 Spring in φ 5 x32 3101711228 Split Pin φ5×50（galvanized） 3101210931 Handle 2100010935 AE402 indicator assembly 3104010713 AE402 load cell cable Adam Equipment 2011 ©...
Page 10: Installation
4) Remove the transit rod before use. Press the handle down only far enough to release any pressure on the transit rod, then pull the transit rod free. Adam Equipment 2011 ©...
Page 12: Ae 402 Assembly
AE 402 ASSEMBLY Rear view of AE 402 Indicator Fit the PTS to Indicator cable as shown in the picture below: 5 pin connector fitted here Adam Equipment 2011 ©...
Page 13 Allen Key supplied . M4 x 6 Screws 4 places The Indicator cable goes through the hole on the bracket and connects to the Indicator using the 7 pin connector. 7 pin connector fitted here. Adam Equipment 2011 ©...
Page 14 The AE 402 indicator is placed into the mounting bracket, and secured using the two plastic fasteners as shown below: Plastic fasteners used to secure Indicator to the bracket. Adam Equipment 2011 ©...
Page 15: Calibration
CALIBRATION The PTS is factory calibrated, please refer to the user manual for the indicator supplied (AE 402) when further calibration when required. Adam Equipment 2011 ©...
Page 16: Trouble Shooting
Oil spillage The oil could be unclean Change the oil. Forks descend when Some parts of the hydraulic system are damaged. Vent the air. the trigger is not in descend position Call for Service. Fig 1 Adam Equipment 2011 ©...
Page 17: Maintenance
When the truck is not in use, remove the items on the forks, and reset the forks to their lowest position. • All the bearings and axles have been lubricated, please check at regular intervals Adam Equipment 2011 ©...
Page 18: Adam Equipment
WARRANTY INFORMATION Adam Equipment offers Limited Warranty (Parts and Labour) for the components failed due to defects in materials or workmanship. Warranty starts from the date of delivery. During the warranty period, should any repairs be necessary, the purchaser must inform its supplier or Adam Equipment Company.
Page 19 Shielded interconnect cables must be employed with this equipment to insure compliance with the pertinent RF emission limits governing this device. Changes or modifications not expressly approved by Adam Equipment could void the user's authority to operate the equipment. WEEE COMPLIANCE...
Page 20 -Digital Electronic Scales for Medical use -Retail Scales for Price computing © Copyright by Adam Equipment Co. Ltd. All rights reserved. No part of this publication may be reprinted or translated in any form or by any means without the prior permission of Adam Equipment.

This manual is also suitable for:

Pts 5000a
