Summary of Contents for Eddie Current Aficionado

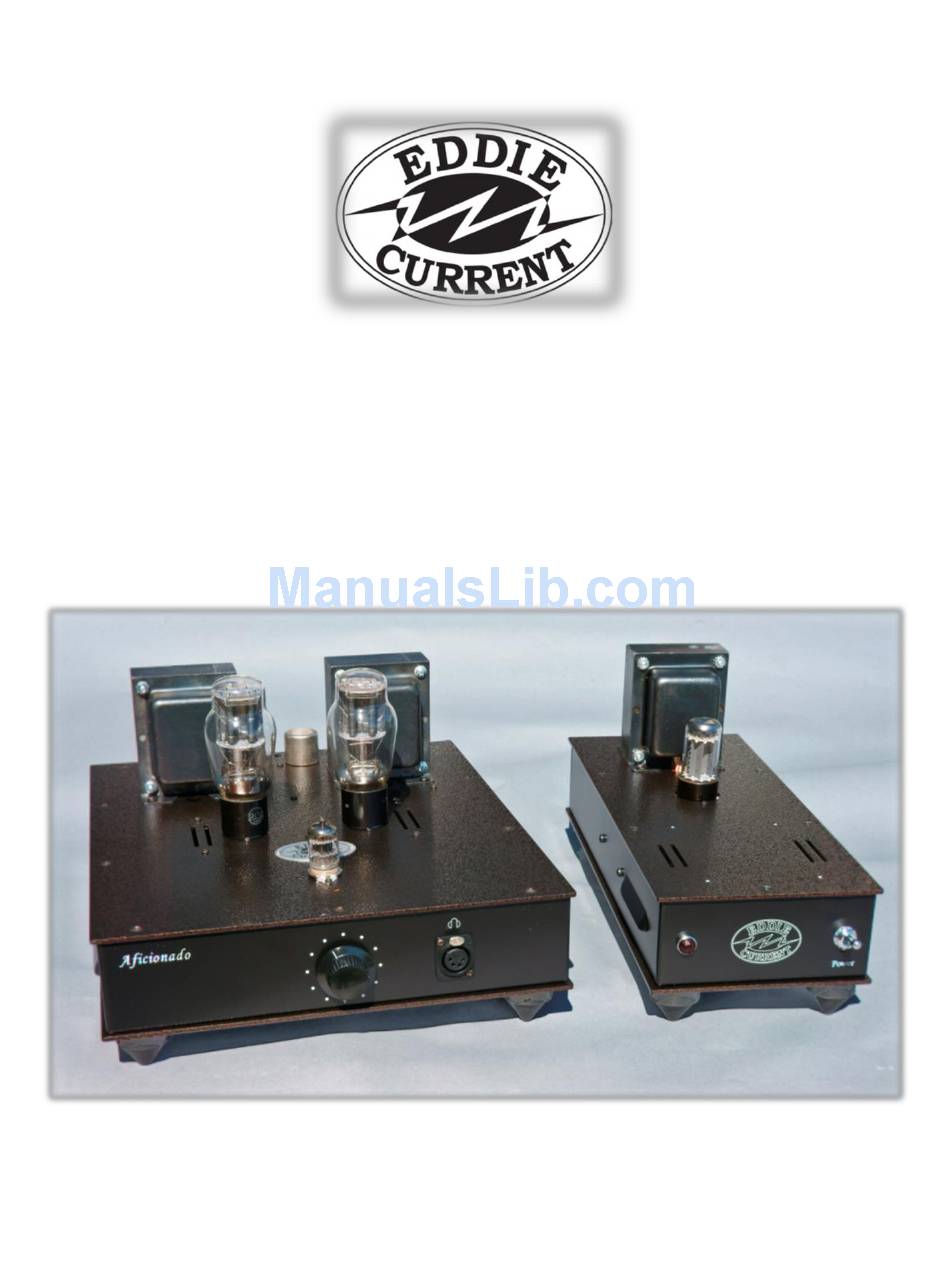

- Page 1 OWNER’S MANUAL Step Into the Music Aficionado Headphone / Speaker Vacuum Tube Amplifier For people who know what the f*** they want and what the f*** they are doing...
-
Page 2: Shipping Check
American audio design! SHIPPING CHECK The Aficionado is shipped in 2 boxes, one for the main amp and one for the power supply. Upon receiving both boxes, check for shipping damage by: 1) Gently rocking the amplifier back and forth listening for anything that may have come loose in shipping. -
Page 3: Tube Insertion
TUBE INSERTION Insert the tubes with the one 5AR4 rectifier tube going in top the power supply socket, the one 6N3P tube into the front main amp socket and your two 2A3 tubes in the main amp matching sockets. Your 2A3 tubes should have two large and two small pins; the large pins face the rear. -
Page 4: Headphone Listening
TUBE COMPLIANCE The tubes for the Aficionado are one 5AR4 rectifier tube, one 6N3P tube and two 2A3 tubes. The 5AR4 tube may be substituted with the 5Y3 or 5R4 rectifier tubes, but no other tubes are recommended. - Page 5 EDDIE CURRENT WARRANTY The aficionado comes with a one year warranty for parts and labor. Warranty does not include shipping costs. Warranties are not transferable under any conditions. If the repair is due to customer damage or tubes not supplied by Eddie Current, repairs will be charged parts and labor and will be quoted before work is performed.
-
Page 6: Specifications
4-foot detachable umbilical cord switches. 10” high W/O tubes Weight: 16 lbs Headphone/ Speaker Vacuum Tube Amplifier For another copy of this manual contact: Eddie Current at cuthus@charter.net Eddie Current, LLC 23658 Clover Trail Calabasas, CA 91032 (818) 651-2734...
