Summary of Contents for Studio Box GI-101

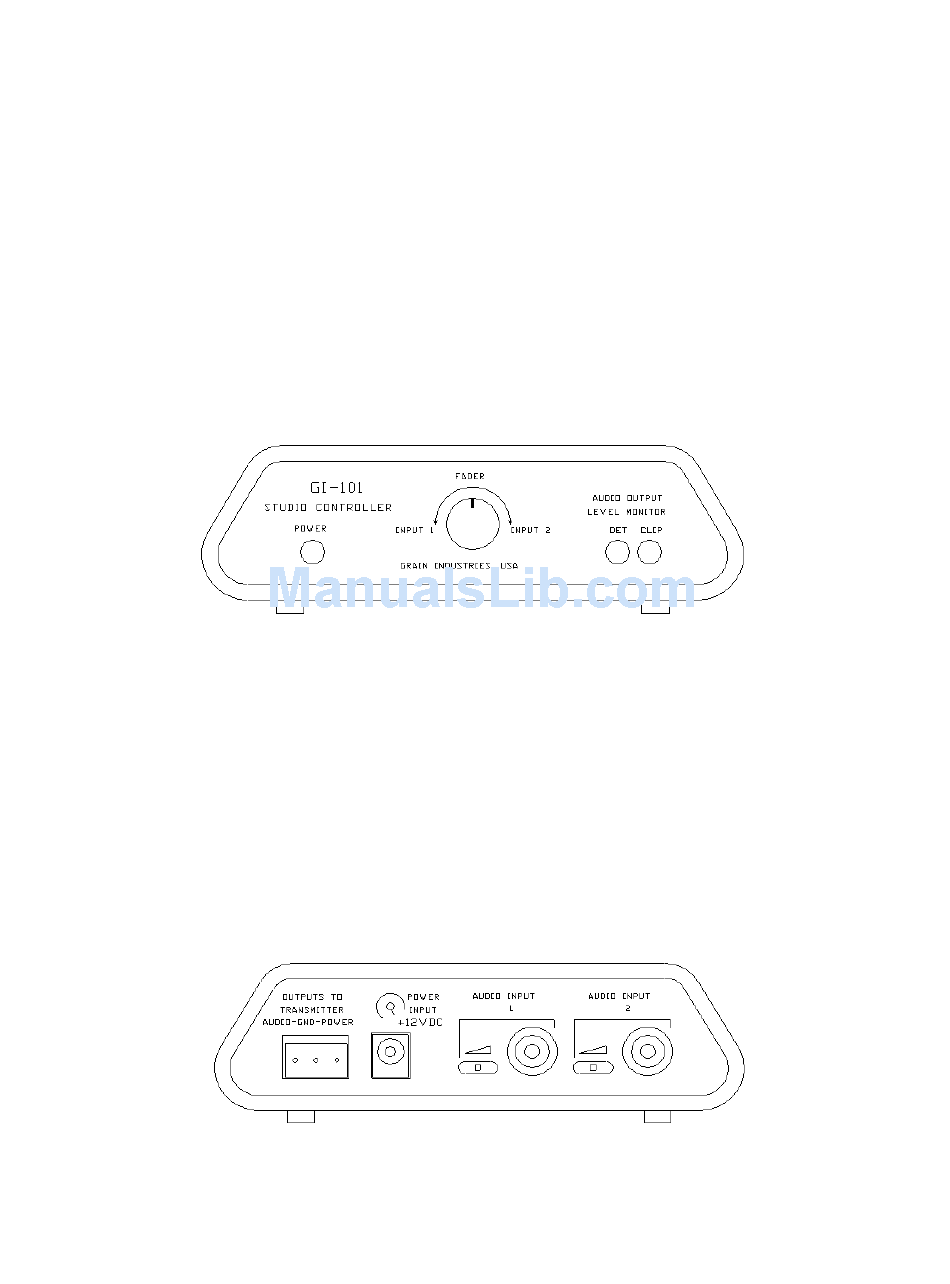

- Page 1 MODEL GI-101 STUDIO CONTROLLER Made in USA OPERATOR'S MANUAL Front View Rear View Copyright 2008, by Wayne Miller. All rights reserved.
- Page 2 Introduction The Grain Industries model GI-101 Studio Controller is the ideal solution for installing and operating the GI-100 AM transmitter. It provides the interconnects required for connecting transmitter to the power supply and multiple audio sources; and provides constant monitoring of both power and audio levels. In addition, it provides a Fader control to smoothly transition between two alternate audio sources.
- Page 3 One thing to keep in mind is that AM transmitters do not process stereo signals and if you have a stereo source, you must have an adapter that combines the two stereo channels into a single mono channel for the Studio Controller. In some cases, you may find that it is easier to use two adapters than to try to find a single adapter that will fit your needs.
