Digital Equipment DHS-SNS-DW-VIS-04 Quick Installation Manual

Z-Wave Home Automation Solutions
Being one of the most advanced Home Automation systems to date, Z-Wave is
dependable, affordable and most importantly easy to assemble without laying
down expensive cables.
The whole Z-Wave Home Automation system is based around the central home
controller, a Z-Wave gateway, which monitors the states of the devices around it
and issues commands using a secure encrypted channel. You can issue
commands to your Z-Wave gateway and control the state of your devices via your
smartphone or PC using an internet connection. The Z-Wave gateway can also be
set to automatically turn devices ON/OFF when a sensor is tripped.
Z-Wave devices are not only able to communicate with their associated Z-Wave
gateway but also any nearby devices in the network. AC powered Z-Wave
devices are also capable of forwarding commands from the Z-Wave gateway to
neighboring devices, effectively increasing the range of your network and assuring
its responsiveness is not only fast but also reliable. All devices displaying the Z-Wave
logo are interoperable regardless of whether they were produced by the same
manufacturer.
For example you can configure your Z-Wave system to automatically turn on a
siren when a motion sensor is tripped. You can also configure your Z-Wave network
to send you automated notifications via SMS or email and to save pictures or
footage depending on which devices become tripped in your home. You can
arm or disarm your system on the go with your smart phone or at home with a
conveniently placed switch. You can schedule your light to turn ON and OFF
depending on the time of day, your presence at home or other triggers/events.
Not only does Z-Wave allow you to remotely monitor and control your home it also
allows you to create unlimited scenarios to enhance your way of life. You can
remotely turn on your central heating before you come home or turn off your
child's night lamp when they fall asleep. The list is endless...
You don't have to build your entire home automation system in one go. You can
add new devices to your Z-Wave network whenever you wish in allowing you to
tailor your system to your ever-changing needs.
FEATURES
 Door/Window, humidity, temperature and illuminance sensor in
one device.
 Primarily used as dry contact Door/Window sensor, it consists of
two parts, magnet and a sensor.
 New Z-Wave 500 series chip supports multichannel operation and
higher data rates (9.6/40/100kbps)
 Can be used with various Z-Wave networks/controllers, regardless
of the manufacturers
 Very low power consumption
 Low battery auto report LED indicator
 Over-the-air firmware updates available
 Easy installation
Thank you for choosing the VISION Z-Wave D/W Sensor 4in1 (door/window
contact sensor, humidity sensor, temperature sensor, and light sensor). This
sensor is a Z-Wave enabled device (interoperable, two-way RF mesh
networking technology) and is fully compatible with any Z-Wave enabled
network and its security framework. The VISION Z-Wave D/W Sensor 4in1 sends
a Z-Wave signal when a door or window is opened/closed or there is a
humidity, temperature, luminance change.

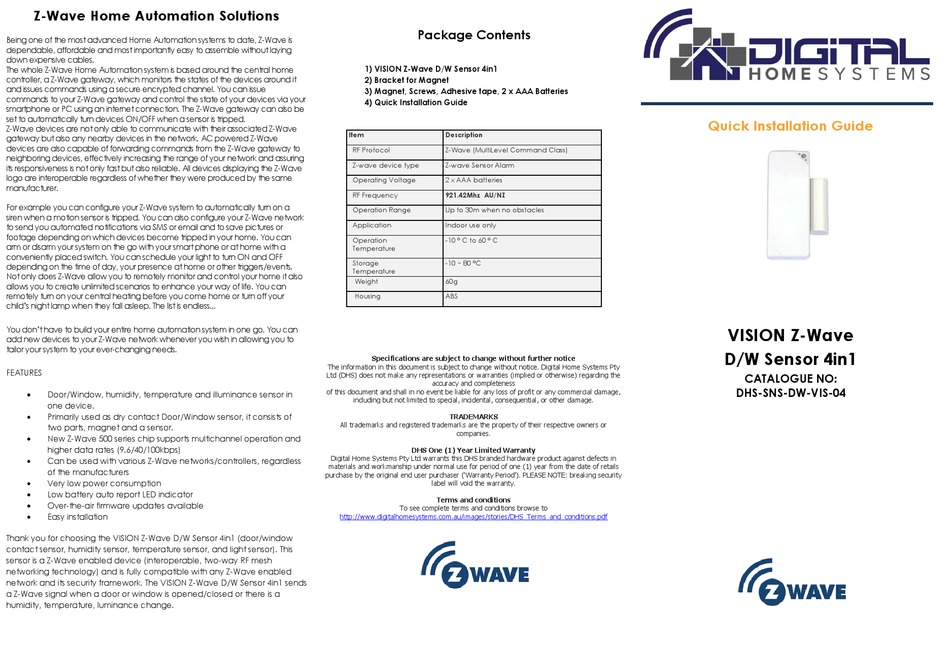

Package Contents

1) VISION Z-Wave D/W Sensor 4in1
2) Bracket for Magnet
3) Magnet, Screws, Adhesive tape, 2 x AAA Batteries
4) Quick Installation Guide
Item Description
RF Protocol Z-Wave (MultiLevel Command Class)
Z-wave device type Z-wave Sensor Alarm
Operating Voltage 2 x AAA batteries
RF Frequency 921.42Mhz AU/NZ
Operation Range Up to 30m when no obstacles
Application Indoor use only
Operation -10 ° C to 60 ° C
Temperature
Storage -10 ~ 80 °C
Temperature
Weight 60g
Housing ABS
Specifications are subject to change without further notice
The information in this document is subject to change without notice. Digital Home Systems Pty
Ltd (DHS) does not make any representations or warranties (implied or otherwise) regarding the
accuracy and completeness
of this document and shall in no event be liable for any loss of profit or any commercial damage,
including but not limited to special, incidental, consequential, or other damage.
TRADEMARKS
All trademarks and registered trademarks are the property of their respective owners or
companies.
DHS One (1) Year Limited Warranty
Digital Home Systems Pty Ltd warrants this DHS branded hardware product against defects in
materials and workmanship under normal use for period of one (1) year from the date of retails
purchase by the original end user purchaser ('Warranty Period'). PLEASE NOTE: breaking security
label will void the warranty.
Terms and conditions
To see complete terms and conditions browse to
http://www.digitalhomesystems.com.au/images/stories/DHS_Terms_and_conditions.pdf
Quick Installation Guide
VISION Z-Wave
D/W Sensor 4in1
CATALOGUE NO:
DHS-SNS-DW-VIS-04
